Avalon XLS
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Charging
›
Notes
OEM System Circuits: Charging: Notes

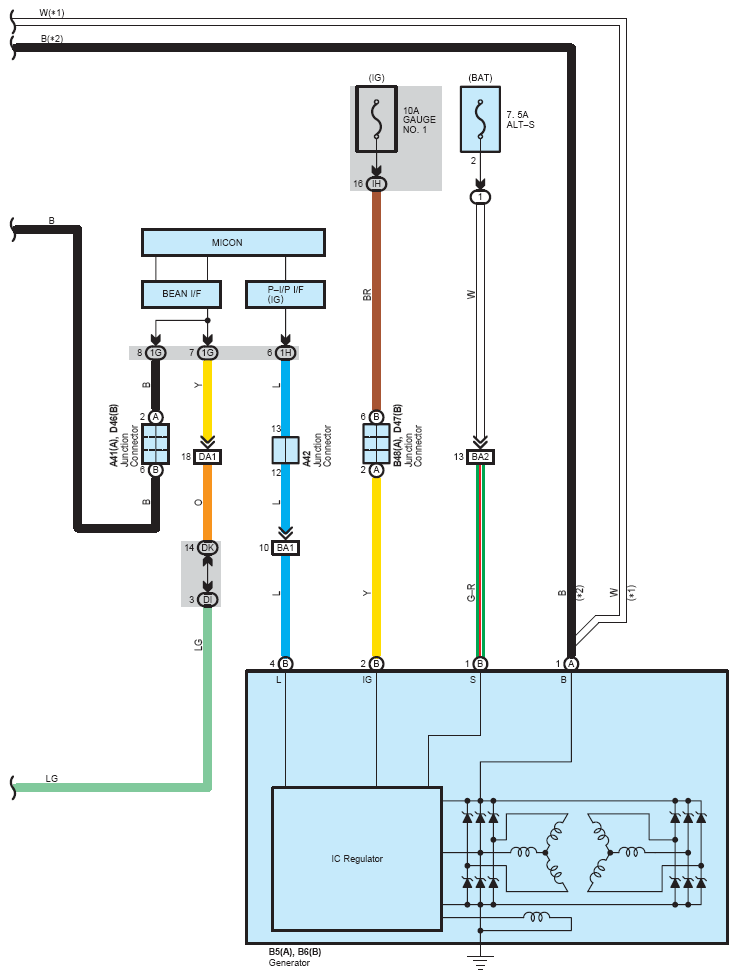

Fig 1: Charging System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

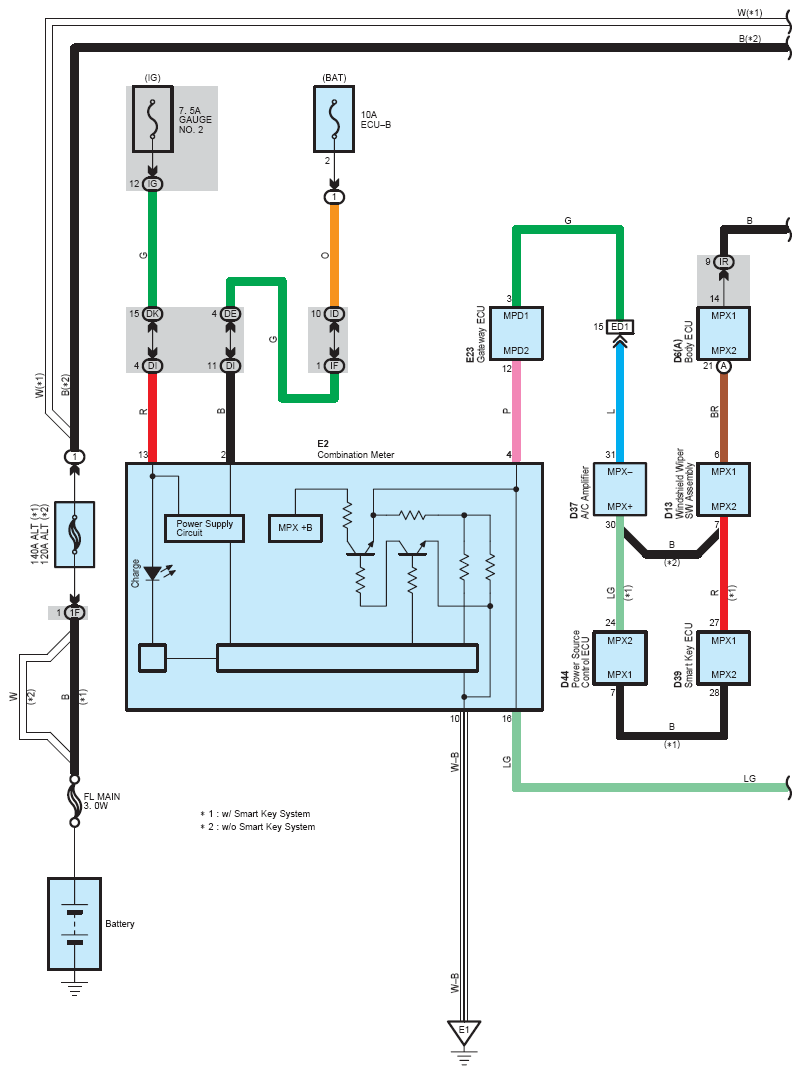

Fig 2: Charging System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
