Engine Immobiliser System without Smart Key System: Notes

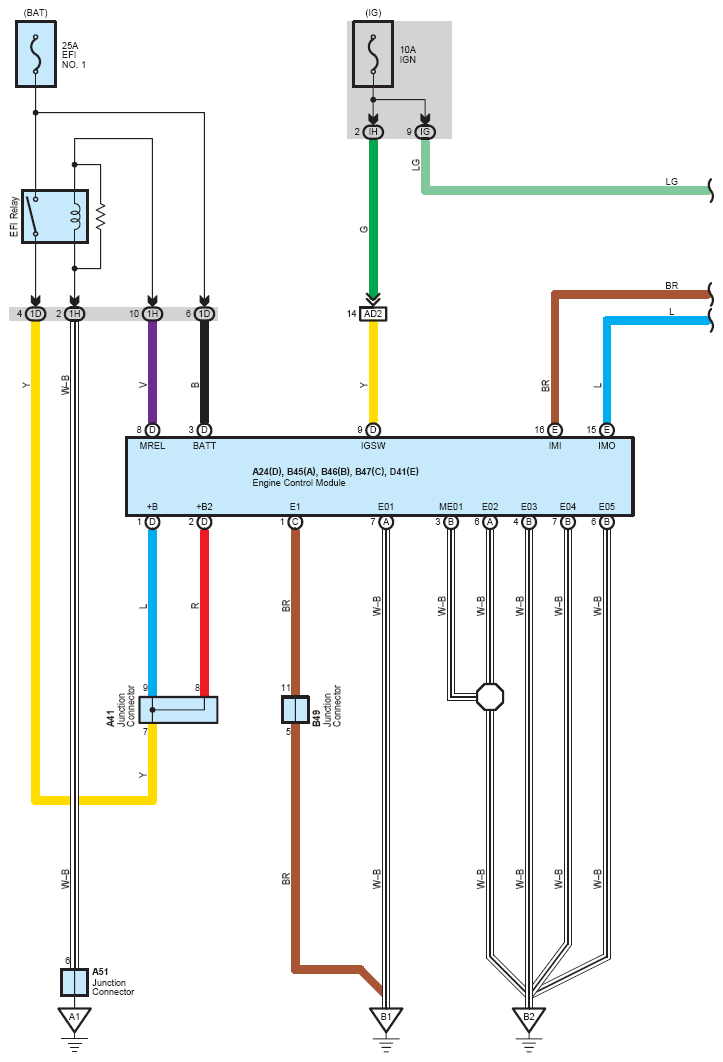

Fig 1: Engine Immobiliser (Without Smart Key) System Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

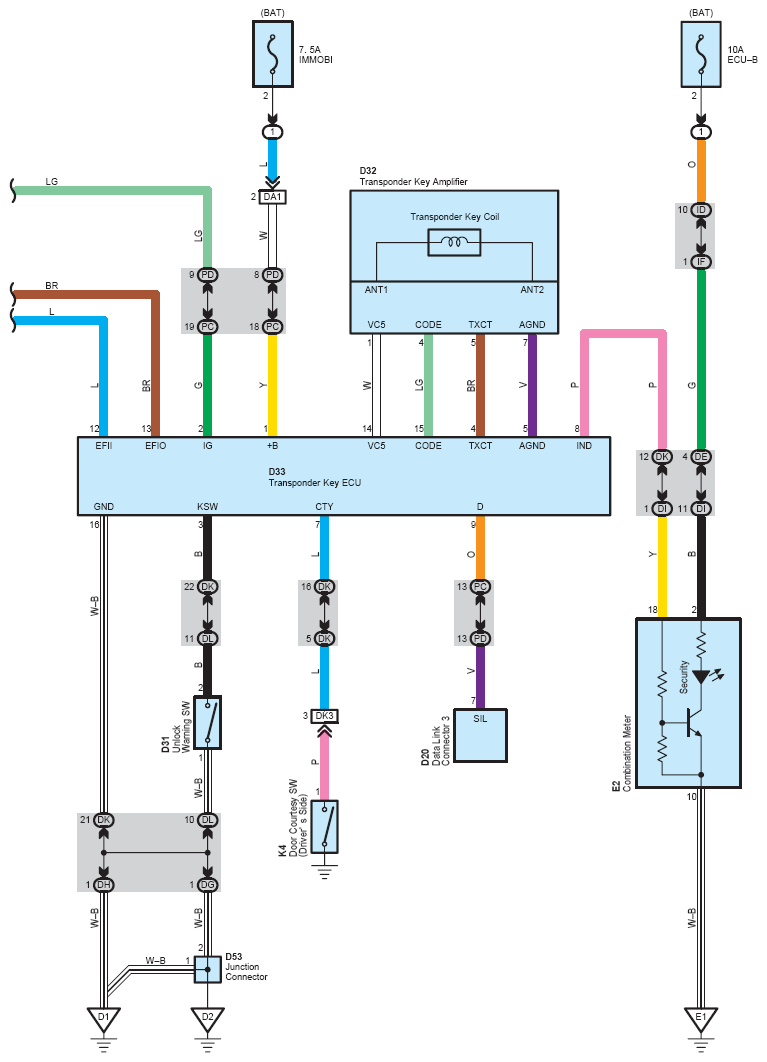

Fig 2: Engine Immobiliser (Without Smart Key) System Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
