Remote Control Mirror without Memory
›
Notes
Remote Control Mirror without Memory: Notes

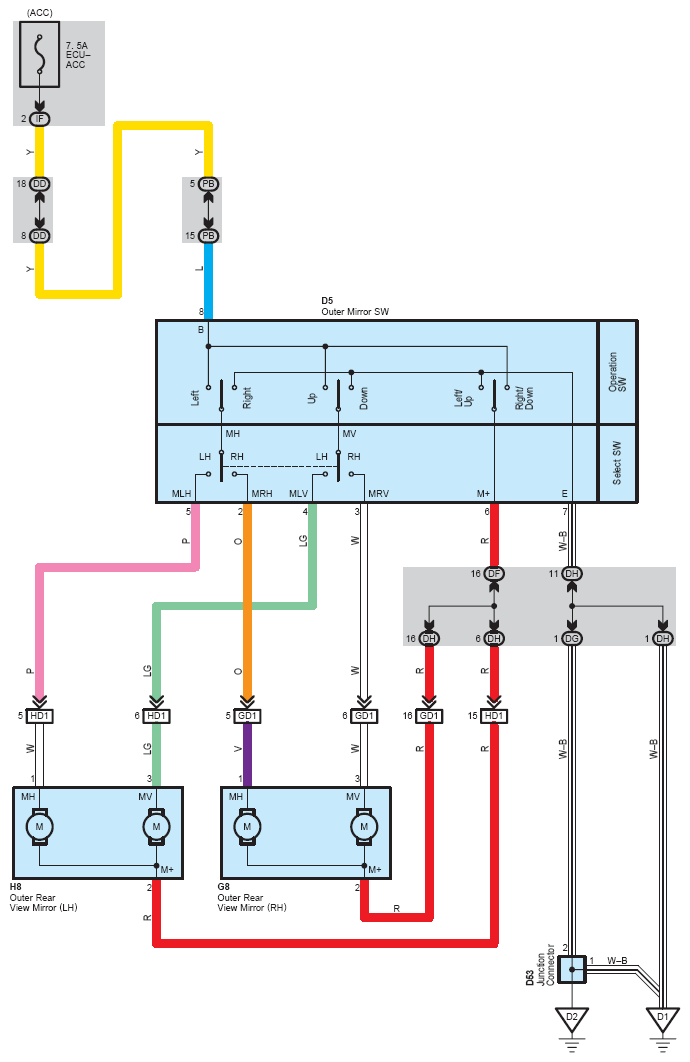

Fig 1: Remote Control Mirror System Wiring Diagram (Without Memory)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
