Combination Meter: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 1(See REMOVAL )
REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 2 (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PLATE (w/o Smart Key System)
1. Remove the instrument panel finish plate.

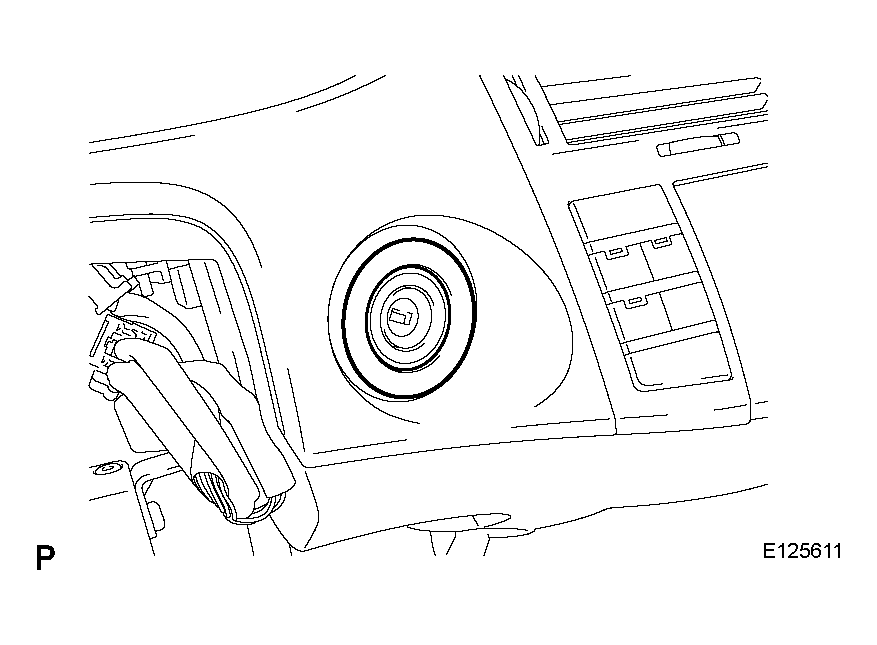

  Fig 1: Identifying Instrument Panel Finish Plate
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REMOVE INSTRUMENT PANEL SUB-ASSEMBLY

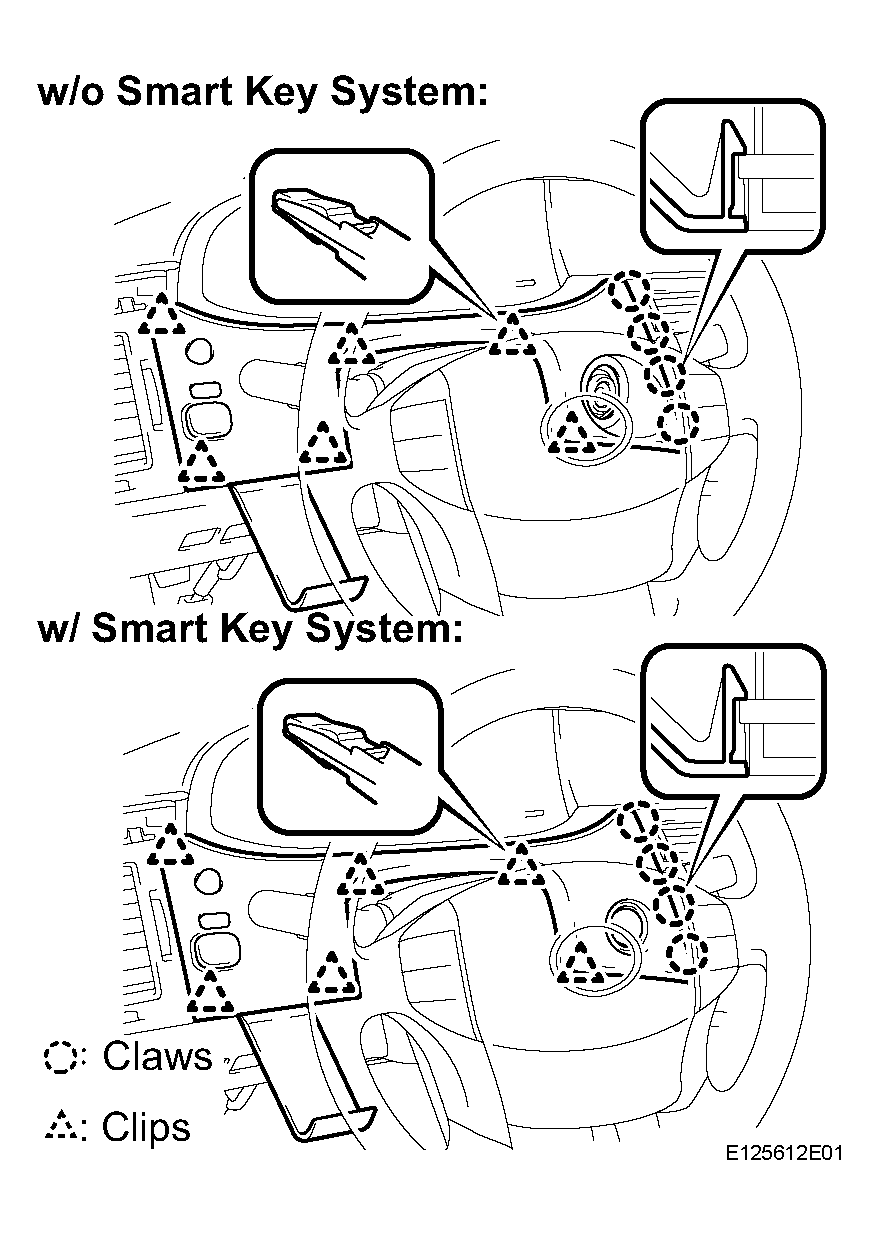

Fig 2: Disengaging Claws And Clips Of Instrument Panel Subassembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
1. Using a moulding remover, disengage the 4 claws and 6 clips then remove the instrument panel subassembly.
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Remove the 4 screws.

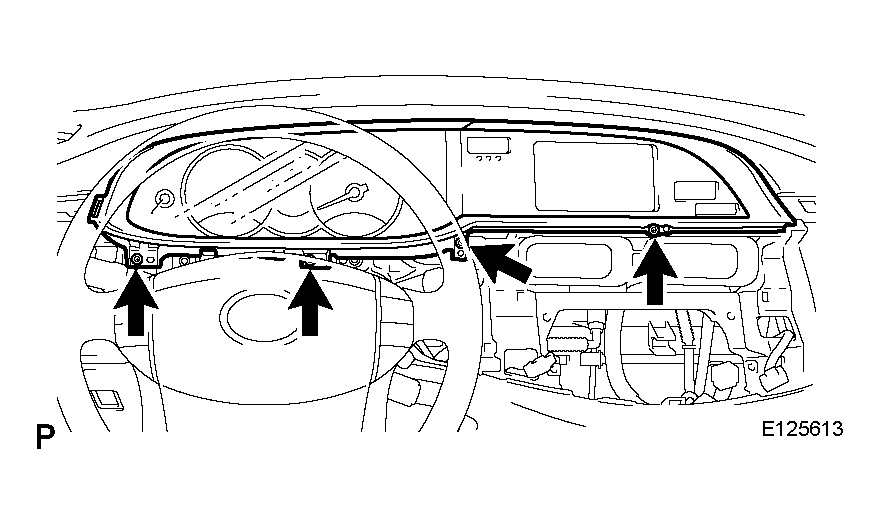

  Fig 3: Removing Instrument Cluster Finish Panel Sub-Assembly Screws
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Using a moulding remover, disengage the 5 clips and remove the instrument cluster finish panel subassembly.

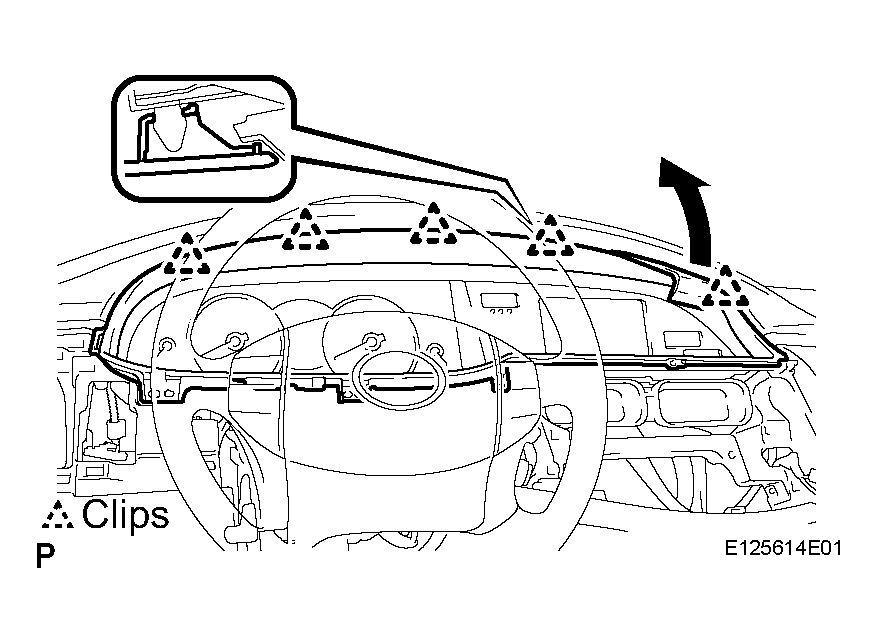

  Fig 4: Disengaging Clips Of Instrument Cluster Finish Panel Subassembly
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REMOVE COMBINATION METER ASSEMBLY
1. Remove the 4 screws.
2. Pull out combination meter assembly, then disconnect the connectors.

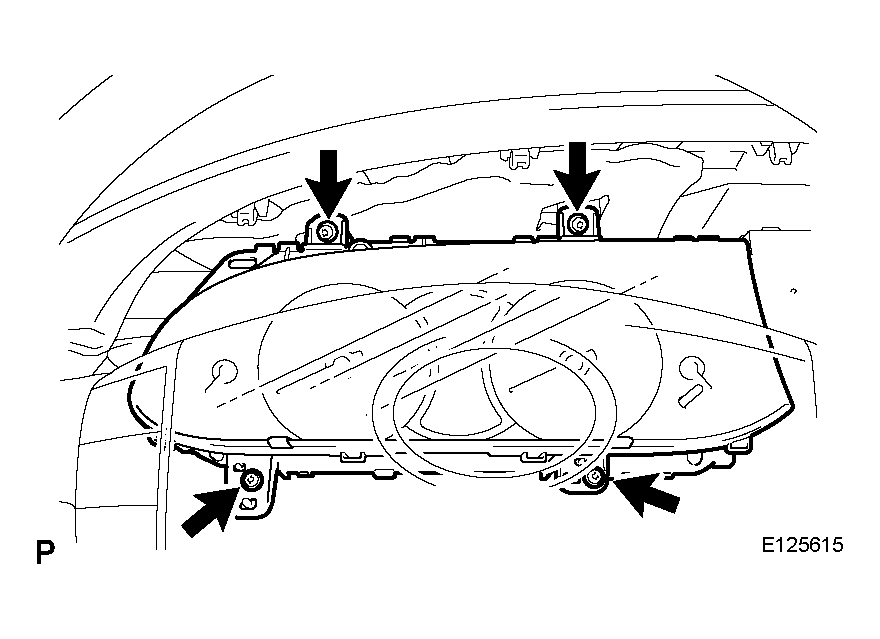

  Fig 5: Removing Combination Meter Assembly Screws
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
