ENGINE (w/ Smart Key System): Removal

PRECAUTION
HINT:

See PRECAUTION
DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE FRONT DOOR SCUFF PLATE LH (See REMOVAL )
REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH (See REMOVAL )
REMOVE INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO.1
REMOVE ENGINE SWITCH
1. Disconnect the engine switch connector.
2. Disengage the 2 clips and remove the switch.

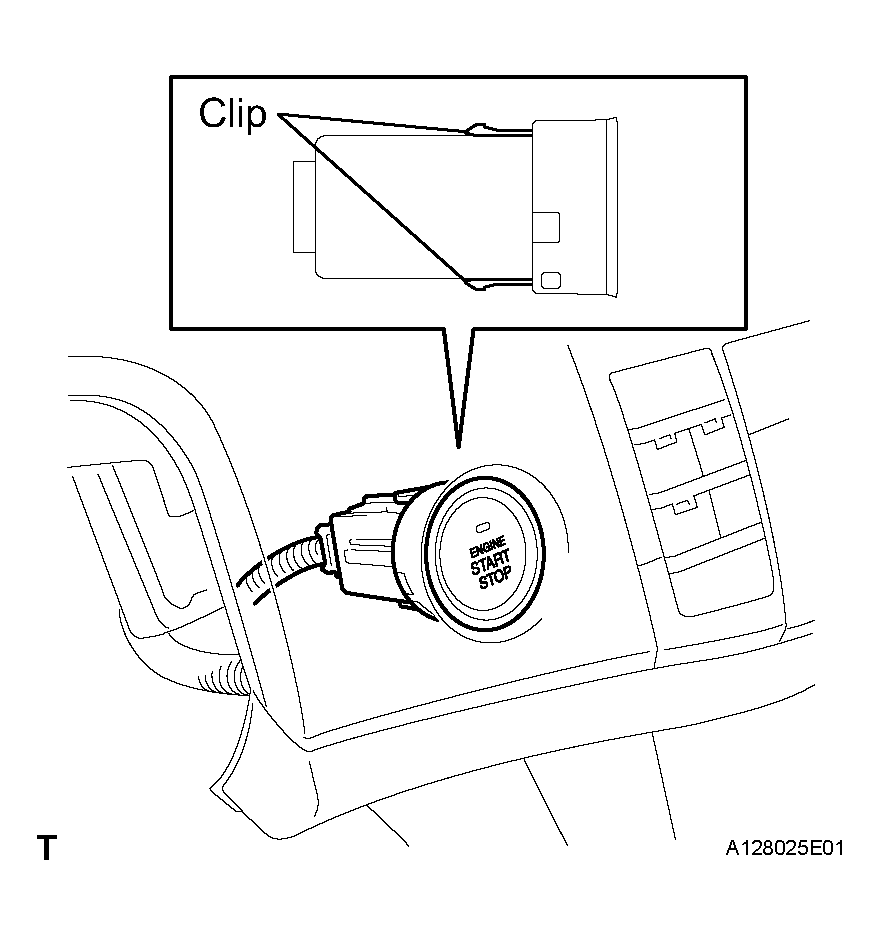

  Fig 1: Removing Engine Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
