Toyota
›
2006
›
Avalon XLS
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
SFI System
›
Active Control Engine Mount System
›
Wiring Diagram
Active Control Engine Mount System: Wiring Diagram

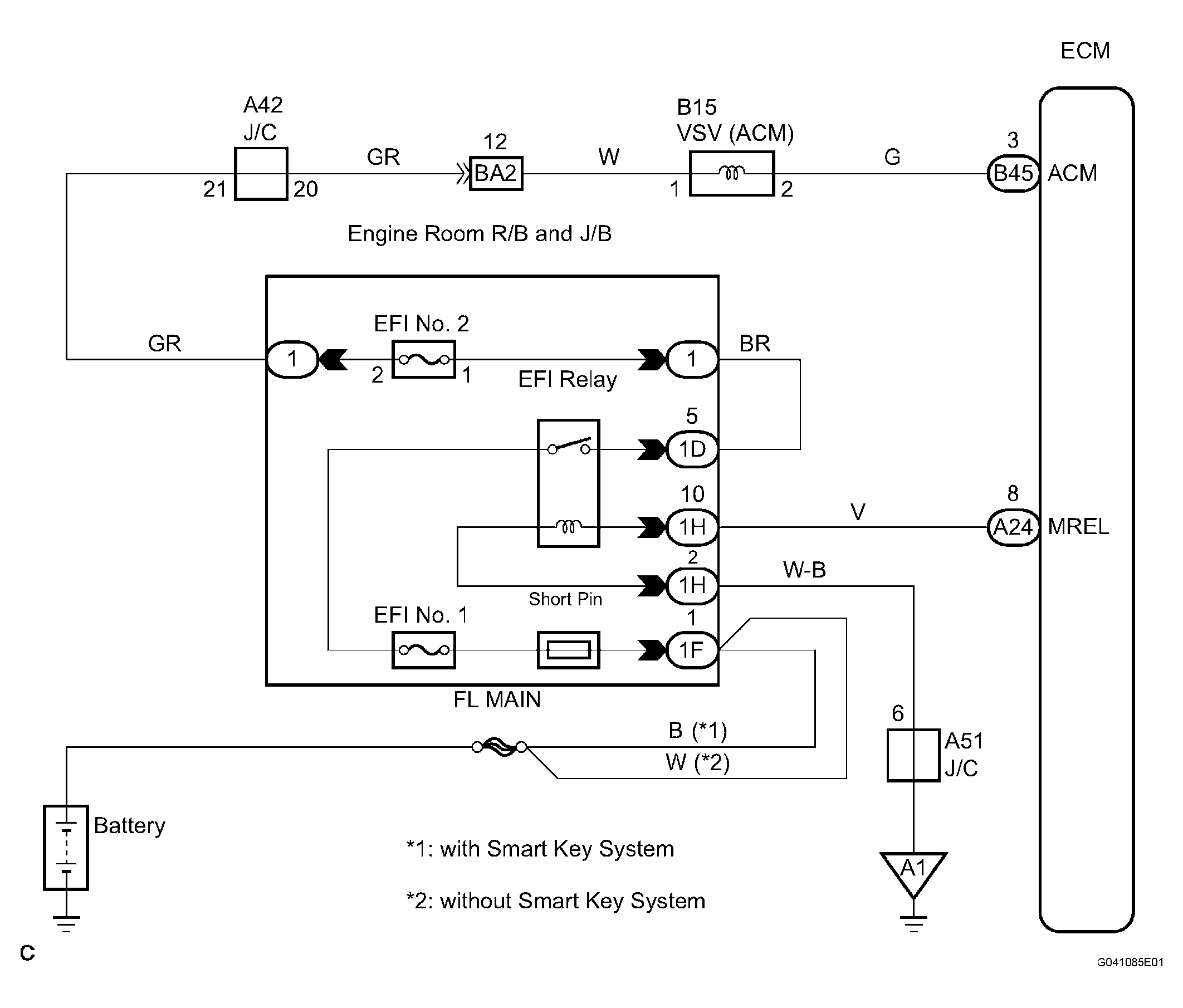

Fig 1: Active Control Engine Mount System Wiring Diagram
