Avalon XLS
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
SFI System
›
Air Intake Control Circuit
›
Wiring Diagram
Air Intake Control Circuit: Wiring Diagram

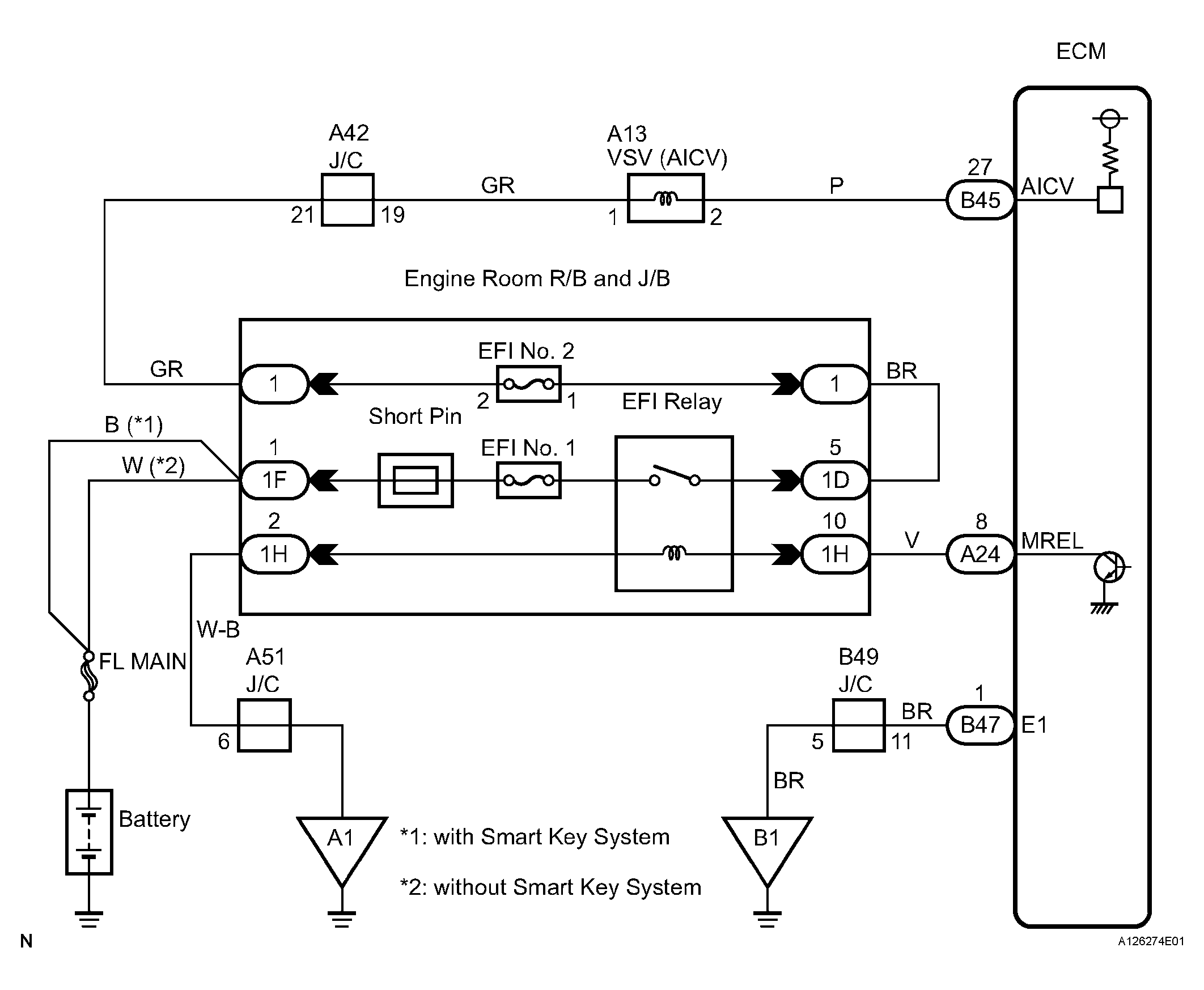

Fig 1: Air Intake Control Wiring Diagram
