Engine Ignition System
›
Ignition System
›
System Diagram
System Diagram

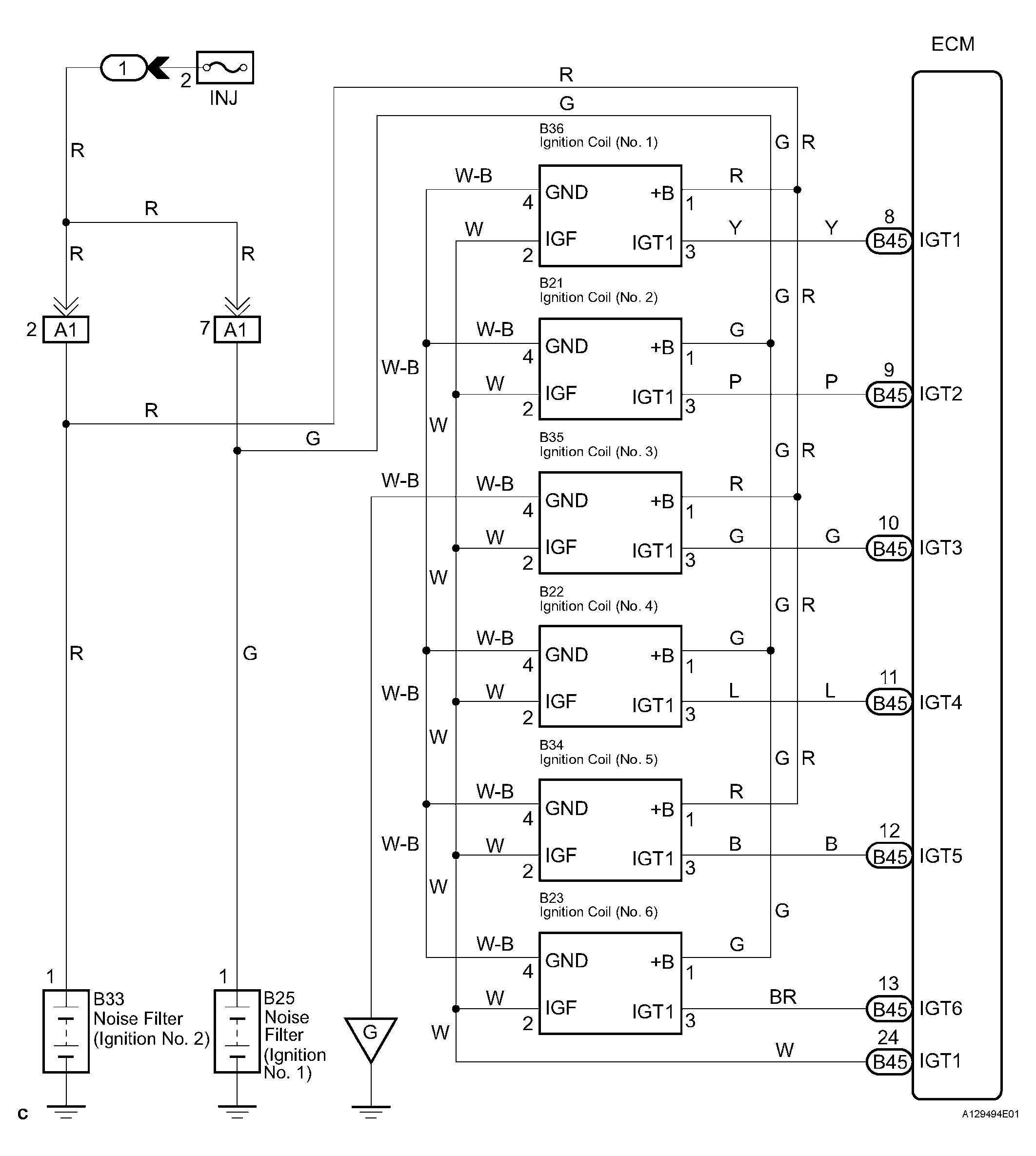

Fig 1: Ignition System-Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Ignition System-Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
