Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT STEREO COMPONENT AMPLIFIER ASSEMBLY

Disconnect the stereo component amplifier assembly S10 and S11 connectors.

Measure the resistance according to the values in the table below.

Resistance

STEREO COMPONENT AMPLIFIER ASSEMBLY RESISTANCE SPECIFIED CONDITION

Tester connection

Condition

Specified condition

GND (S10-16) - Body ground

Always

Below 1 Ω

GND2 ⁽¹⁾, E ⁽²⁾ (S10-15) - Body ground

Always

Below 1 Ω

⁽¹⁾

Coupe

⁽²⁾	Convertible

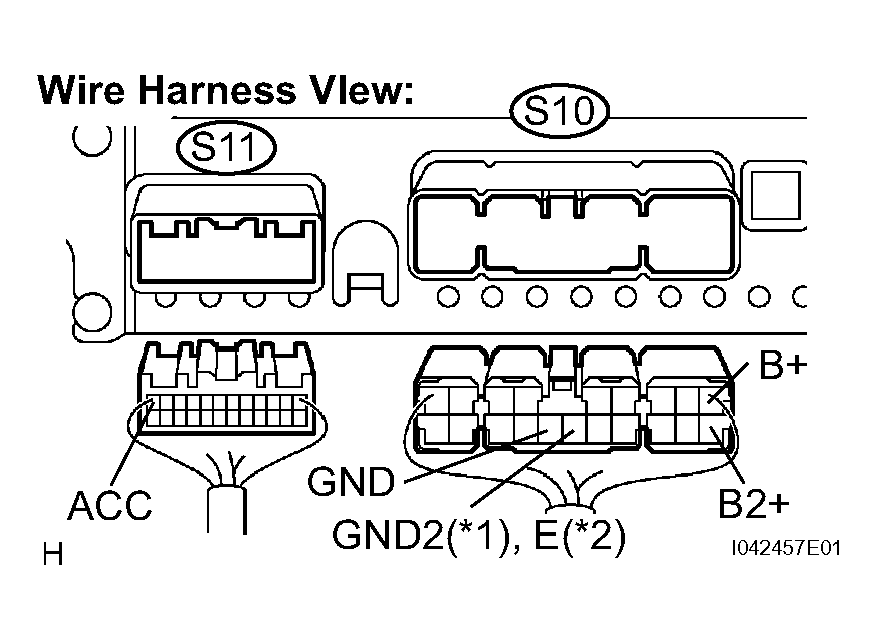

Fig 1: Identifying Stereo Component Amplifier Assembly S10 And S11 Connector Terminals

Measure the voltage according to the values in the table below.

Voltage

STEREO COMPONENT AMPLIFIER ASSEMBLY VOLTAGE SPECIFIED CONDITION

Tester connection	Condition	Specified condition
B+ (S10-1) - GND (S10-16)	Always	10 to 14 V
B2+ (S10-10) - GND (S10-16)	Always	10 to 14 V
ACC (S11-12) - GND (S10-16)	Ignition SW ACC	10 to 14 V

OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (STEREO COMPONENT AMPLIFIER - BATTERY OR BODY GROUND)

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
