Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT RADIO AND NAVIGATION ASSEMBLY

Disconnect the radio and navigation assembly connector R5.

Measure the voltage according to the value(s) in the table below.

Standard voltage

RADIO AND NAVIGATION ASSEMBLY CONNECTOR RESISTANCE SPECIFIED CONDITION

Tester connection	Condition	Specified condition
REV - Body ground	Ignition switch is turned to ON position. Shift lever is moved to R position.	10 to 14 V
REV - Body ground	Ignition switch is turned to ON position. Shift lever is moved to any position except R.	Below 1 V

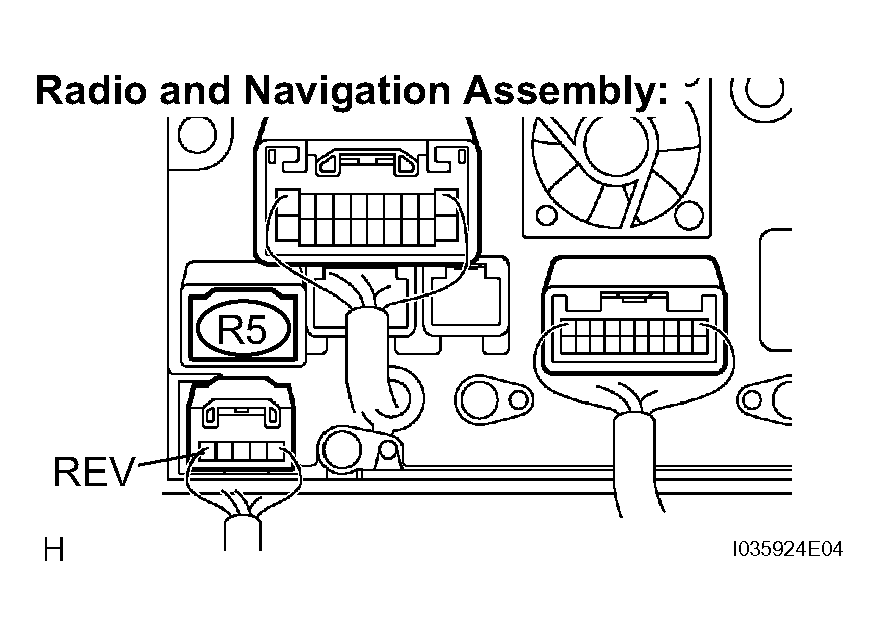

Fig 1: Identifying Radio And Navigation Assembly Terminal REV

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE RADIO AND NAVIGATION ASSEMBLY

NG: GO TO NEXT STEP

CHECK HARNESS AND CONNECTOR (RADIO AND NAVIGATION ASSEMBLY - PARK/NEUTRAL POSITION SWITCH)

Disconnect the connectors from the radio and navigation assembly R5 and park/neutral position switch assembly A3.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TERMINALS RESISTANCE SPECIFICATION

Tester connection	Condition	Specified condition
REV - A3-1	Always	Below 1 Ω
REV - Body ground	Always	10 kΩ or higher

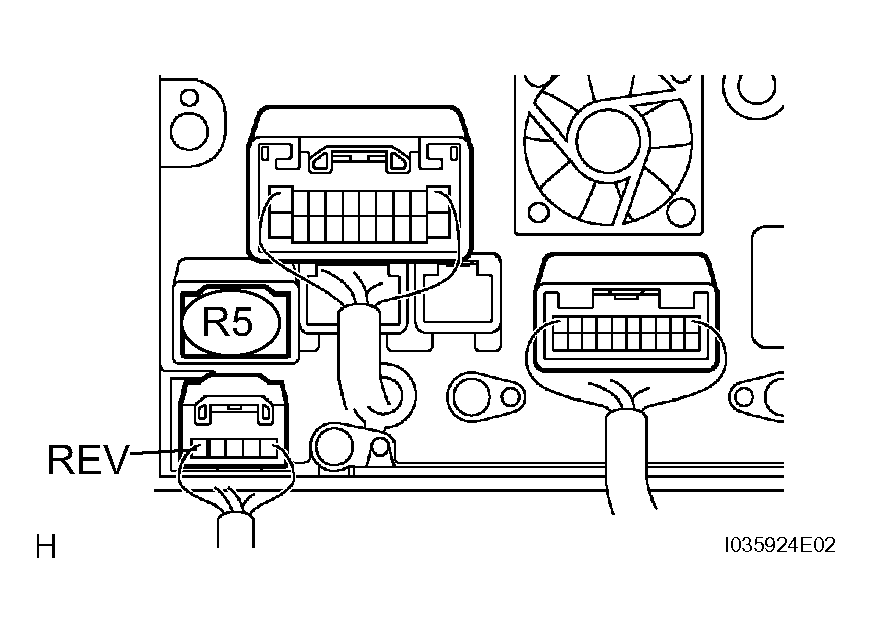

Fig 2: Identifying Connectors From Radio And Navigation Assembly R5

Fig 3: Identifying Park/Neutral Position Switch Assembly A3 Connector

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE RADIO AND NAVIGATION ASSEMBLY
