How To Proceed With Troubleshooting

HINT:

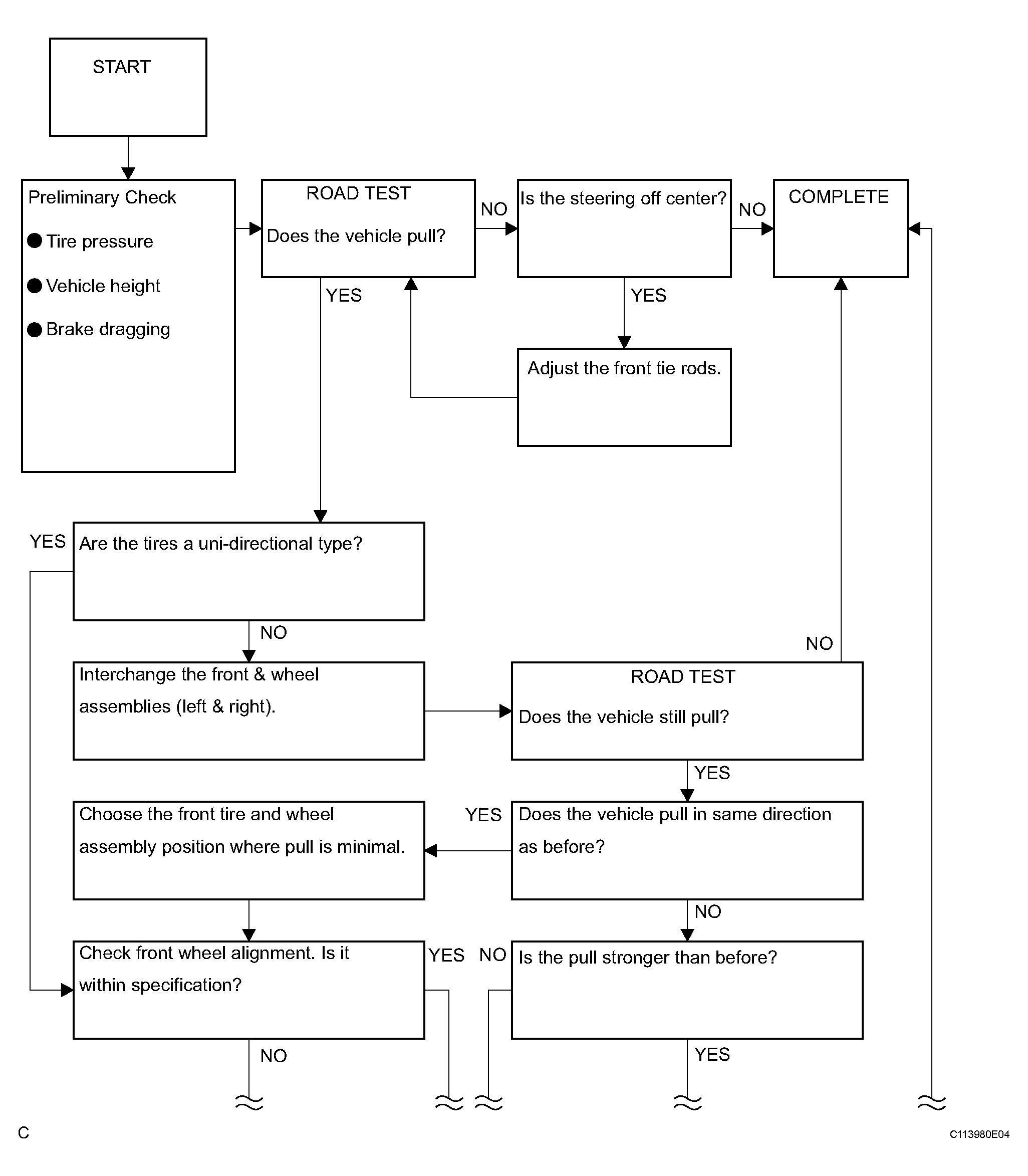

This is a flow chart for vehicle pull.

Fig 1: Suspension System Communication Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

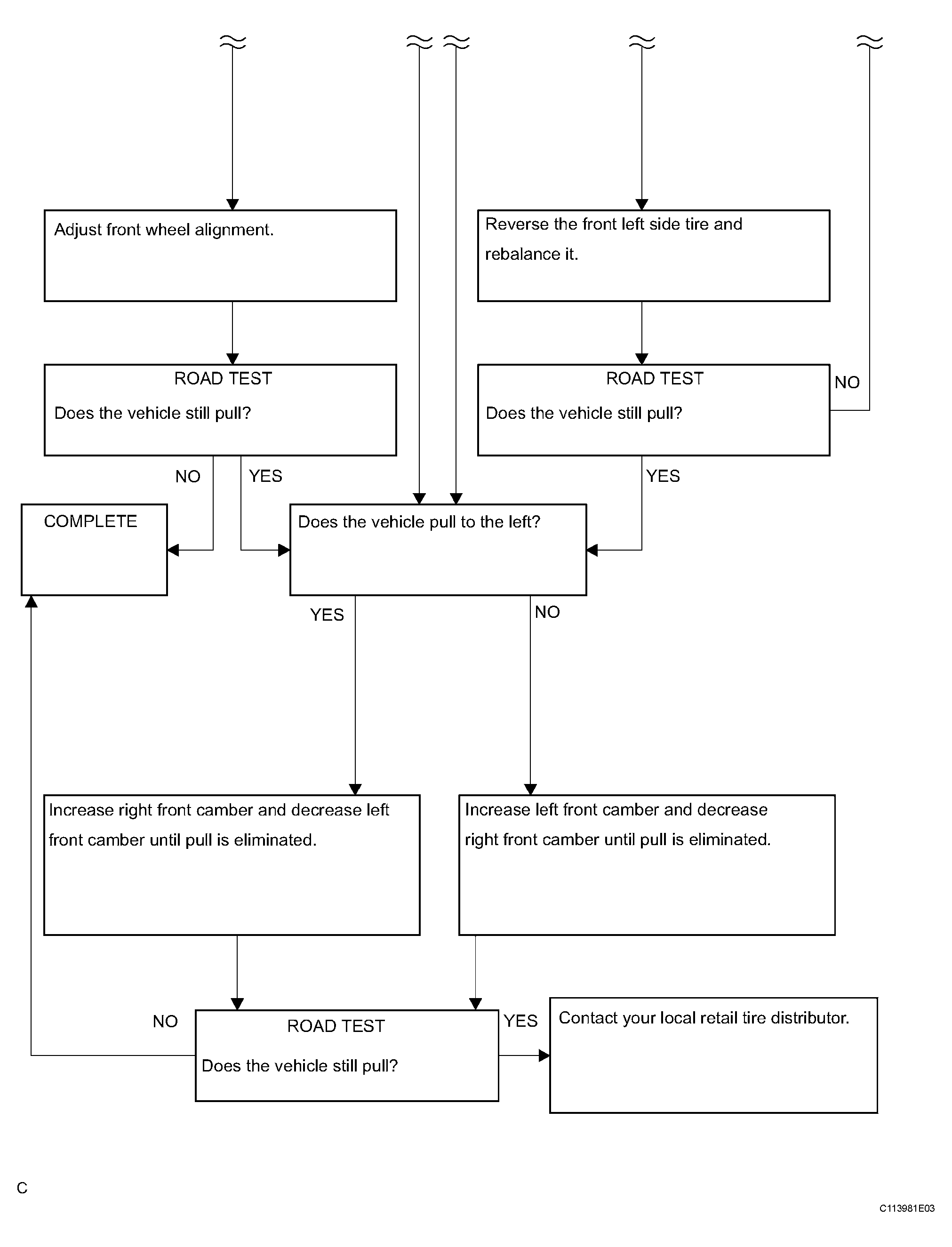

Fig 2: Suspension System Communication Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
