Automatic Transaxle Unit: Components

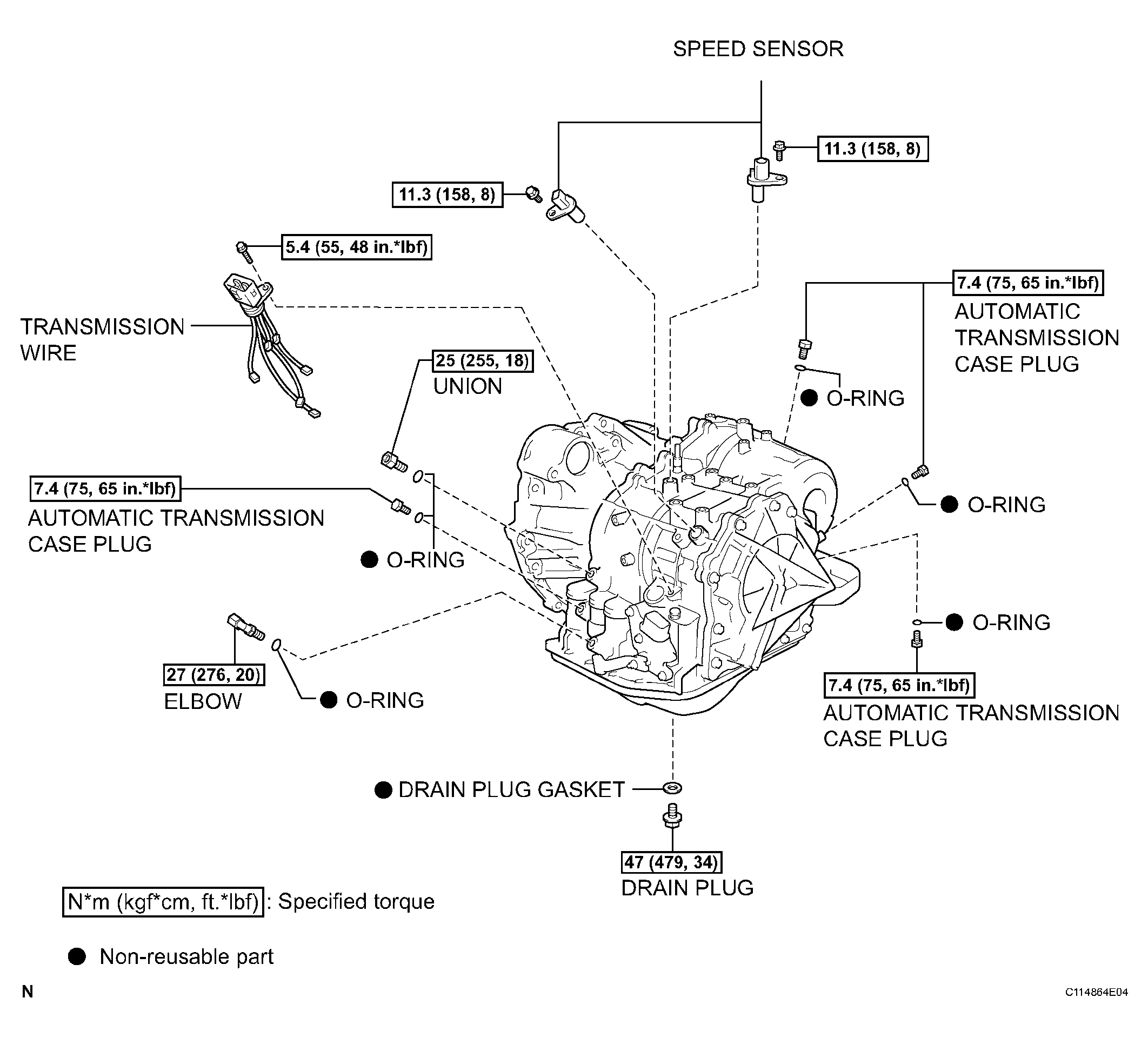

Fig 1: Exploded View Of Automatic Transaxle Unit Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

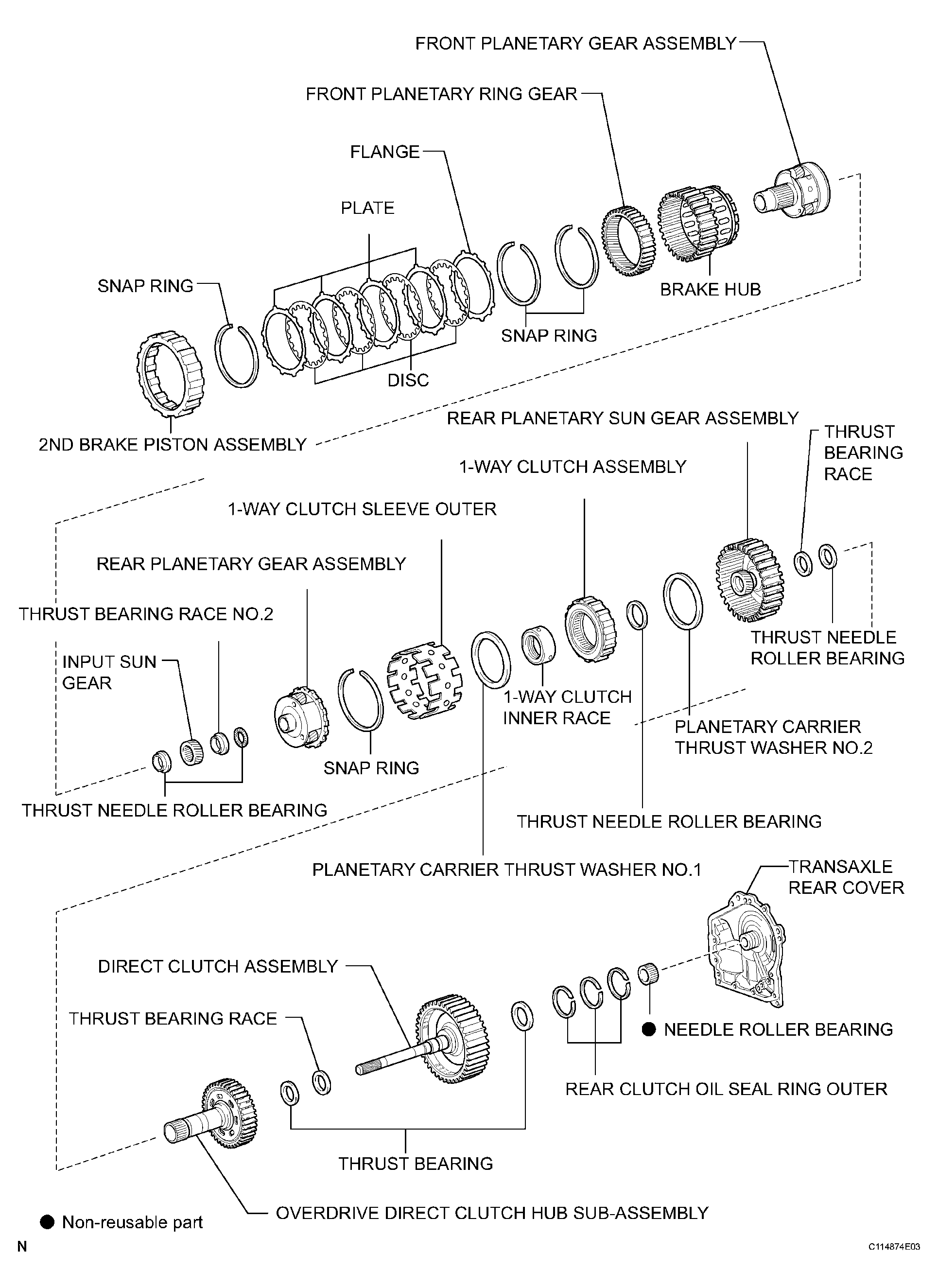

Fig 2: Exploded View Of Automatic Transaxle Unit Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

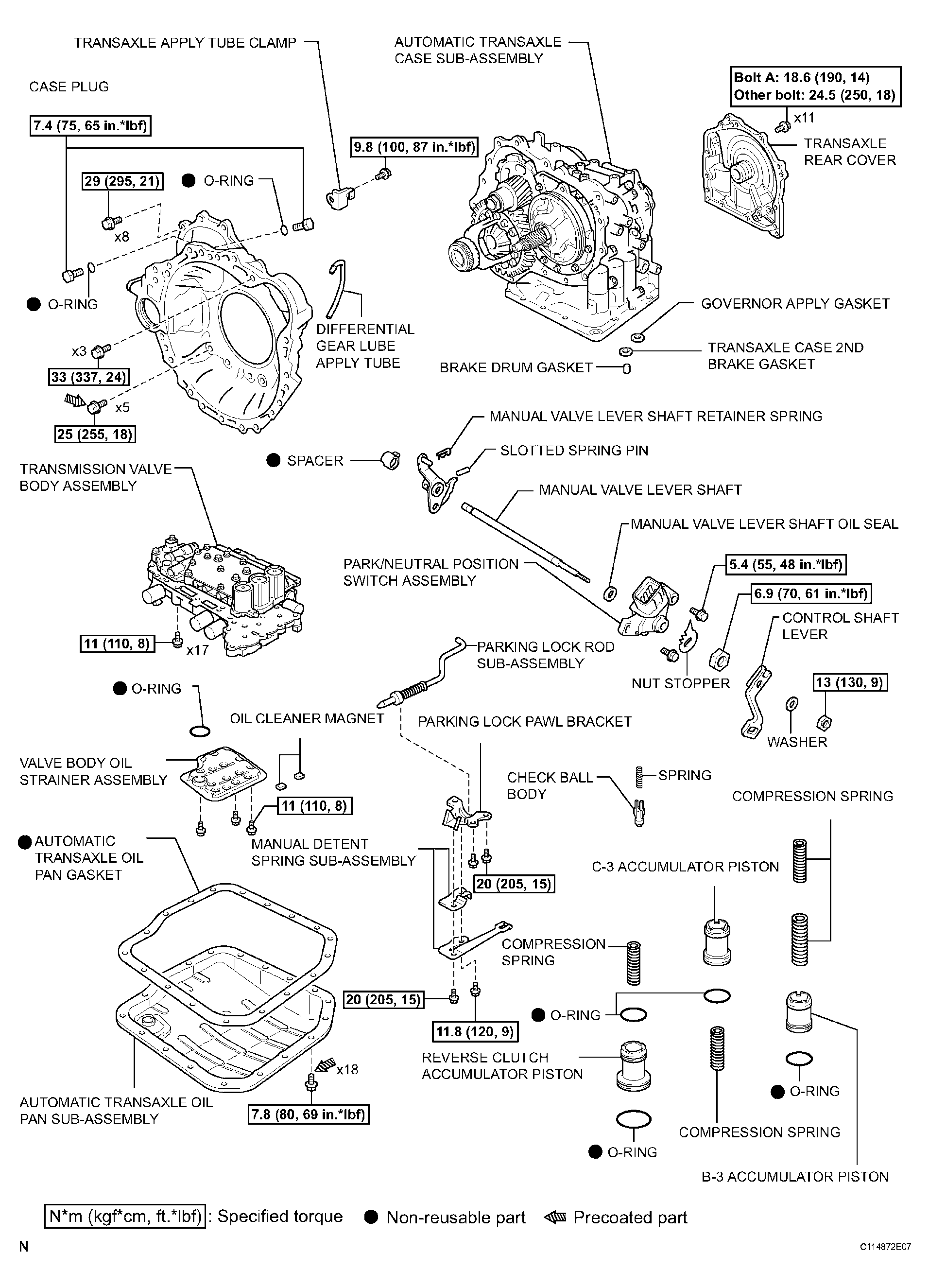

Fig 3: Exploded View Of Automatic Transaxle Unit Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

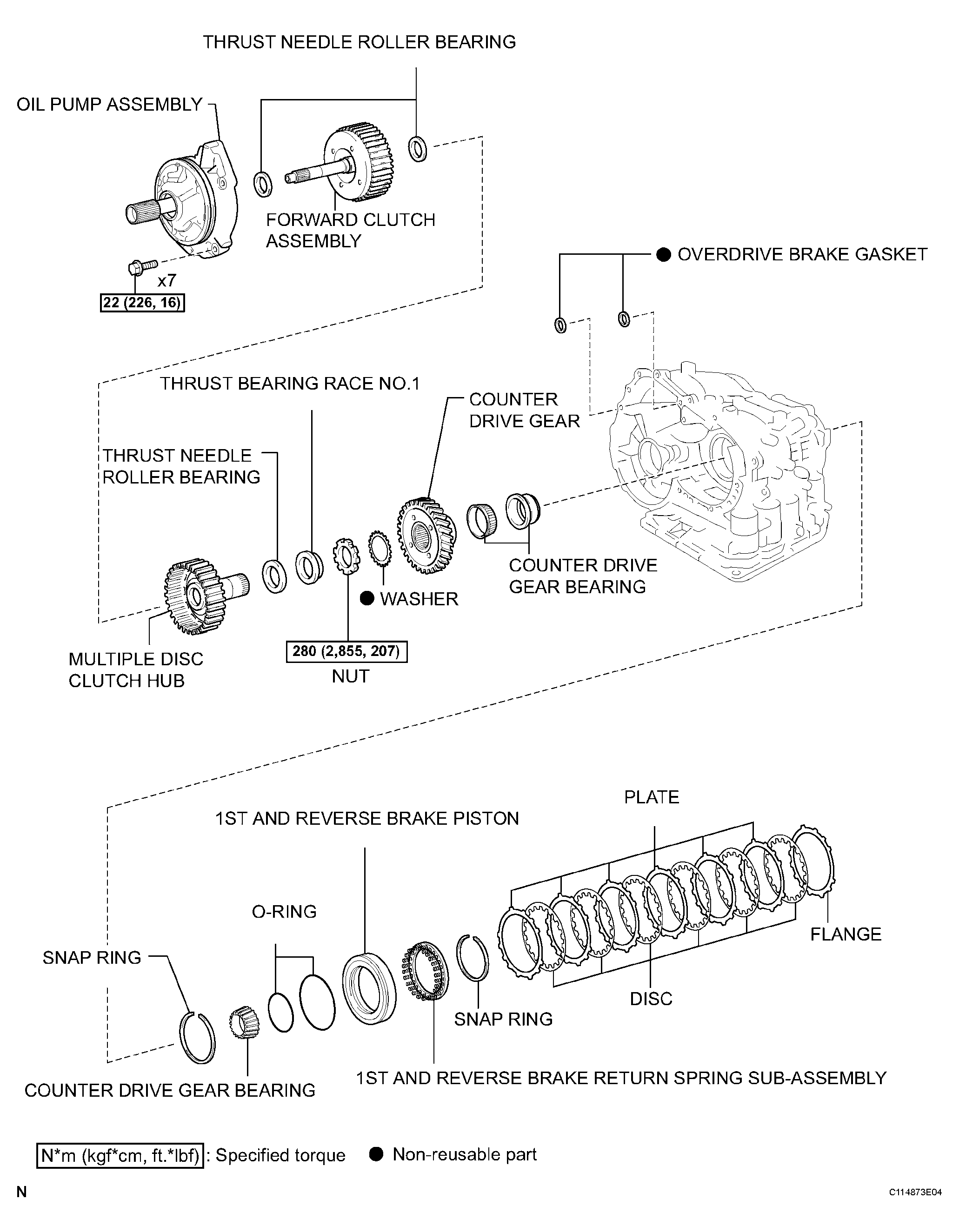

Fig 4: Exploded View Of Automatic Transaxle Unit Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

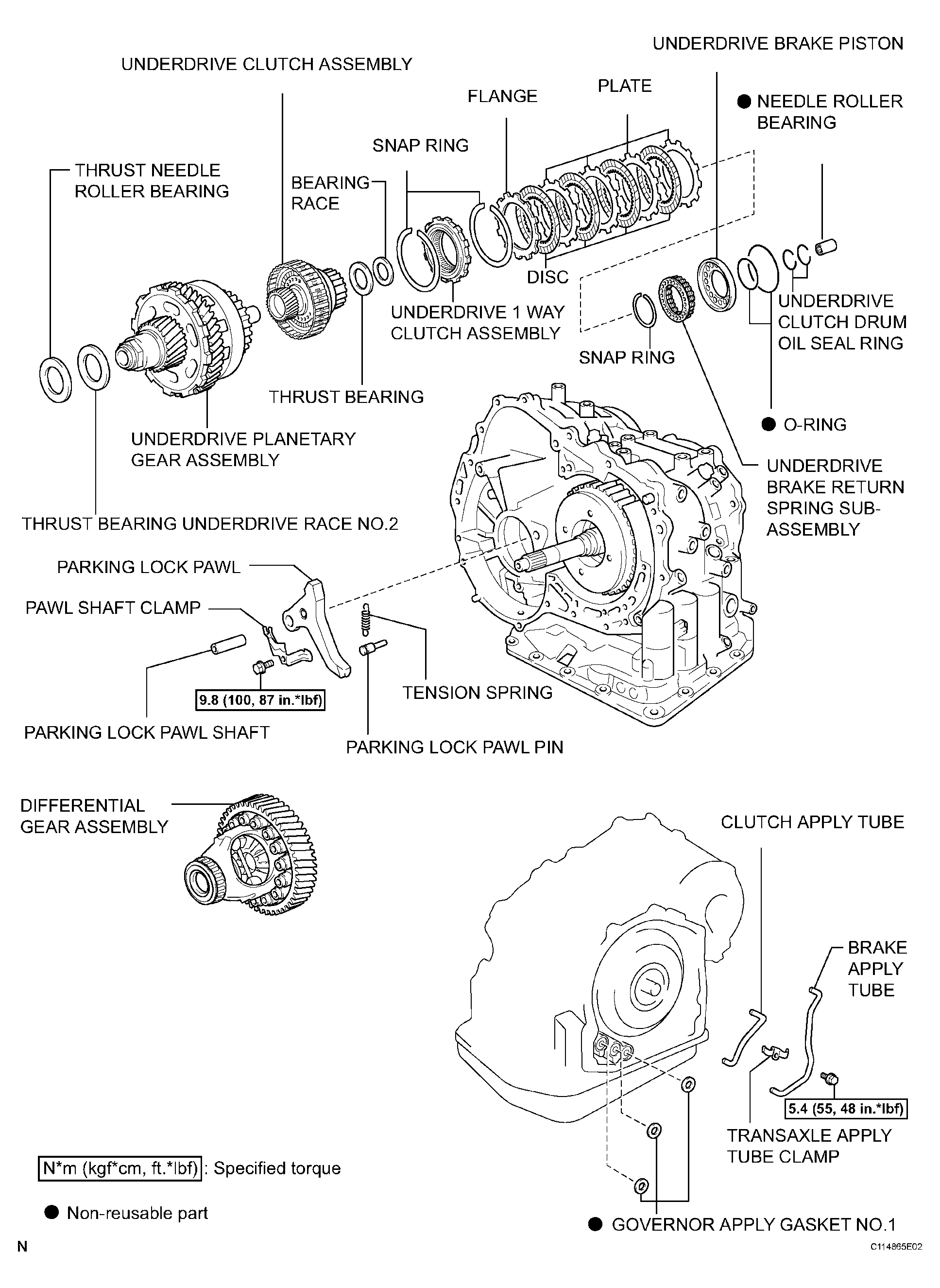

Fig 5: Exploded View Of Automatic Transaxle Unit Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
