Automatic Transmission - U151E
›
Differential Case
›
Components
Differential Case: Components

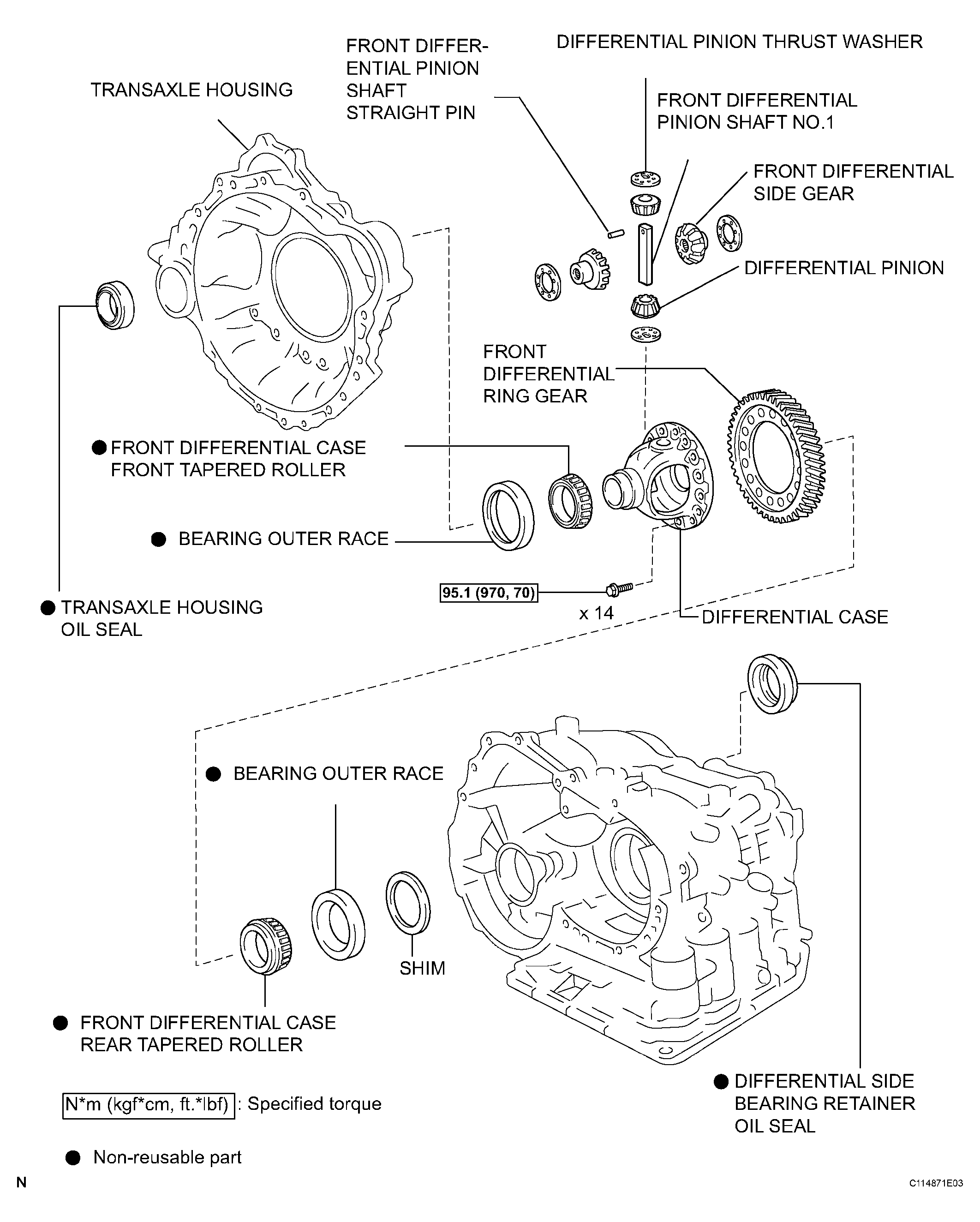

Fig 1: Exploded View Of Differential Case Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
