Speed Sensor: Installation

INSTALL SPEED SENSOR (NC SENSOR)

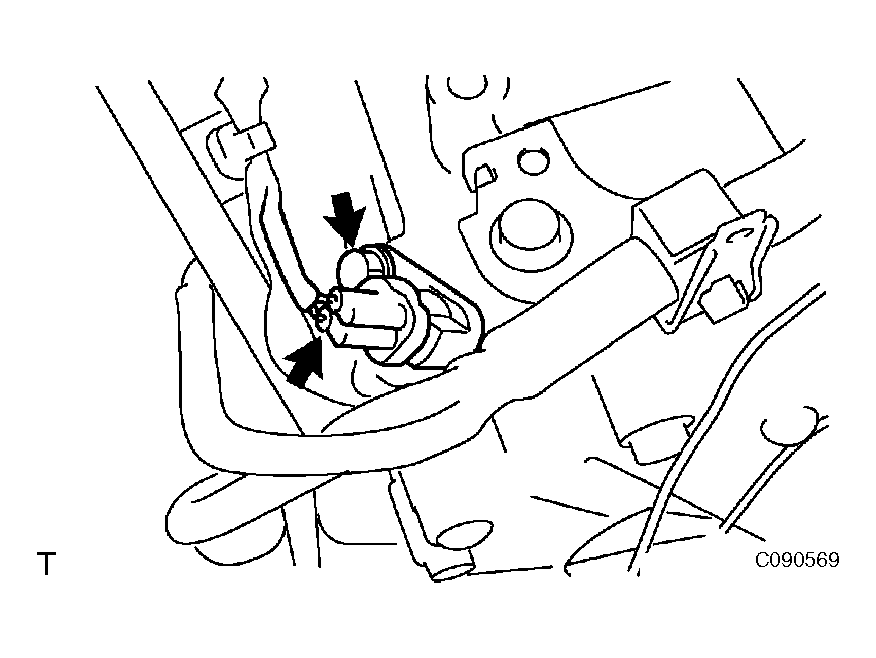

Fig 1: Locating Speed Sensor (NC Sensor)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Coat the O-ring with ATF.
2. Install the speed sensor with the bolt.
  Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)

  HINT:

  Make sure to install the same manufacturer's sensor.
3. Connect the speed sensor connector.
INSTALL SPEED SENSOR (NT SENSOR)

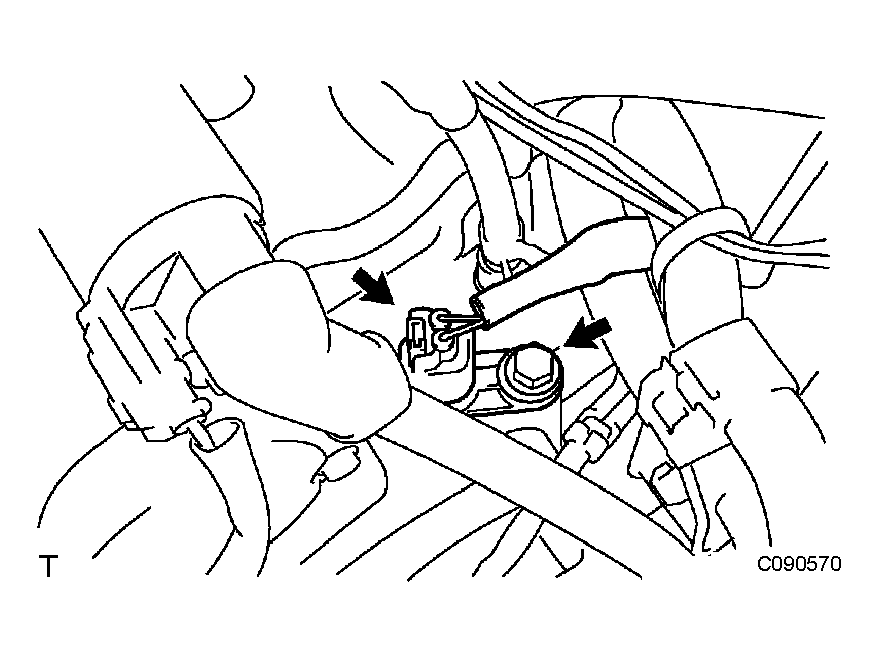

Fig 2: Locating Speed Sensor Connector And Mounting Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Coat the O-ring with ATF.
2. Install the speed sensor with the bolt.
  Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)

  HINT:

  Make sure to install the same manufacturer's sensor.
3. Connect the speed sensor connector.
INSTALL AIR CLEANER ASSEMBLY
HINT:

(See step 59 under INSTALLATION )
INSTALL BATTERY
PERFORM INITIALIZATION
HINT:

Some systems need initialization when disconnecting the cable from the negative battery terminal (See AUTOMATIC TRANSAXLE SYSTEM ).
