Transmission Control Cable Assembly: Components

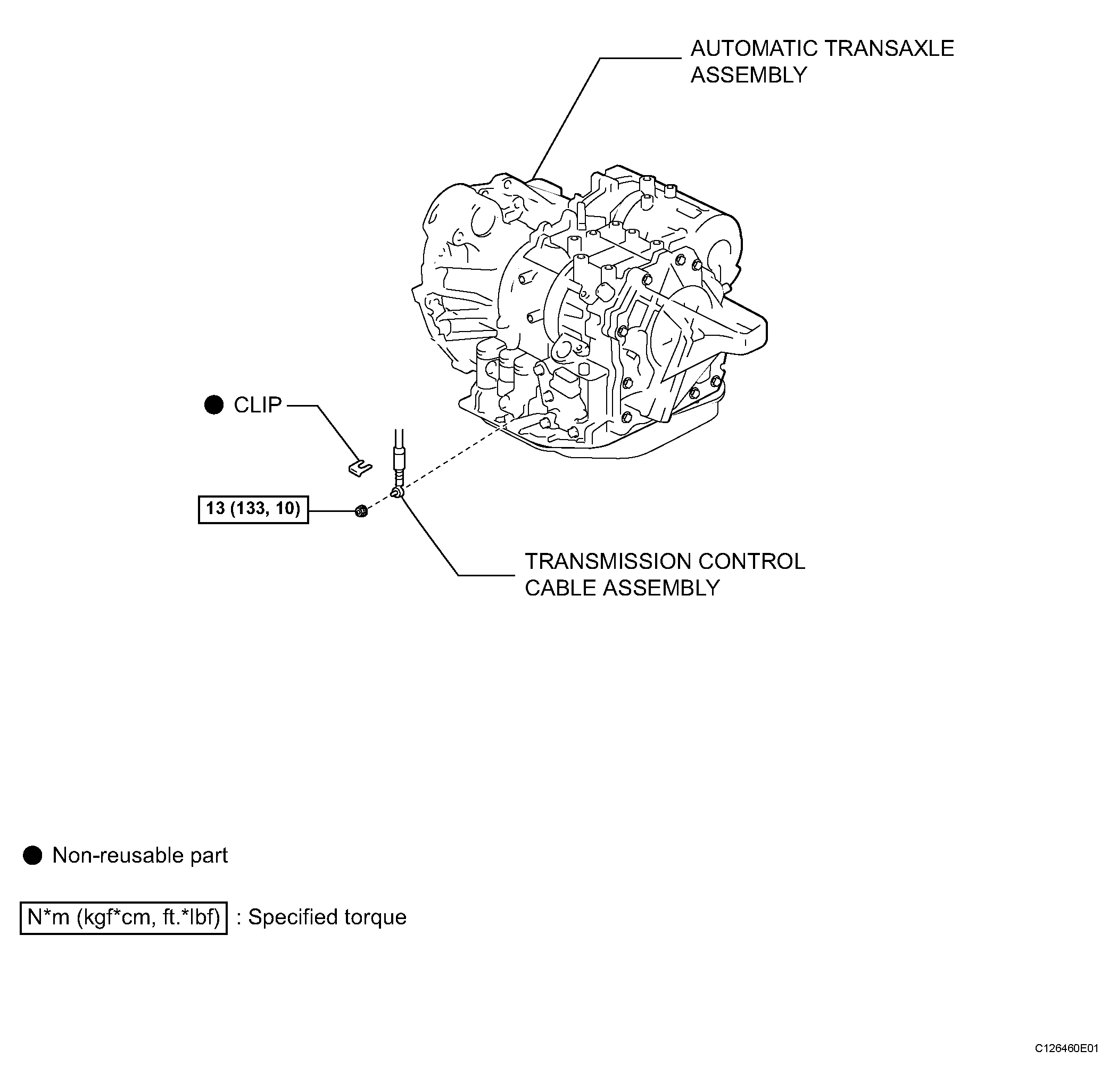

Fig 1: Exploded View Of Transmission Control Cable Assembly Components (1 Of 2)
G04377478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

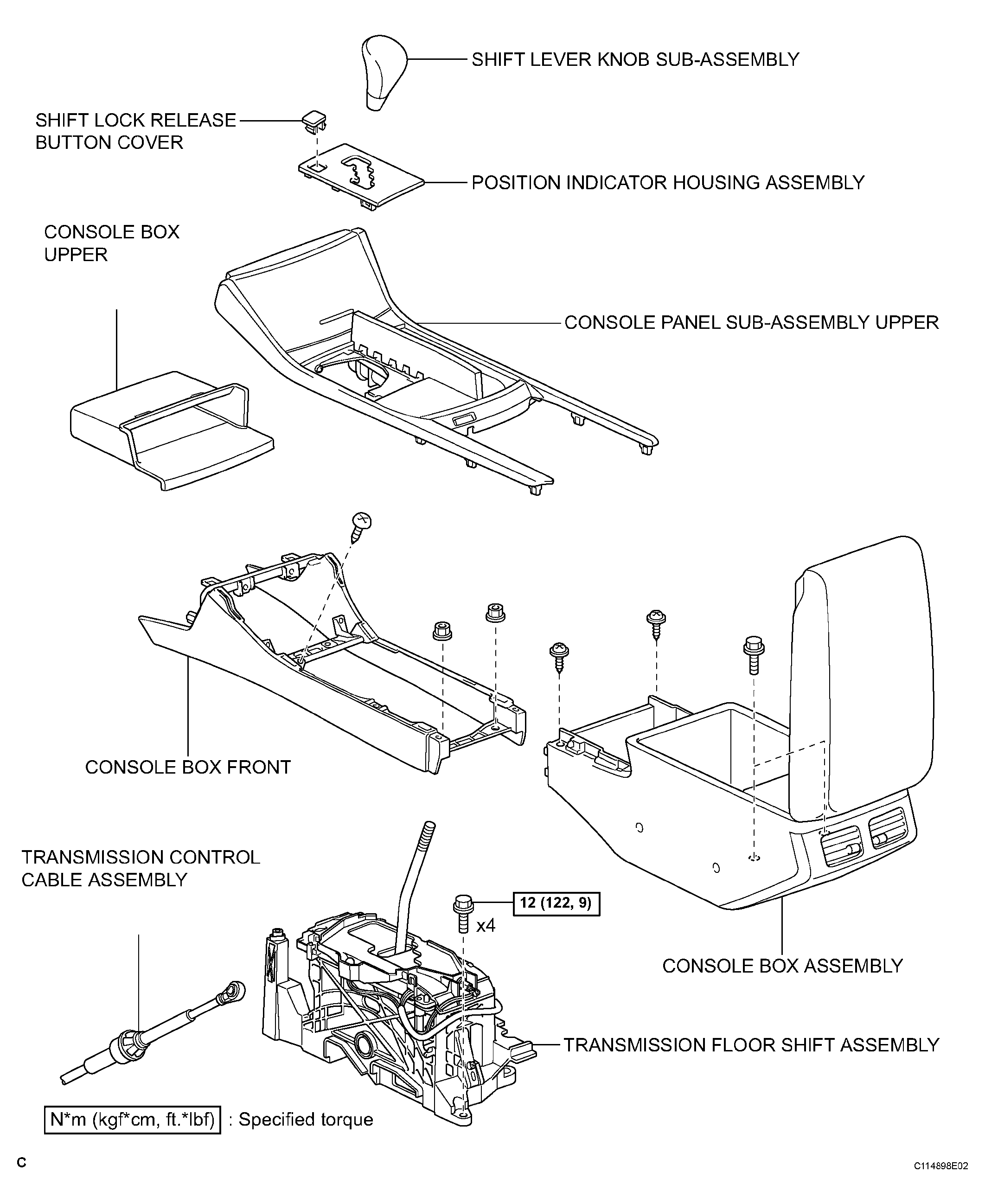

Fig 2: Exploded View Of Transmission Control Cable Assembly Components (2 Of 2)
G04377479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
