Transmission Control Cable Assembly: Installation

INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
1. Install the shift cable grommet retainer No. 2 to the floor shift cable.
2. Put in the control cable to the body.
3. Install the floor shift cable as shown in Fig 1.
  HINT:
  - Install it with the uneven surface facing up.
  - Securely engage the claws.

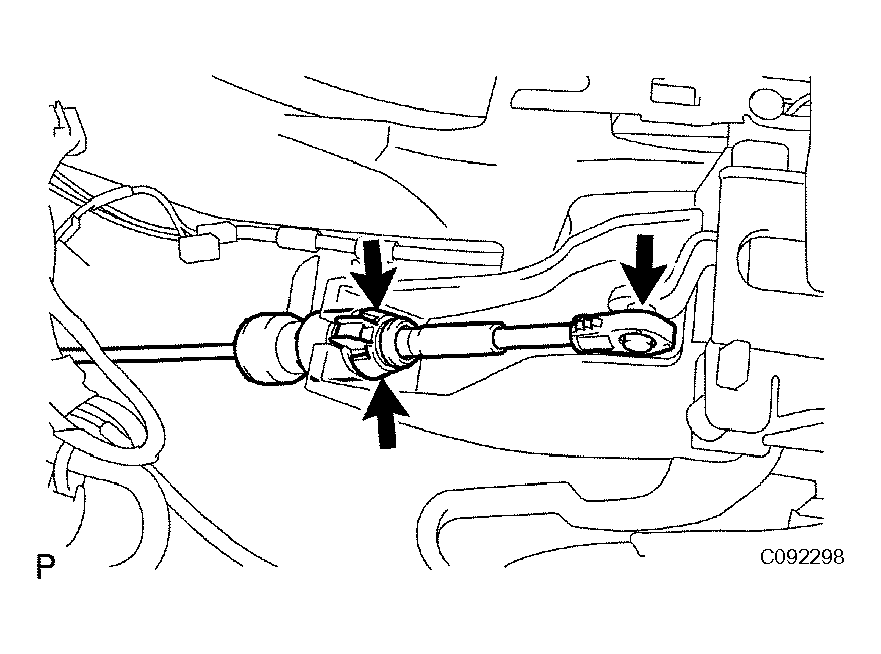

    Fig 1: Locating Floor Shift Cable Connection Points
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the control cable to the control cable clamp.

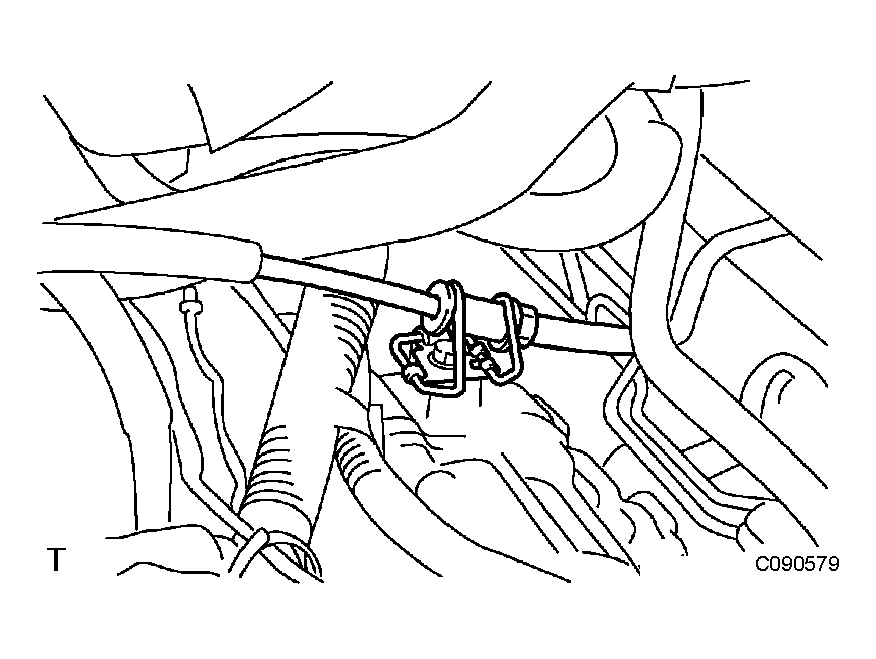

  Fig 2: Connecting Control Cable To Control Cable Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Temporarily install the transmission control cable assembly to the control shaft lever with the nut.

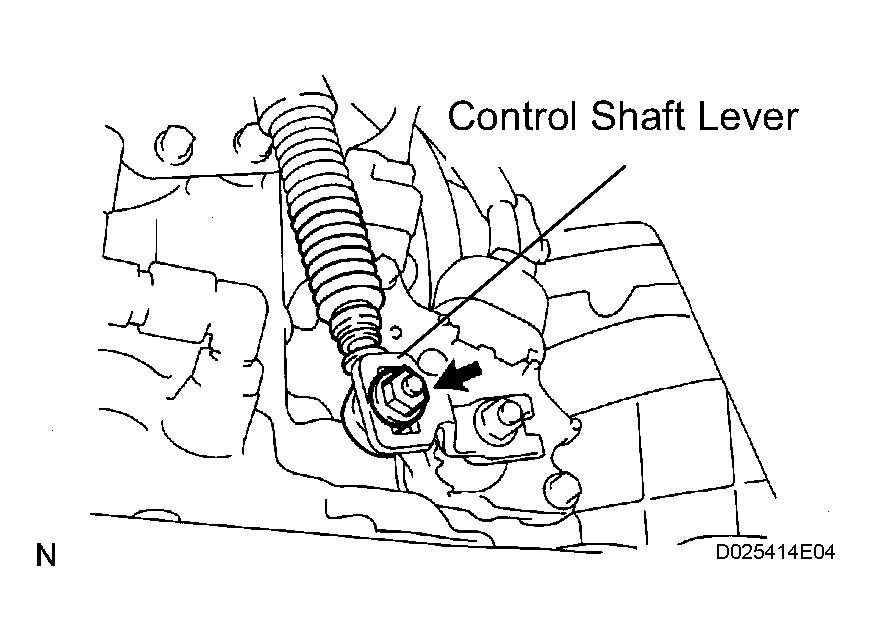

  Fig 3: Installing Transmission Control Cable Assembly To Control Shaft Lever With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the transmission control cable assembly with a new clip to the bracket.

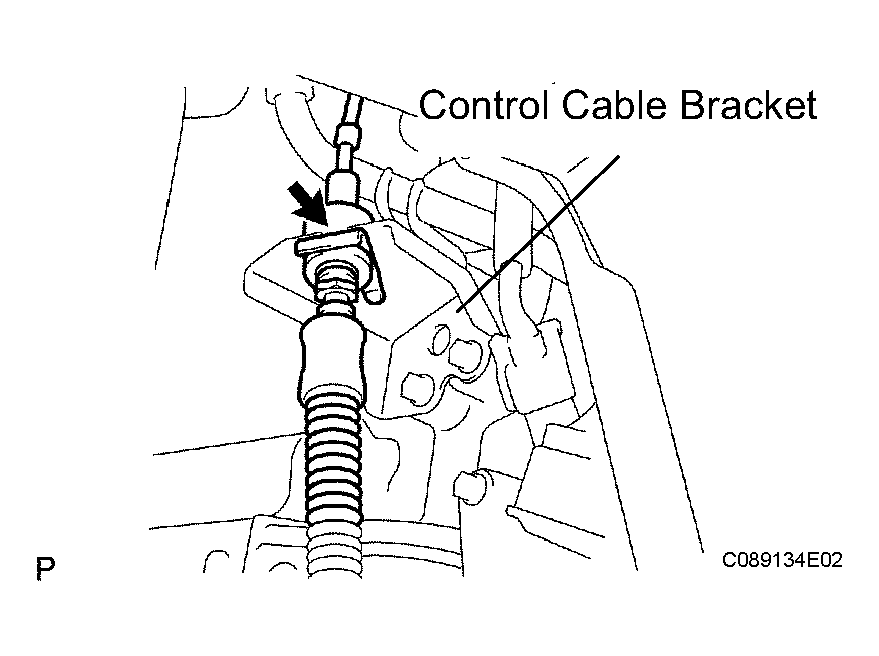

  Fig 4: Connecting Transmission Control Cable Assembly With Clip To Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the shift cable grommet retainer No. 2 with the 2 bolts.
  Torque: 5.0 N*m (50 kgf*cm, 43 in.*lbf)

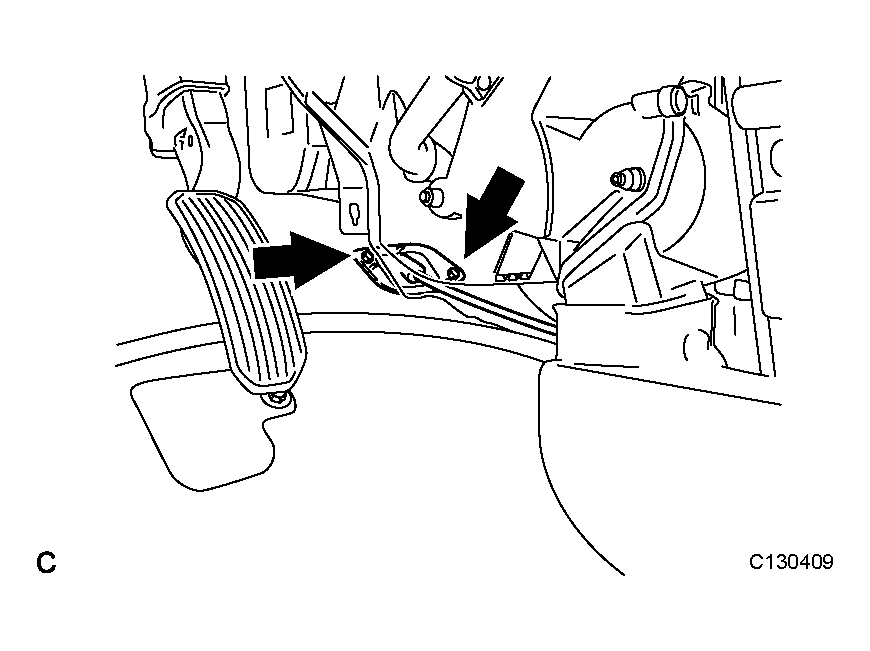

  Fig 5: Installing Shift Cable Grommet Retainer No. 2 With 2 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE AIR RESONATOR SUB-ASSEMBLY (See step 57 under INSTALLATION )
INSTALL AIR CLEANER ASSEMBLY
HINT:

(See step 59 under INSTALLATION )
INSTALL AIR BAG SENSOR ASSEMBLY CENTER
HINT:

(See INSTALLATION )
INSTALL CONSOLE BOX FRONT
HINT:

(See INSTALLATION )
INSTALL CONSOLE BOX ASSEMBLY
HINT:

(See INSTALLATION )
INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
HINT:

(See INSTALLATION )
INSTALL CONSOLE BOX UPPER
HINT:

(See INSTALLATION )
INSTALL POSITION INDICATOR HOUSING ASSEMBLY
HINT:

(See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
HINT:

(See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
