Navigation Ecu: Replacement

HINT:

COMPONENTS: See AUDIO & VISUAL SYSTEM  or COMPONENTS

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
2. REMOVE SPARE WHEEL COVER ASSY
3. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSY RH
4. REMOVE LUGGAGE COMPARTMENT TRIM HOOK NO. 1 (See  REPLACEMENT  )
5. REMOVE REAR FLOOR FINISH PLATE (See  REPLACEMENT  )
6. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH (See  REPLACEMENT  )
7. REMOVE NAVIGATION ECU
   1. Disconnect the connectors and remove the 2 clamps.

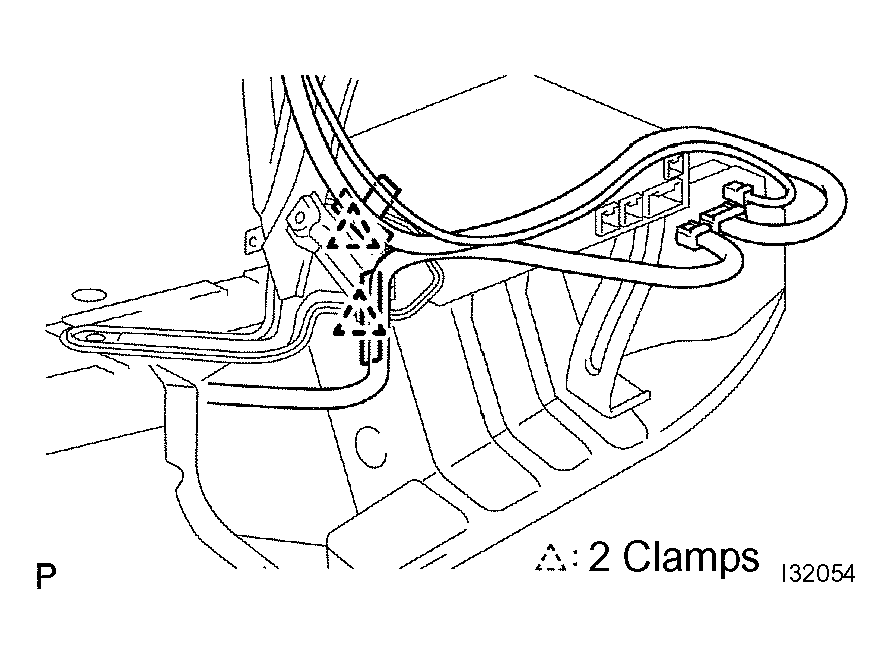

      Fig 1: Identifying Clamps

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the nut and 2 bolts, then remove the navigation ECU.

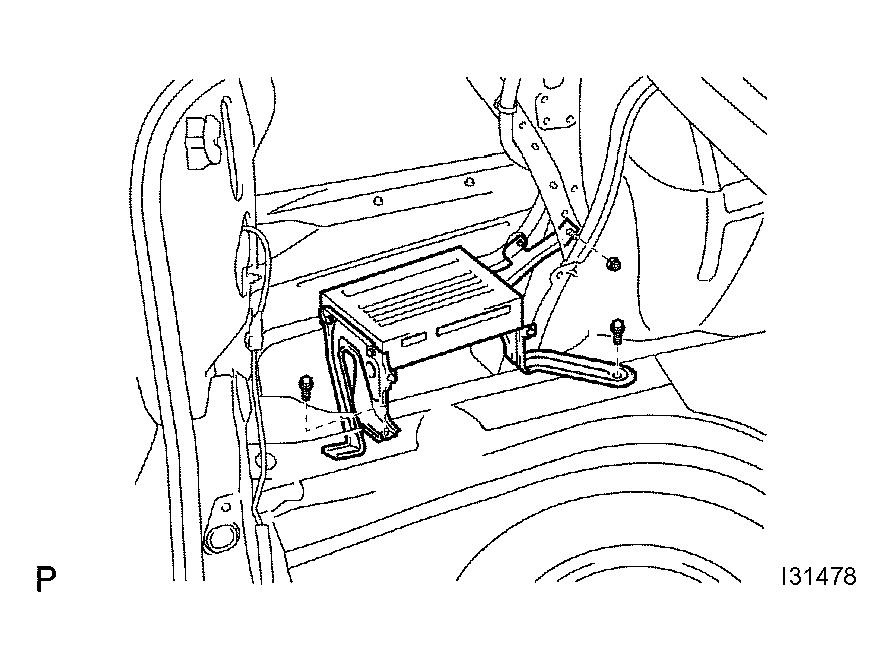

   Fig 2: Removing Navigation ECU Nut And Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE DISC PLAYER BRACKET
   1. Remove the 2 screws and disc player bracket.
   Fig 3: Identifying Disc Player Bracket Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE DISC PLAYER BRACKET NO. 2
   1. Remove the 2 screws and disc player bracket No. 2.
   Fig 4: Identifying Disc Player Bracket No. 2 Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
