Back Window Glass
›
Components
Back Window Glass: Components

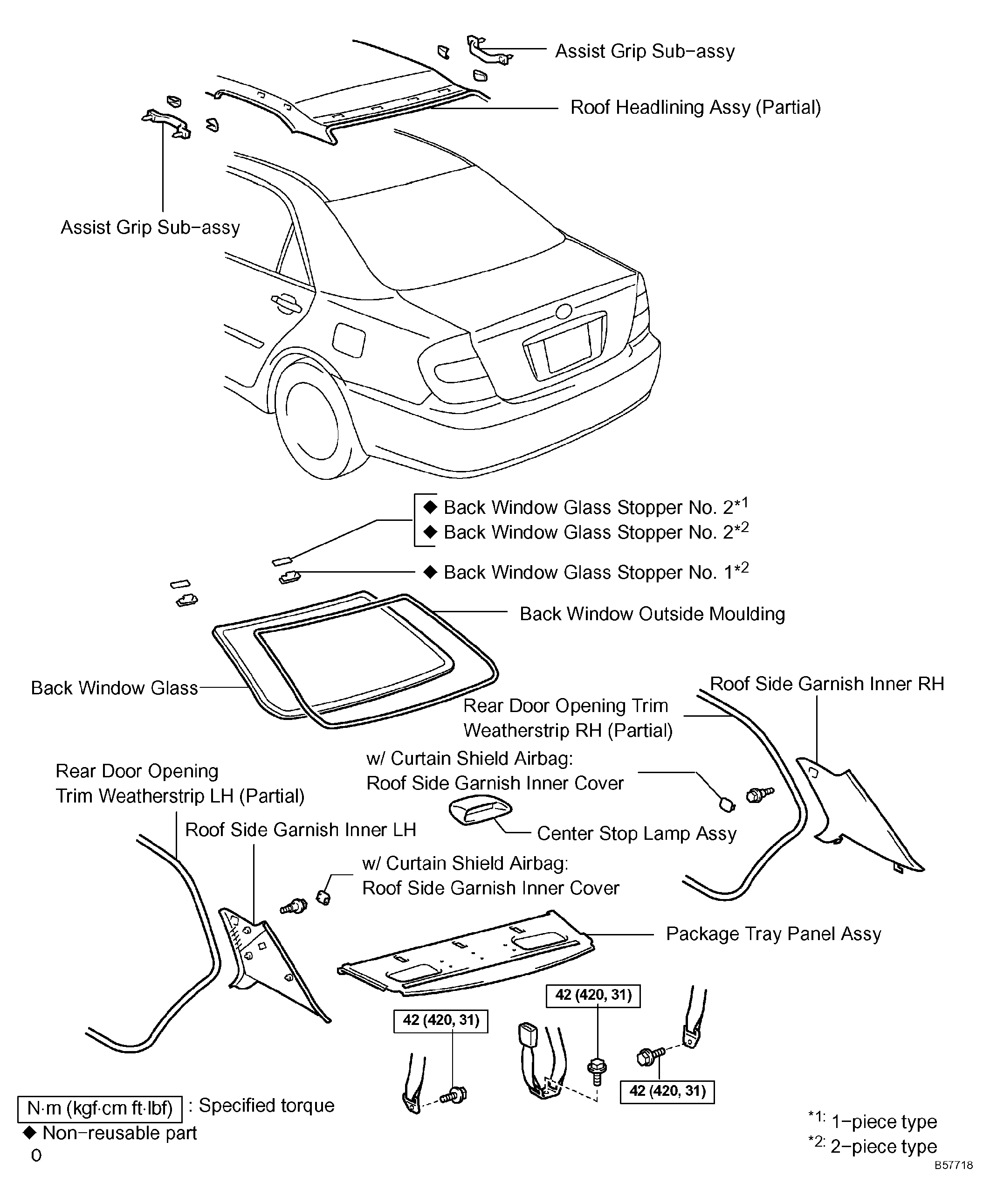

Fig 1: Identifying Back Window Glass Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
