FixVault
Home
›
Toyota
›
2006
›
Camry Base, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Windshield/WINDOWGLASS/Mirror
›
Windshield Glass
›
Components
Windshield Glass: Components

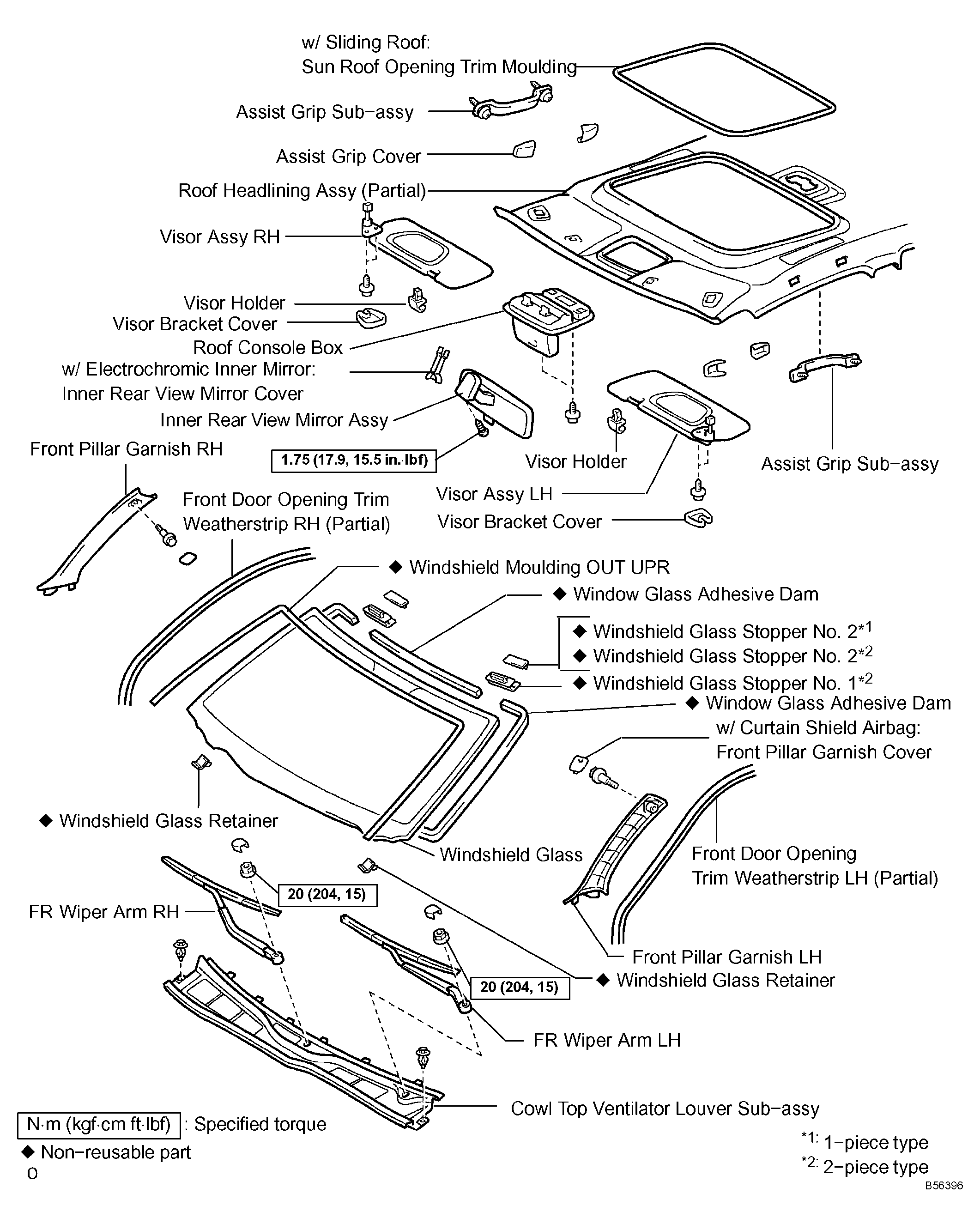

Fig 1: Identifying Windshield Glass Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
