Automatic Light Control
›
Notes
Automatic Light Control: Notes

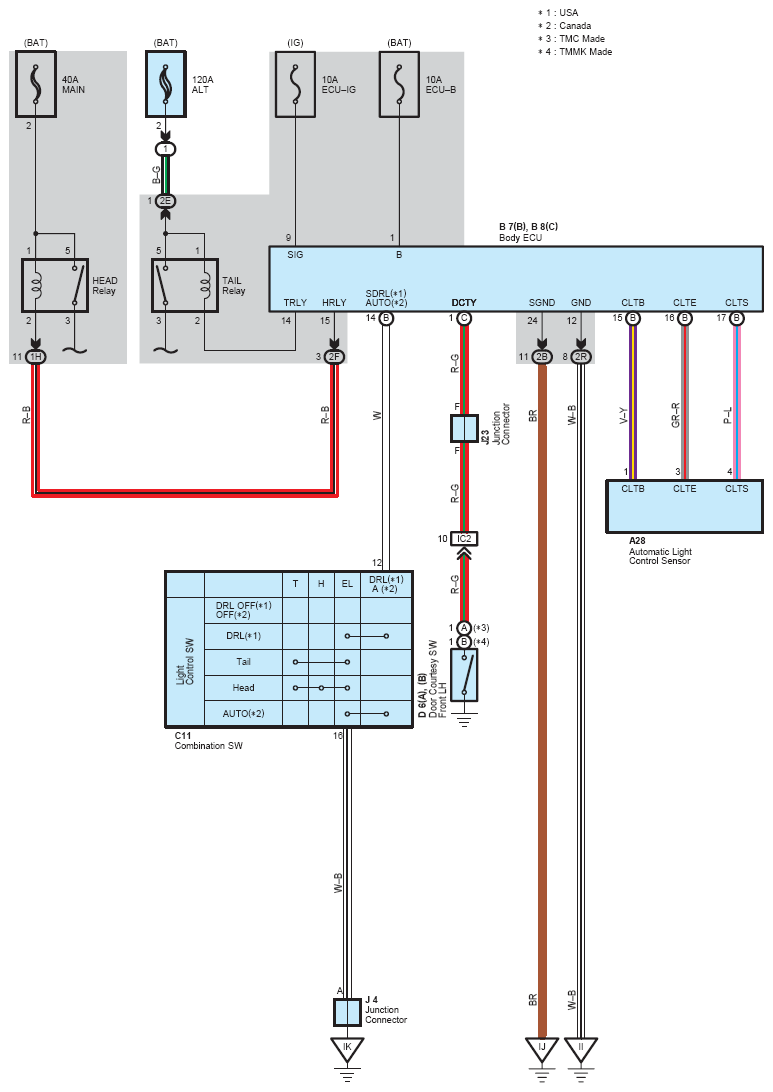

Fig 1: Automatic Light Control System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
