Cruise Control for 1MZ-FE and 3MZ-FE: Notes

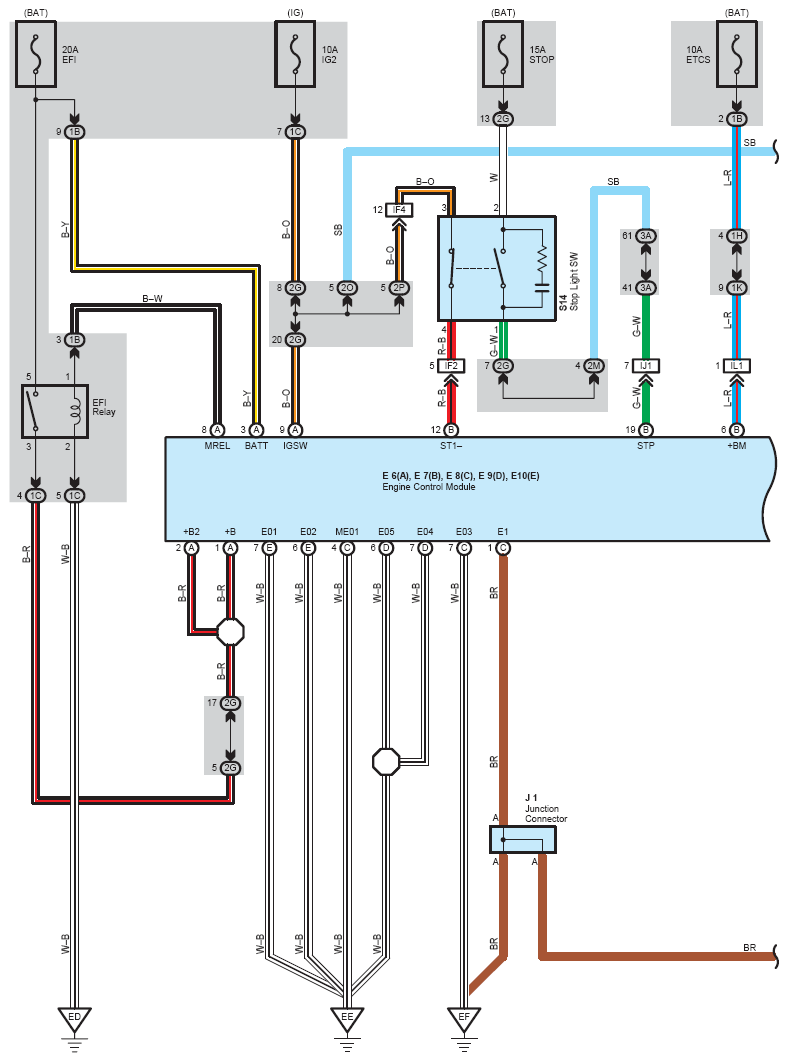

Fig 1: Cruise Control System Wiring Diagram - 1MZ-FE And 3MZ-FE; (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

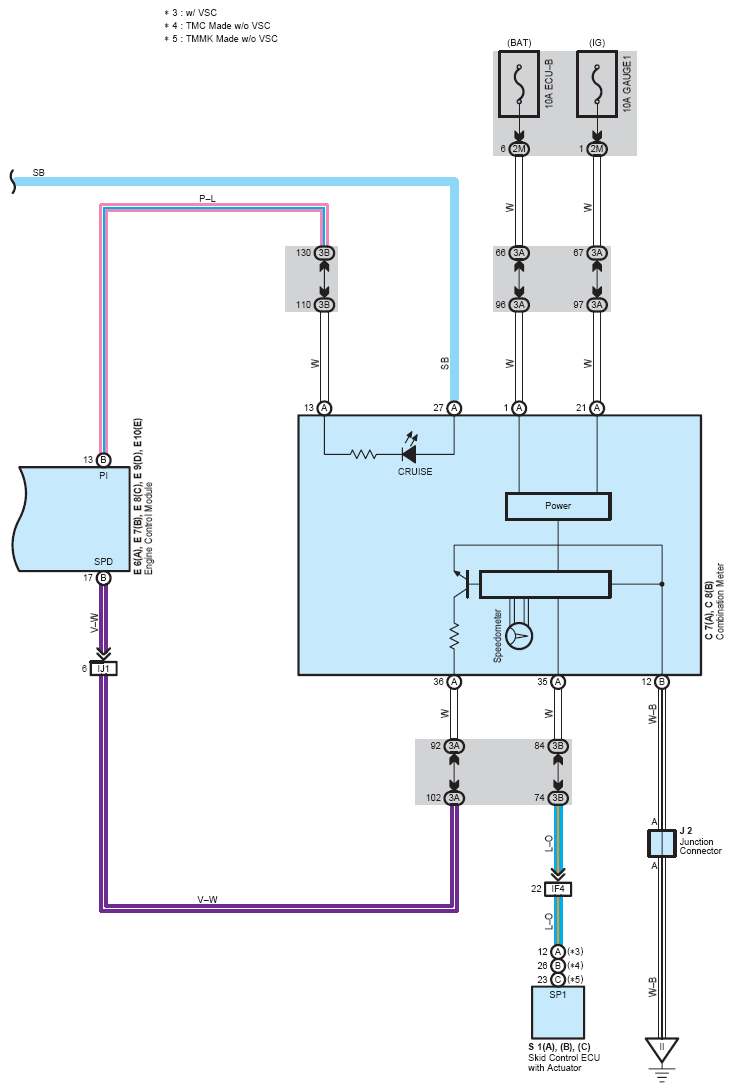

Fig 2: Cruise Control System Wiring Diagram - 1MZ-FE And 3MZ-FE; (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

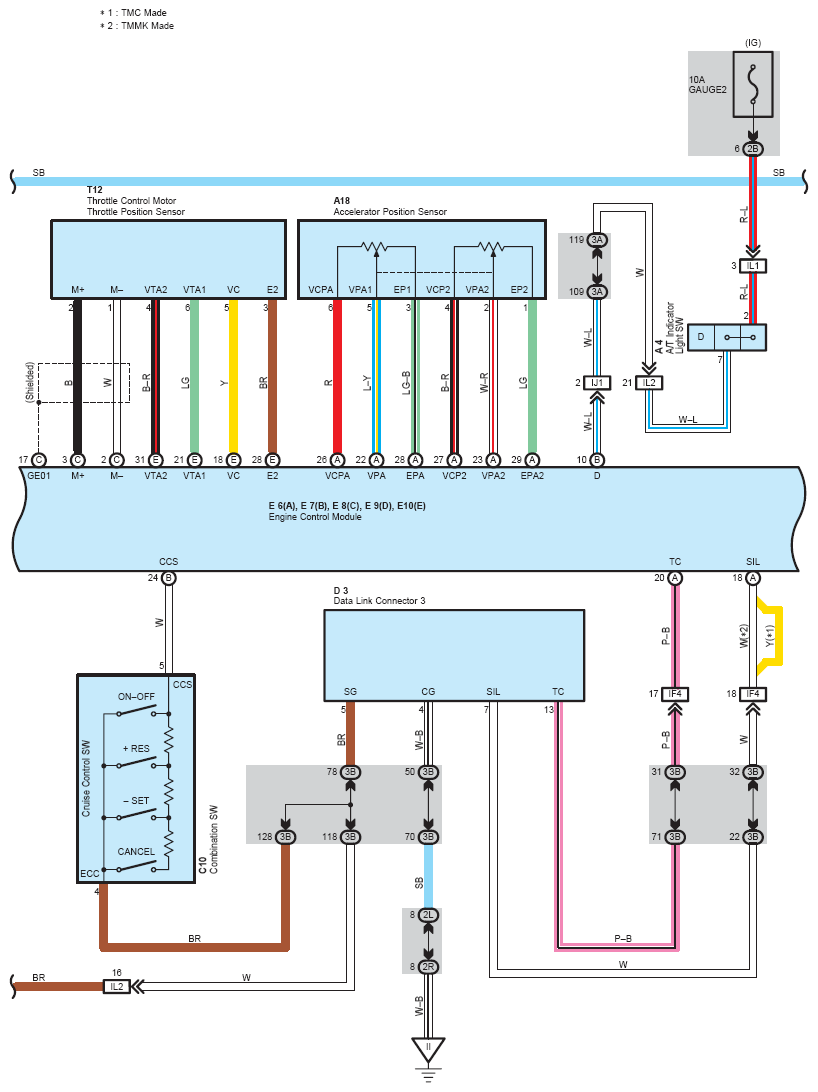

Fig 3: Cruise Control System Wiring Diagram - 1MZ-FE And 3MZ-FE; (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
