ECT and A/T Indicator for 2AZ-FE: Notes

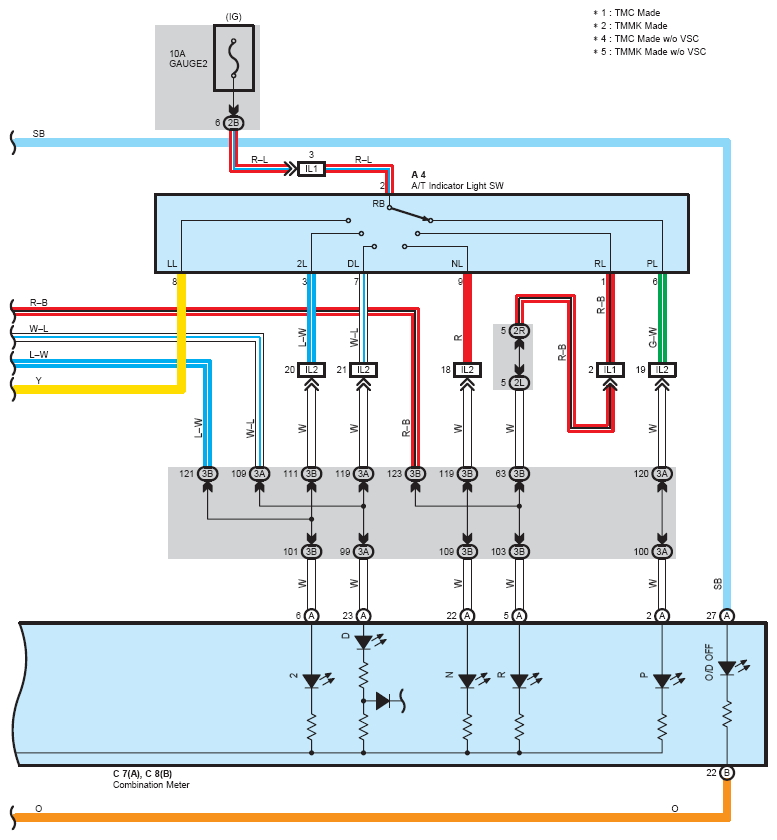

Fig 1: ECT And A/T Indicator System Wiring Diagram - 2AZ-FE; (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

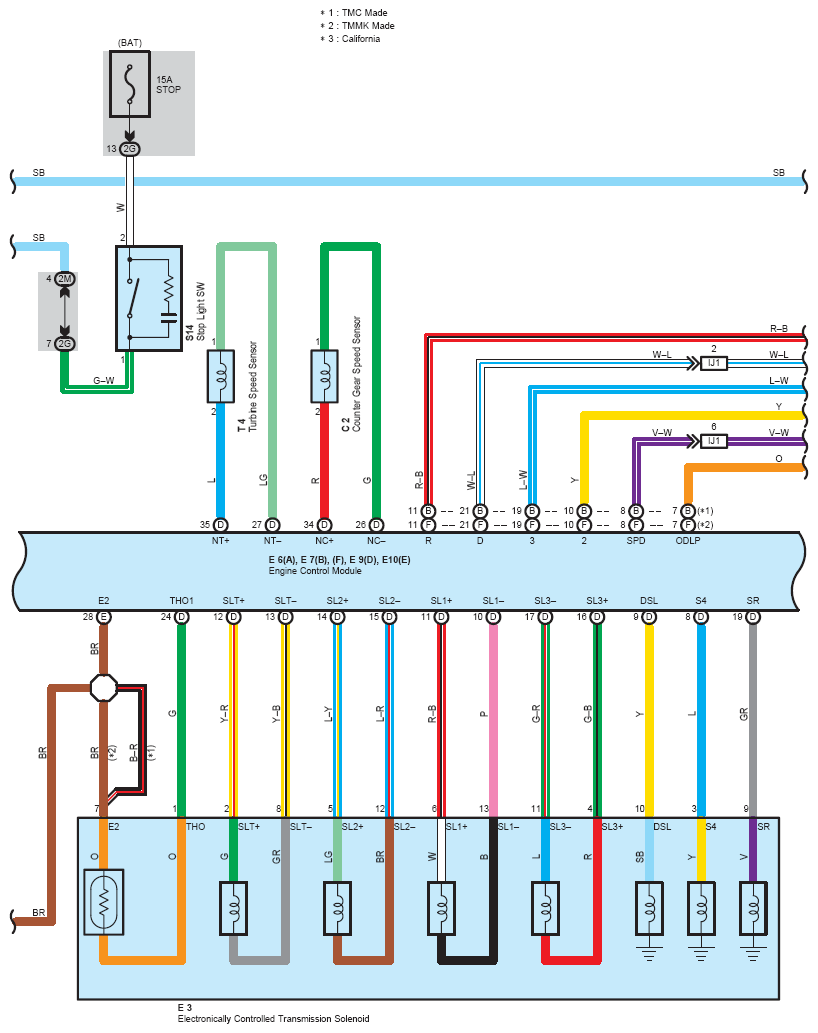

Fig 2: ECT And A/T Indicator System Wiring Diagram - 2AZ-FE; (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

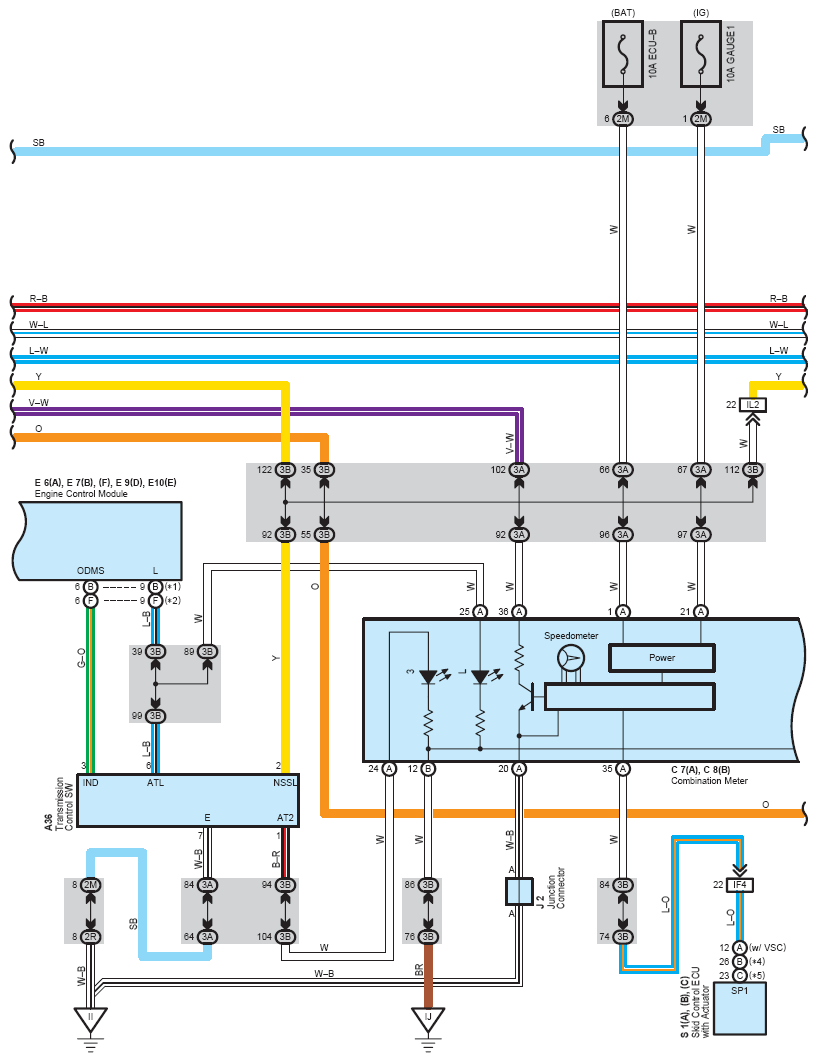

Fig 3: ECT And A/T Indicator System Wiring Diagram - 2AZ-FE; (3 Of 4)

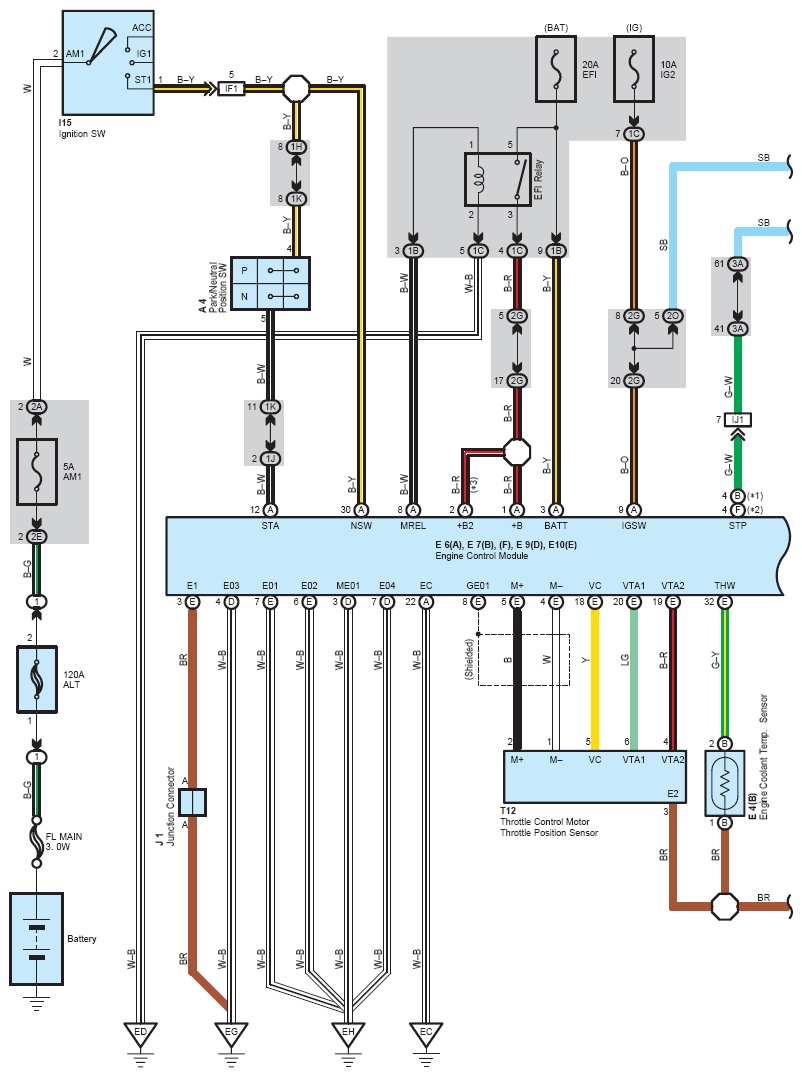

Fig 4: ECT And A/T Indicator System Wiring Diagram - 2AZ-FE; (4 Of 4)
