Engine Immbiliser System
›
Notes
Engine Immbiliser System: Notes

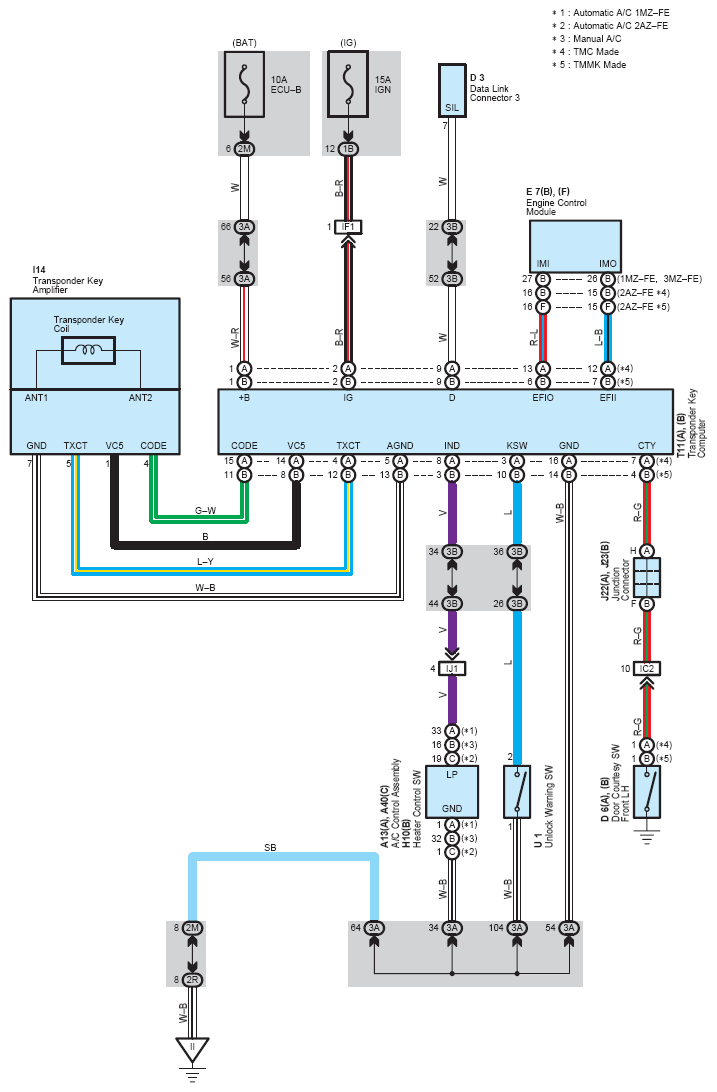

Fig 1: Engine Immbiliser System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
