Fog Light: Notes

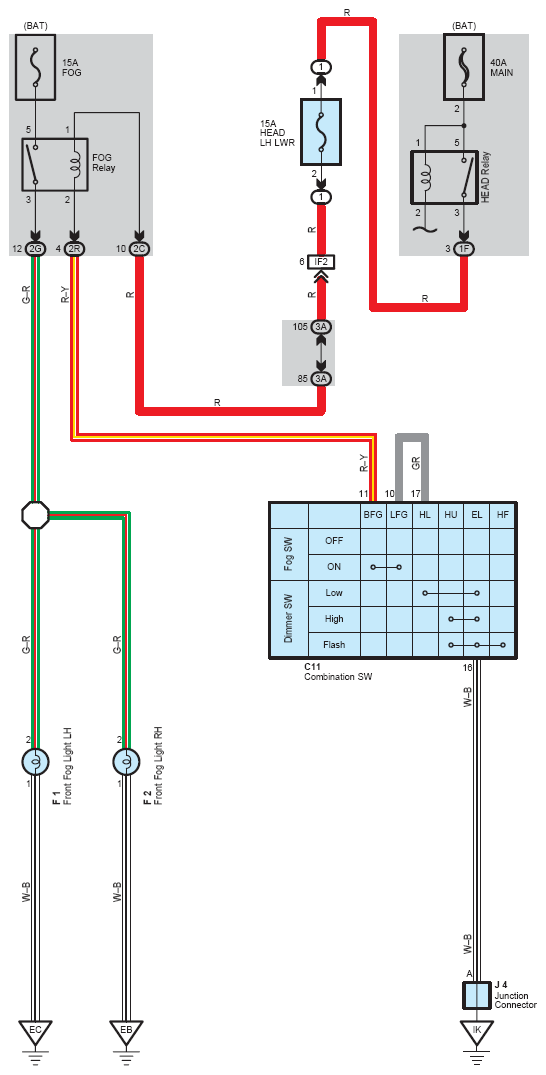

Fig 1: Fog Light System Wiring Diagram

G08775588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
