Power Adjustable Pedals
›
Notes
Power Adjustable Pedals: Notes

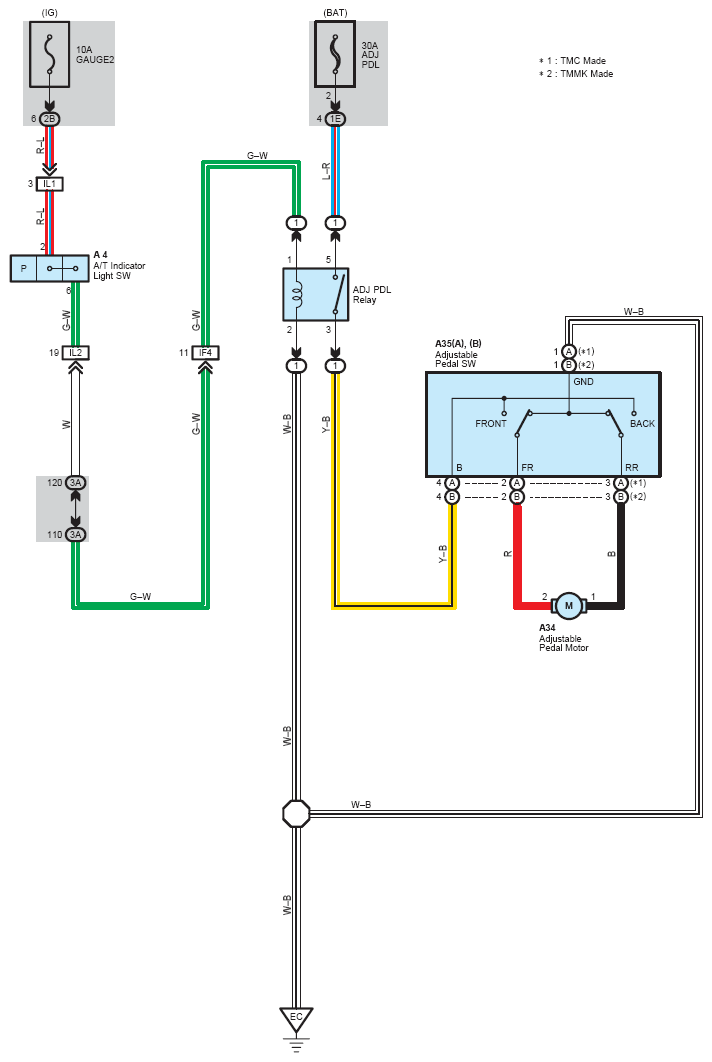

Fig 1: Power Adjustable Pedals System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
