Starting and Ignition for 2AZ-FE: Notes

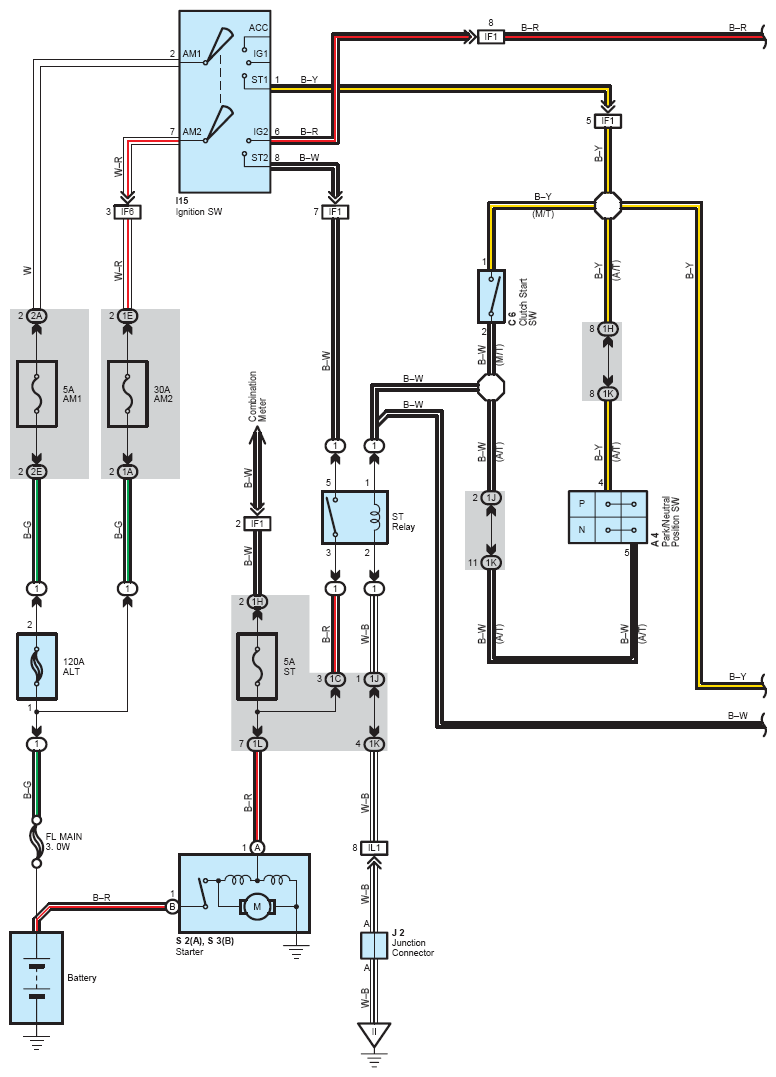

Fig 1: Starting And Ignition System Wiring Diagram (2AZ-FE; 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

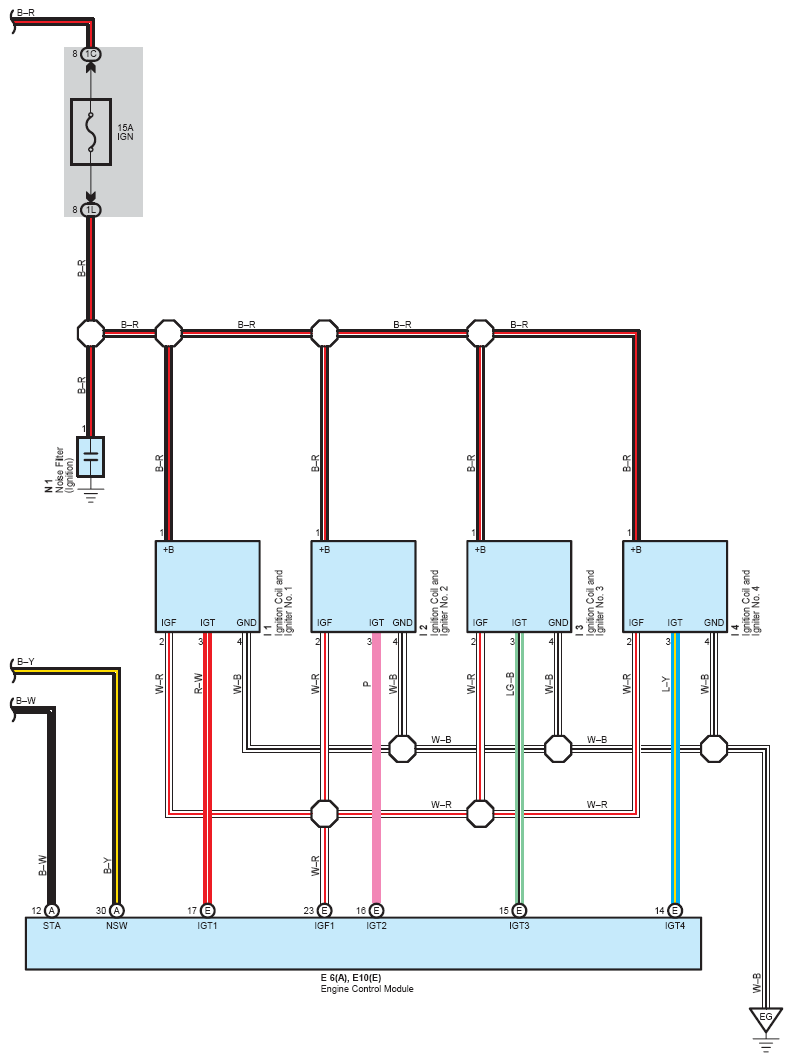

Fig 2: Starting And Ignition System Wiring Diagram (2AZ-FE; 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
