Fuel Injector ASSY (1MZ-FE/3MZ-FE): Components

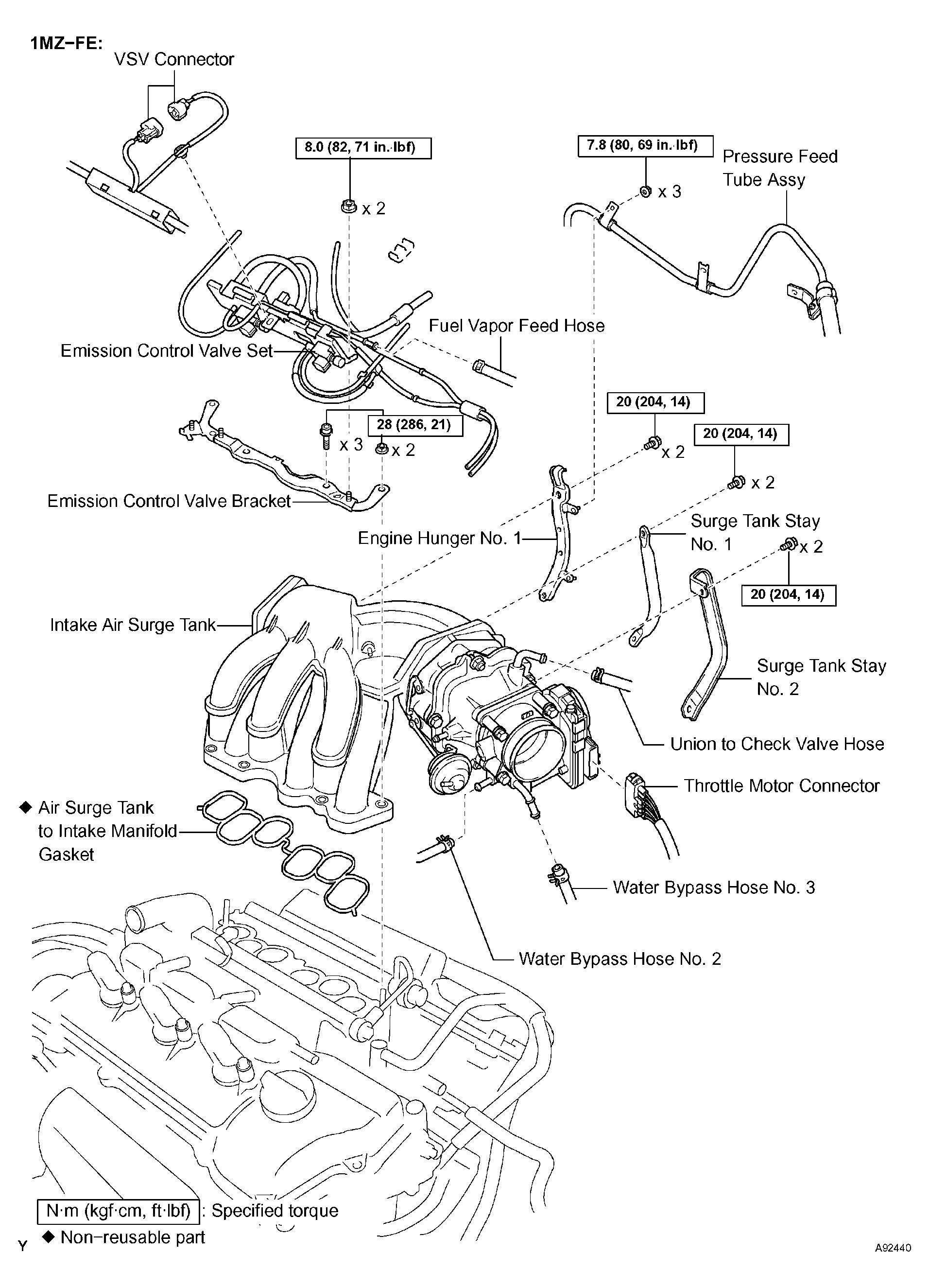

Fig 1: Identifying Fuel Injector Assembly (1MZ-FE/3MZ-FE) Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

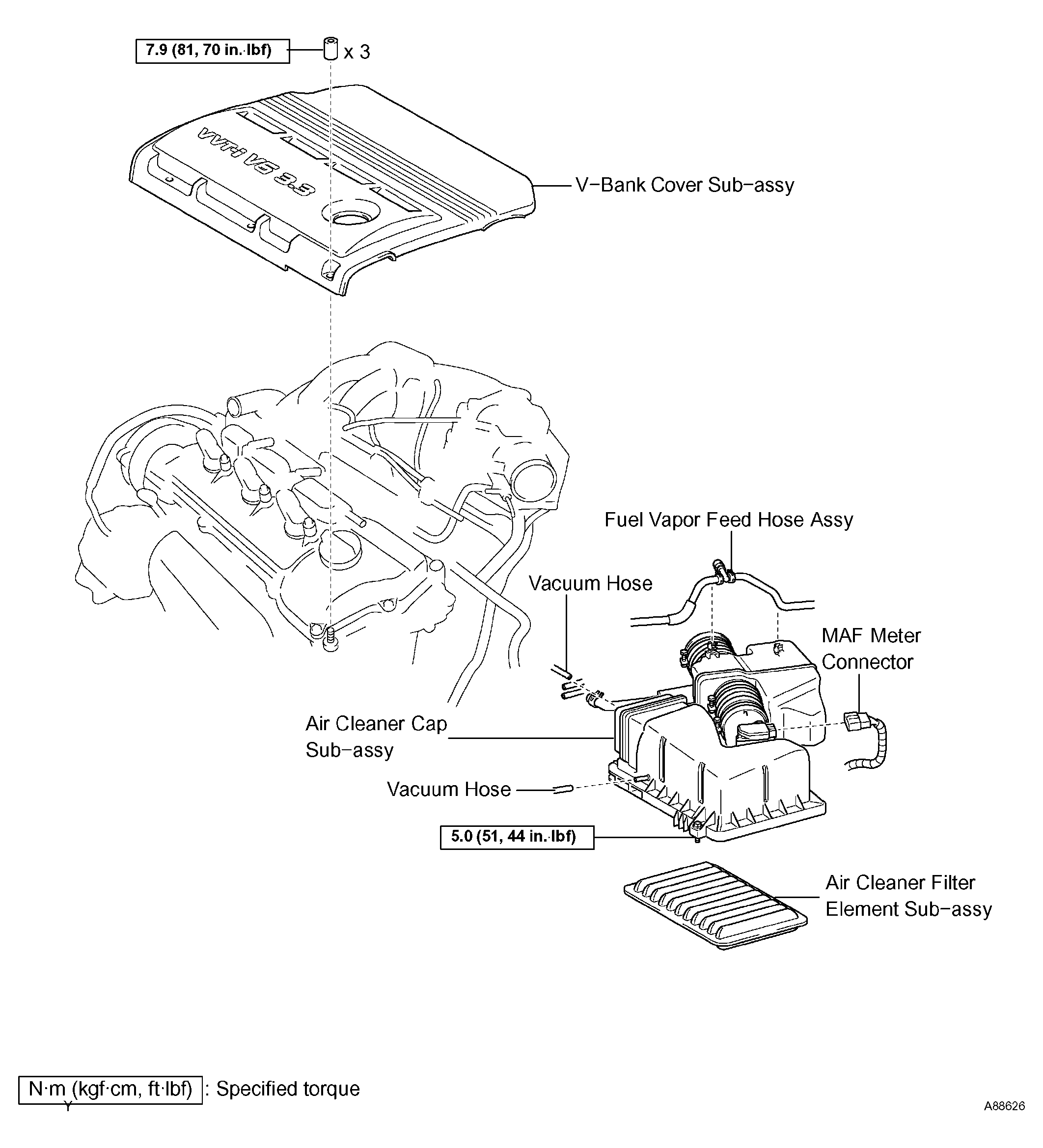

Fig 2: Identifying Fuel Injector Assembly (1MZ-FE/3MZ-FE) Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

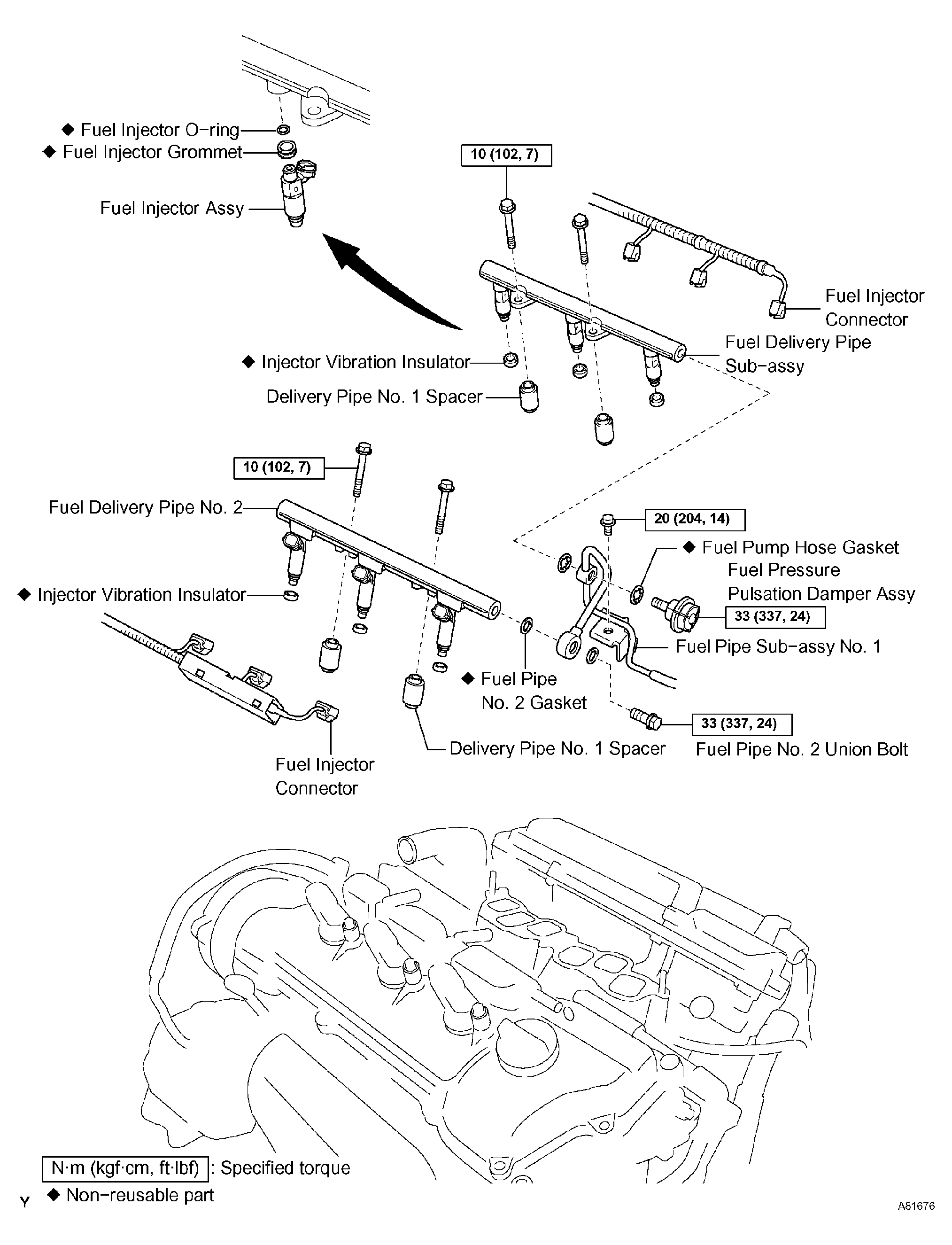

Fig 3: Identifying Fuel Injector Assembly (1MZ-FE/3MZ-FE) Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

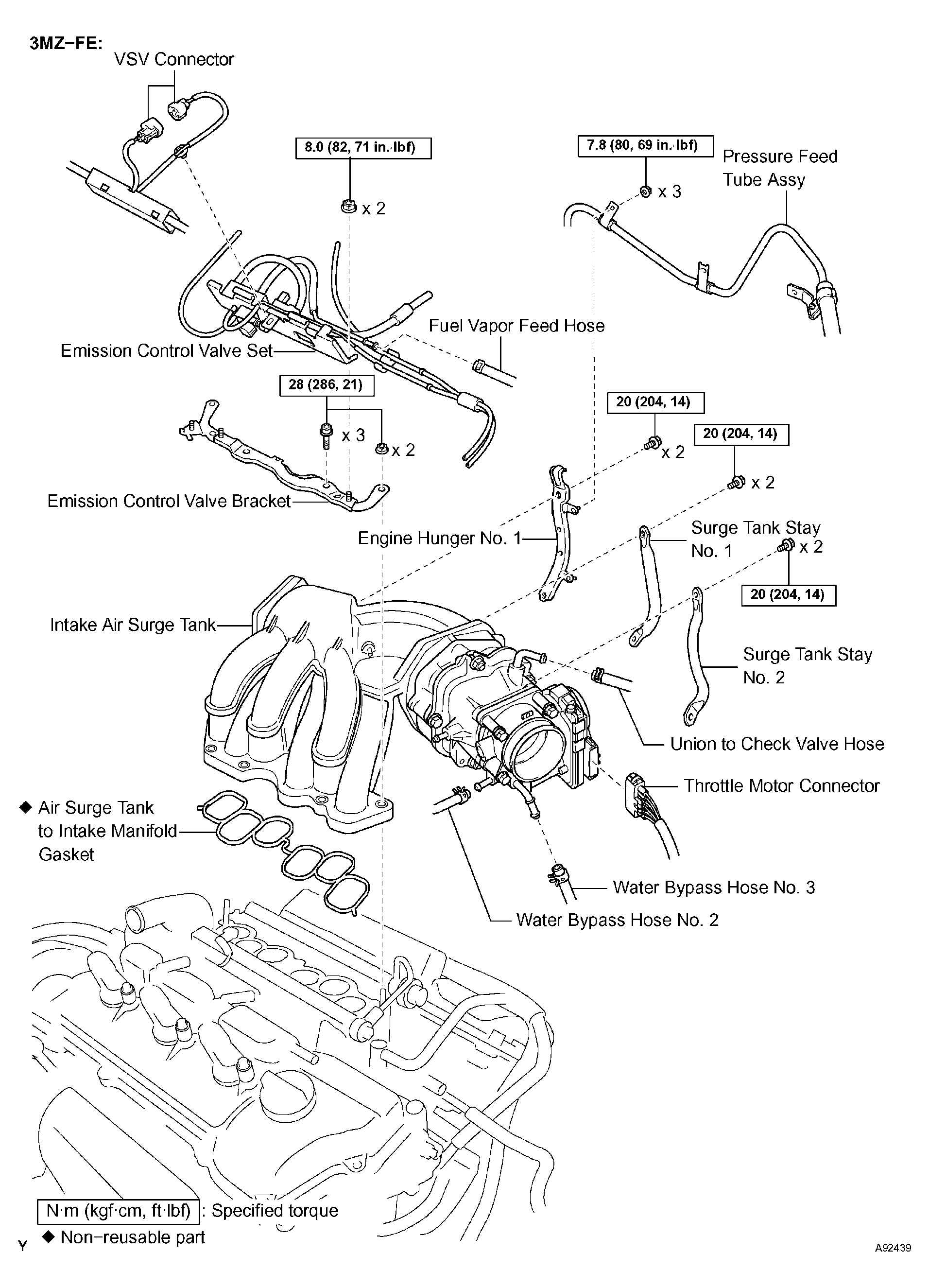

Fig 4: Identifying Fuel Injector Assembly (1MZ-FE/3MZ-FE) Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
