System Diagram

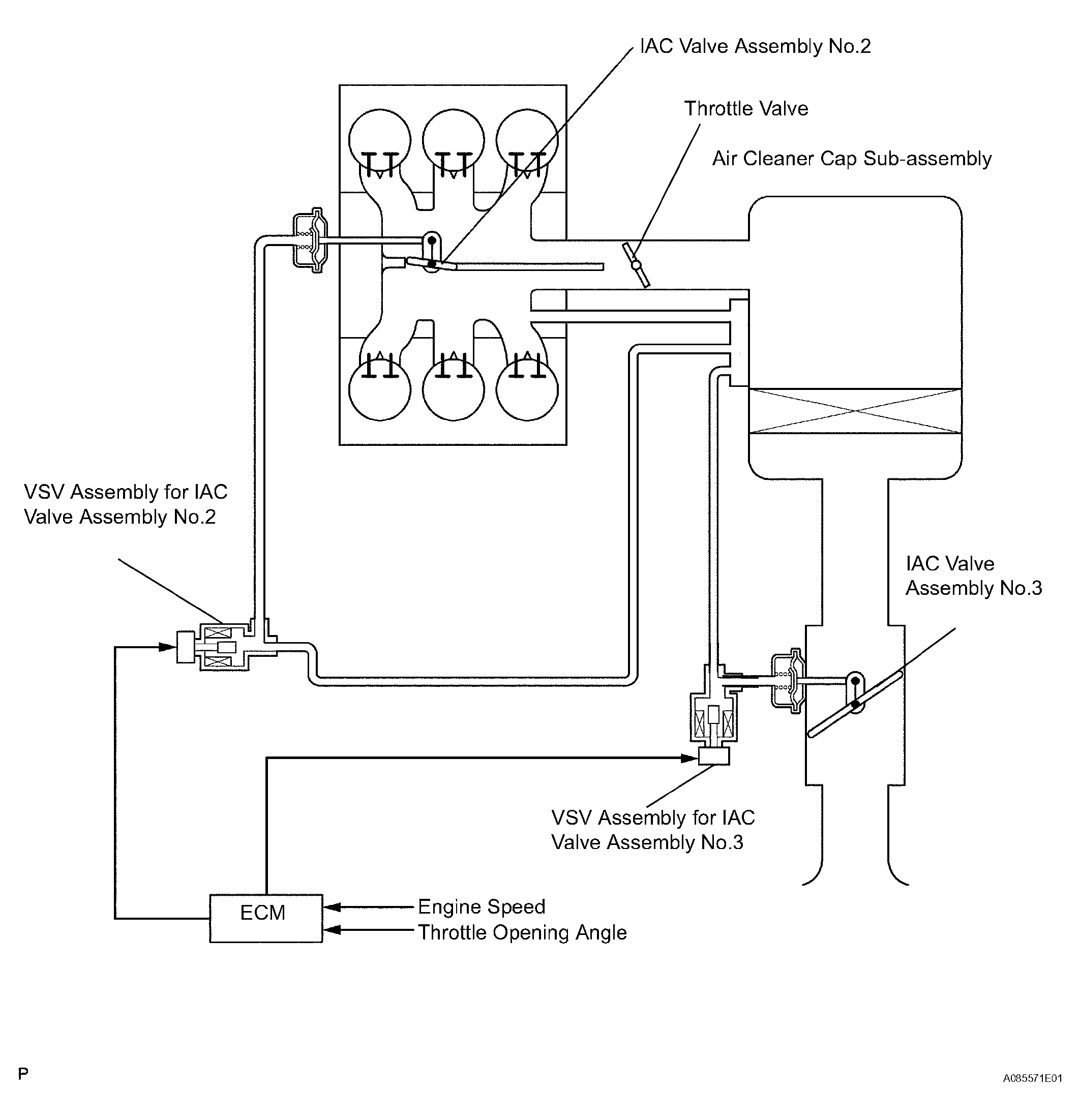

Fig 1: Identifying Intake Air Control System Diagram (1 Of 2)
G04383735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

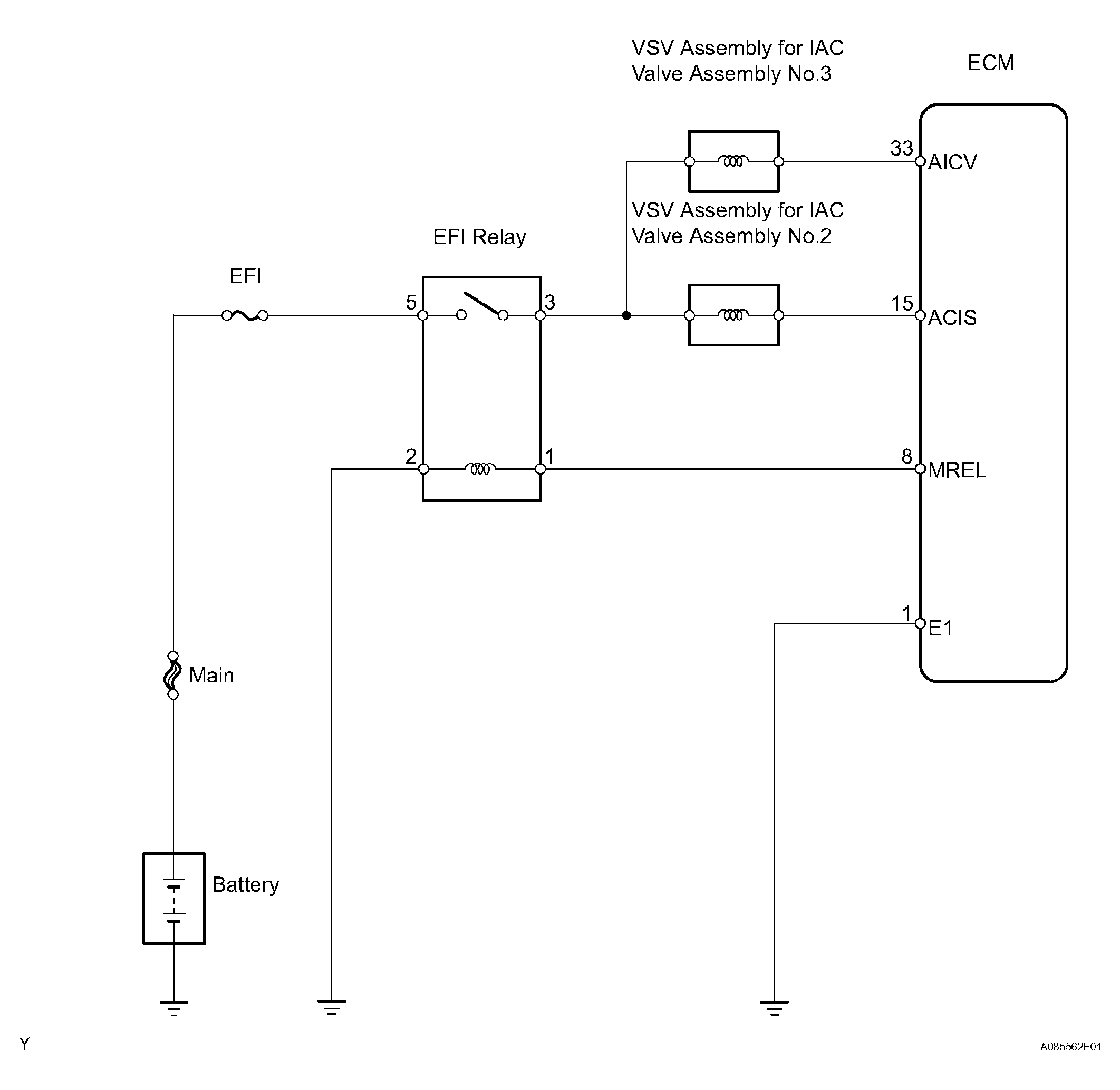

Fig 2: Identifying Intake Air Control System Diagram (2 Of 2)
G04383736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
