Parts Location

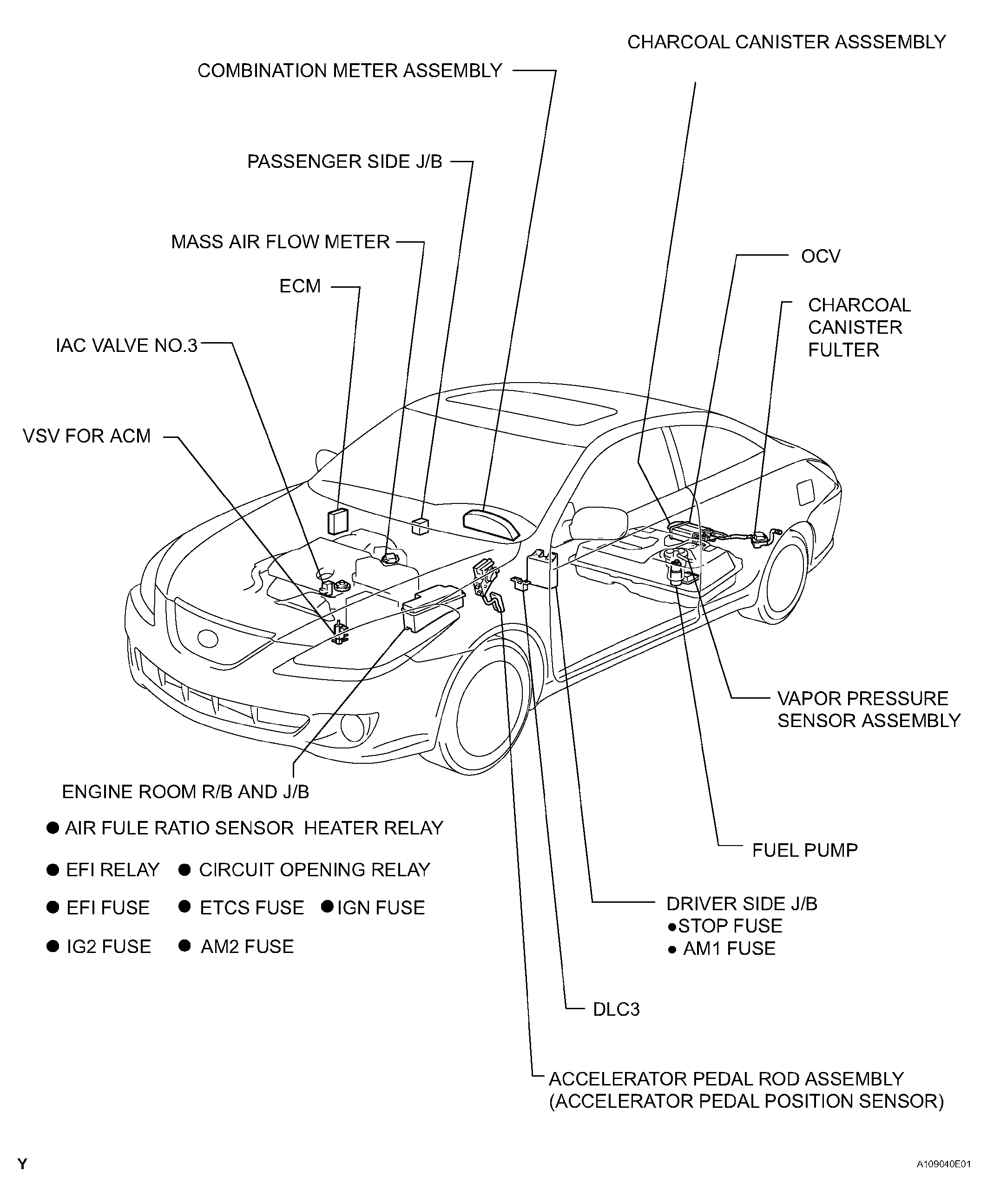

Fig 1: Identifying SFI System Parts Location (2GR-FE - 1 Of 2)
G04382307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

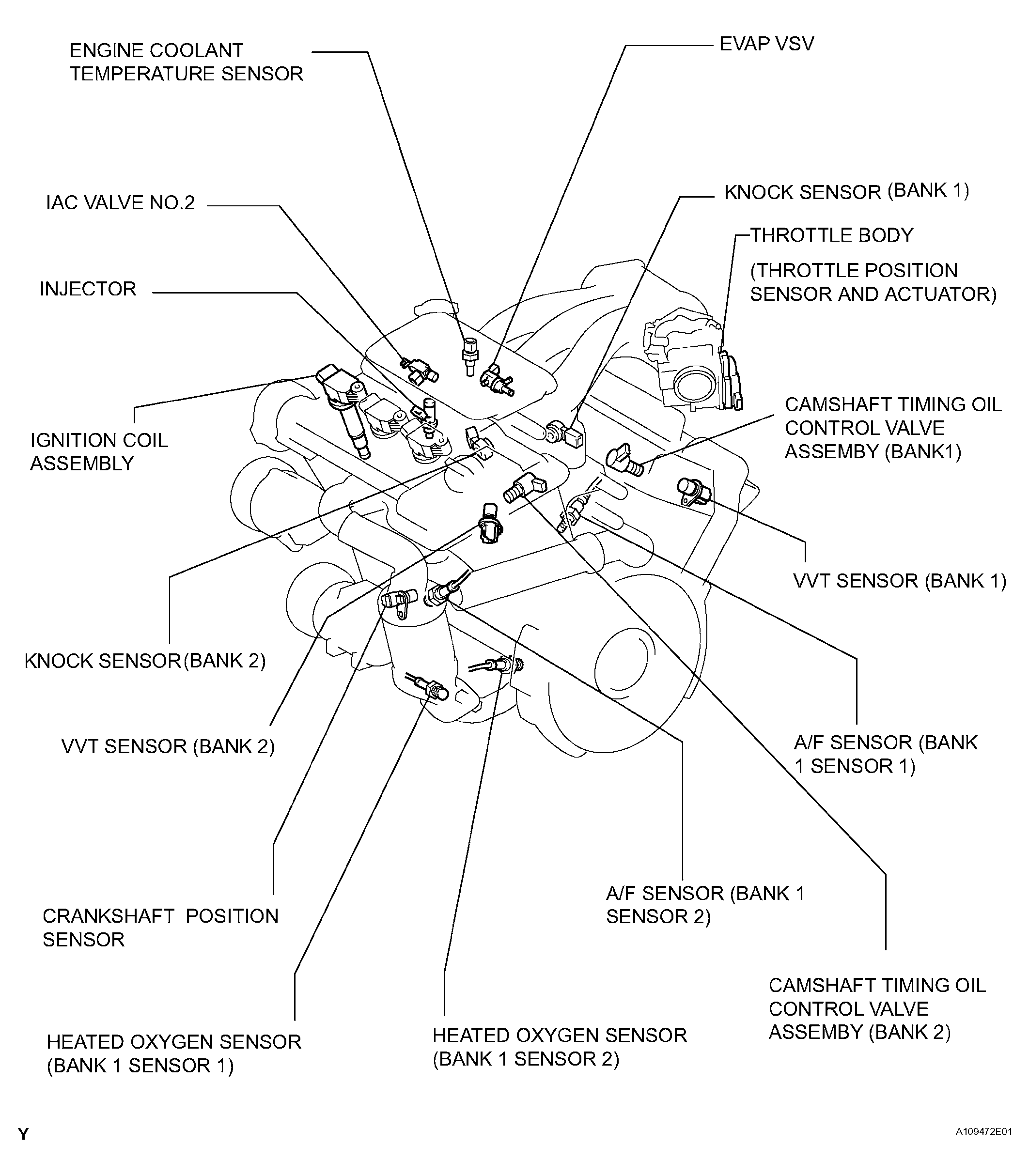

Fig 2: Identifying SFI System Parts Location (2GR-FE - 2 Of 2)
G04382308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
