VVT Sensor: Removal

HINT:

A bolt without a torque specification is shown in the standard bolt chart (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE AIR CLEANER INLET ASSEMBLY
2. REMOVE AIR CLEANER ASSEMBLY
3. REMOVE VVT SENSOR
   1. Disconnect the sensor connector.
   2. Remove the bolt and sensor.

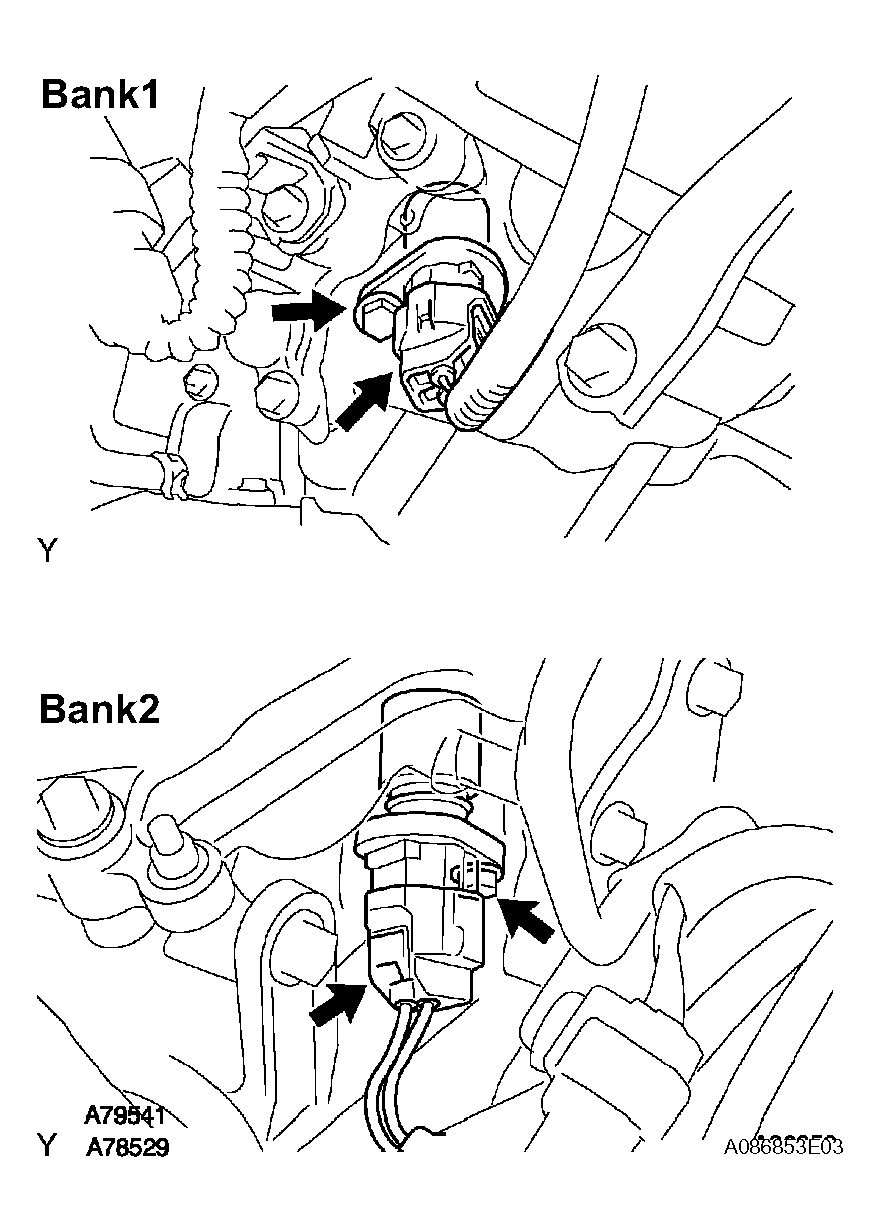

      Fig 1: Removing VVT Sensor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
