Throttle Body: Components

Fig 1: Identifying Throttle Body Components And Replacements (1 Of 2)
G04382681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

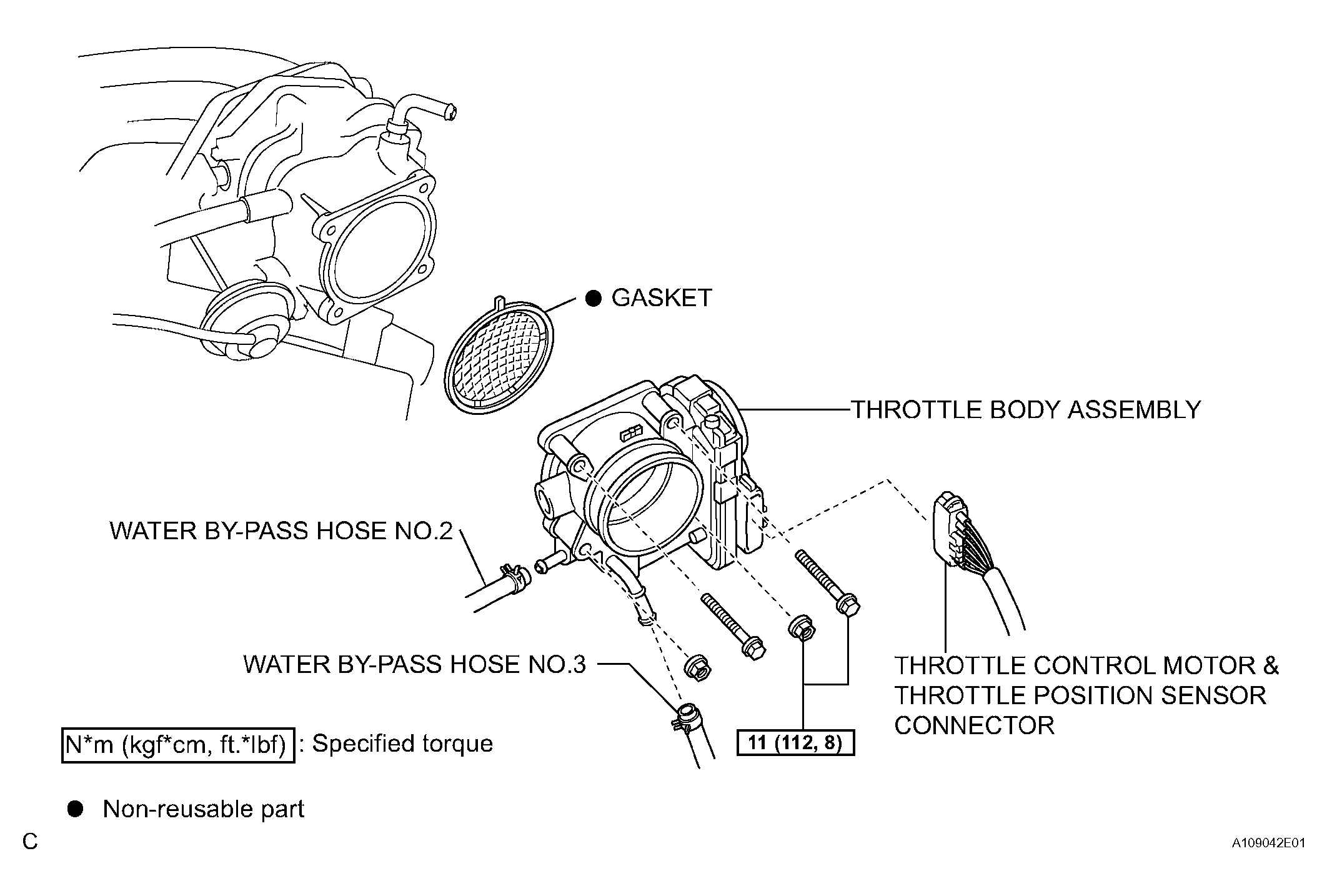

Fig 2: Identifying Throttle Body Components And Replacements (2 Of 2)
G04382682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
