Throttle Body: Removal

  1. DRAIN ENGINE COOLANT (See  COOLANT  )
  2. REMOVE FRONT SUSPENSION UPPER BRACE CENTER
    1. Remove the 2 nuts and upper brace.
  3. REMOVE V-BANK COVER SUB-ASSEMBLY
    1. Using a 5 mm socket hexagon wrench, remove the 3 nuts.
    2. Remove the V-bank cover.

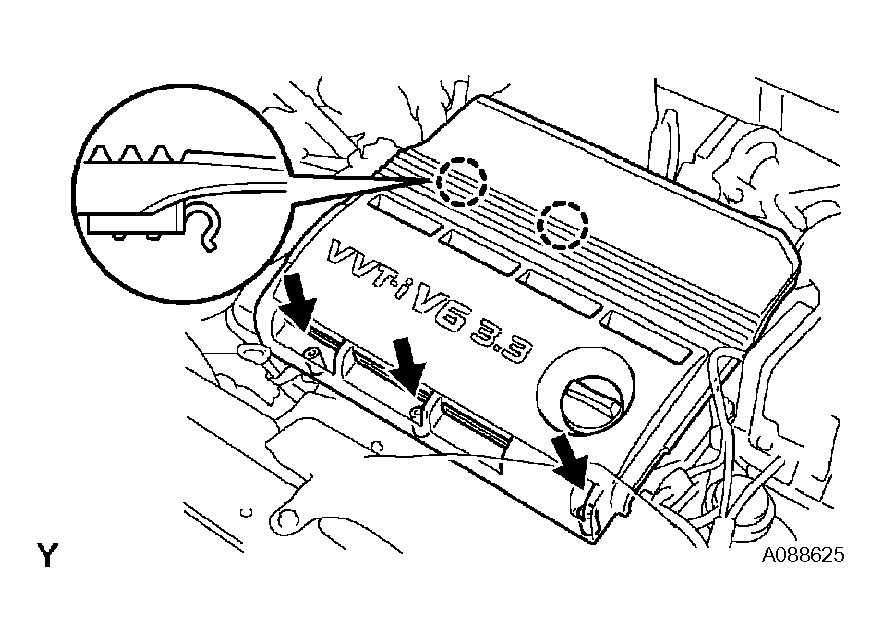

      3. Fig 1: Removing V-Bank Cover Sub-Assembly
      G04382683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE AIR CLEANER INLET ASSEMBLY
  5. REMOVE AIR CLEANER ASSEMBLY
  6. REMOVE INTAKE AIR RESONATOR
    1. Remove the ventilation hose No. 2.
    2. Remove the fuel vapor feed hose from the 2 hose clamps.
    3. Loosen the air cleaner hose clamp bolt, and then remove the intake air resonator.

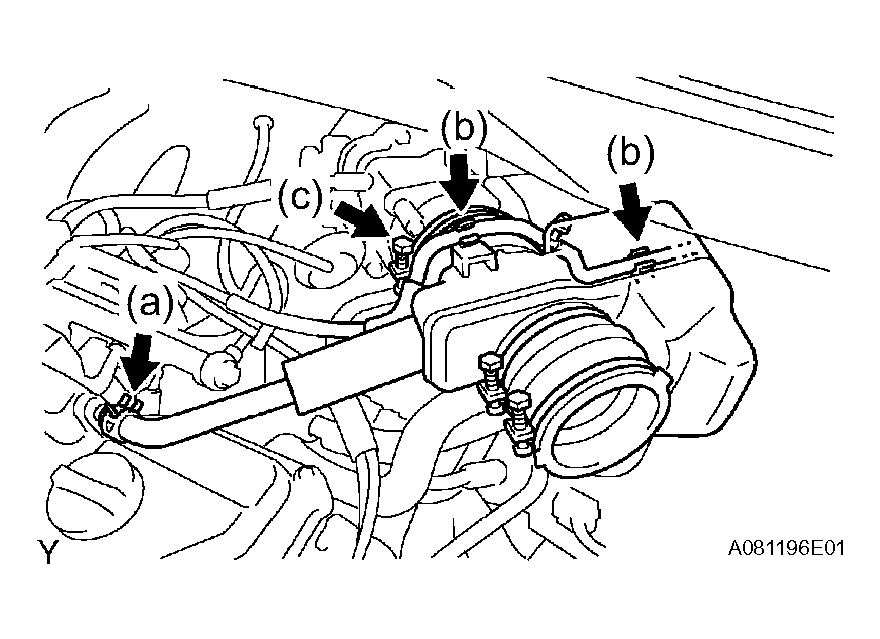

      4. Fig 2: Removing Intake Air Resonator
      G04382684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE THROTTLE BODY ASSEMBLY
    1. Disconnect the throttle control motor & throttle position sensor connector.

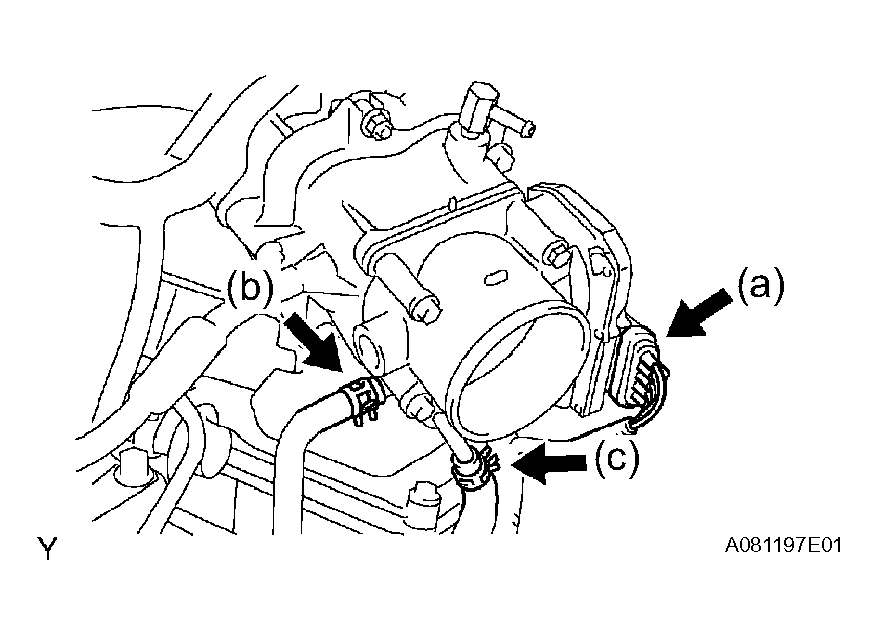

      Fig 3: Disconnecting Throttle Control Motor And Throttle Position Sensor Connector
      G04382685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the water by-pass hose No. 2.
    3. Disconnect the water by-pass hose No. 3.
    4. Remove the 2 bolts, 2 nuts and throttle body.
    5. Remove the gasket.

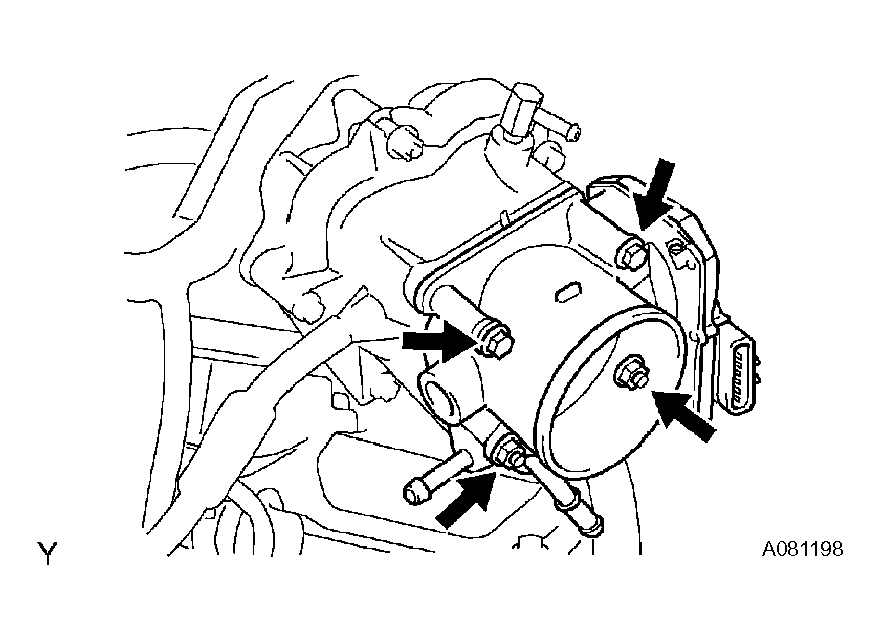

      Fig 4: Removing Gasket
      G04382686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
