Front Suspension: Components

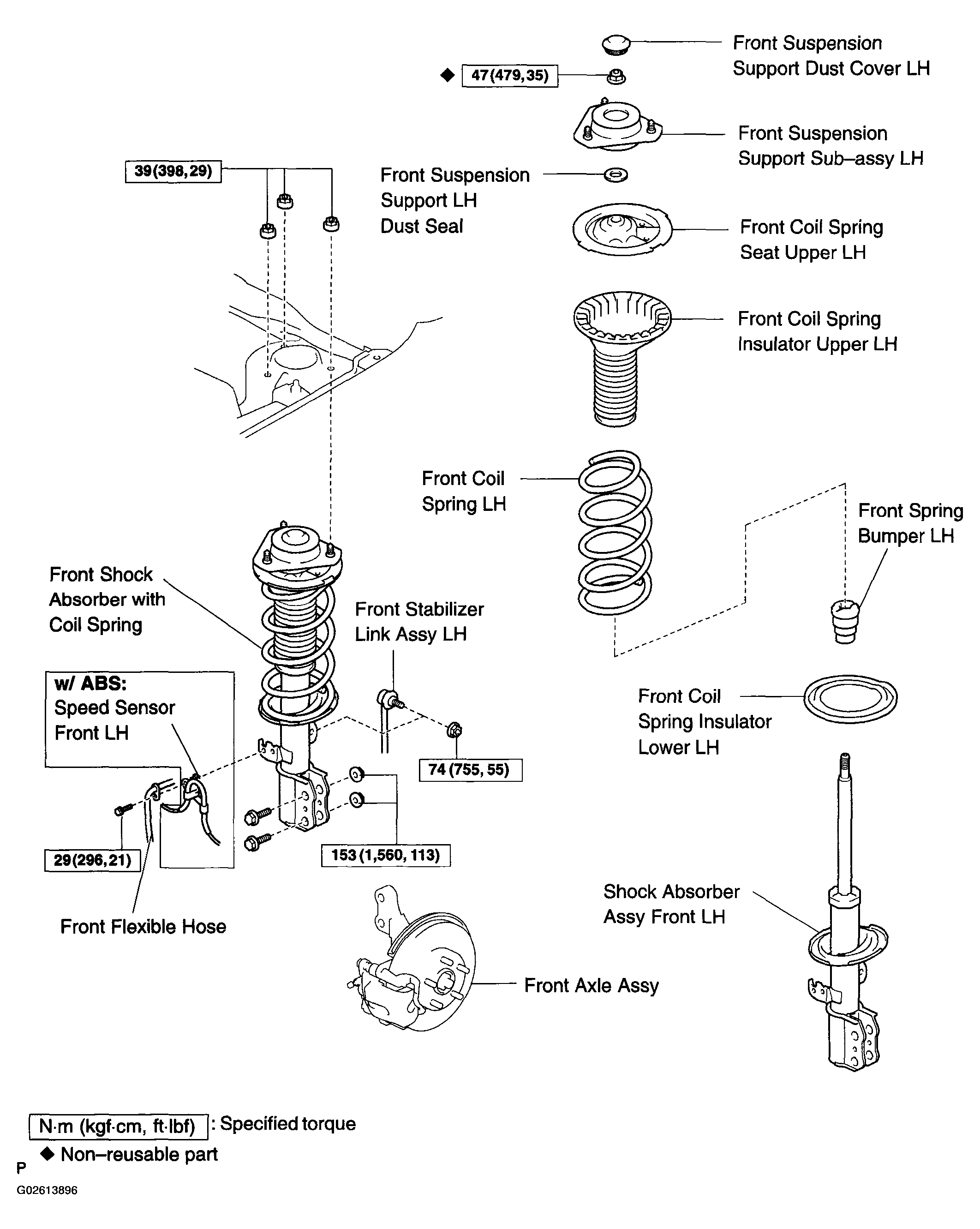

Fig 1: Identifying Front Suspension Components (1 Of 2)
G02613896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

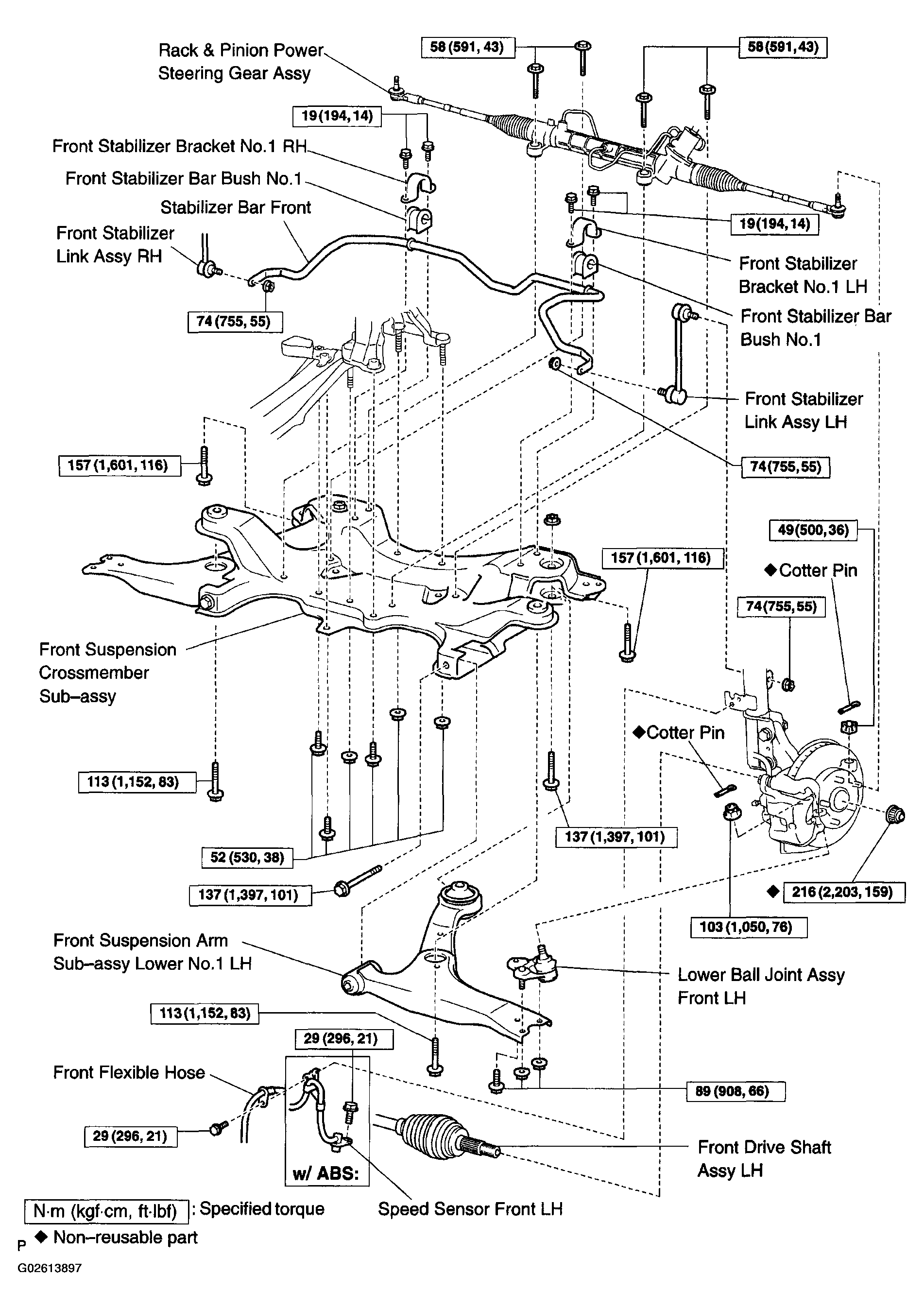

Fig 2: Identifying Front Suspension Components (2 Of 2)
G02613897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
