Home › Toyota › 2006 › Corolla LE, Automatic › Repair and Diagnosis › Body & Frame › Seats › Seat › Front Seat › Components

Front Seat: Components

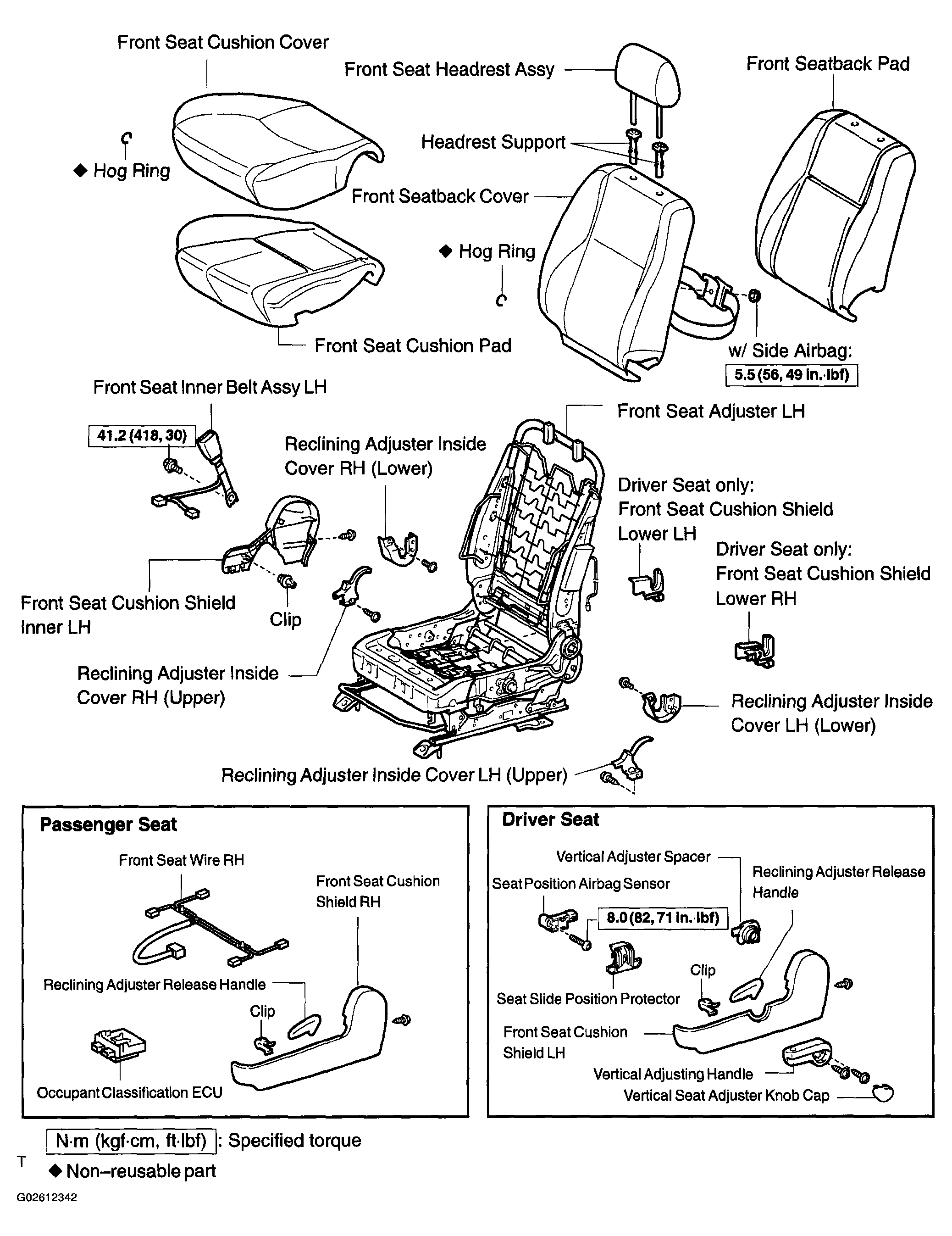

Fig 1: Identifying Front Seat Components (1 Of 2)
G02612342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

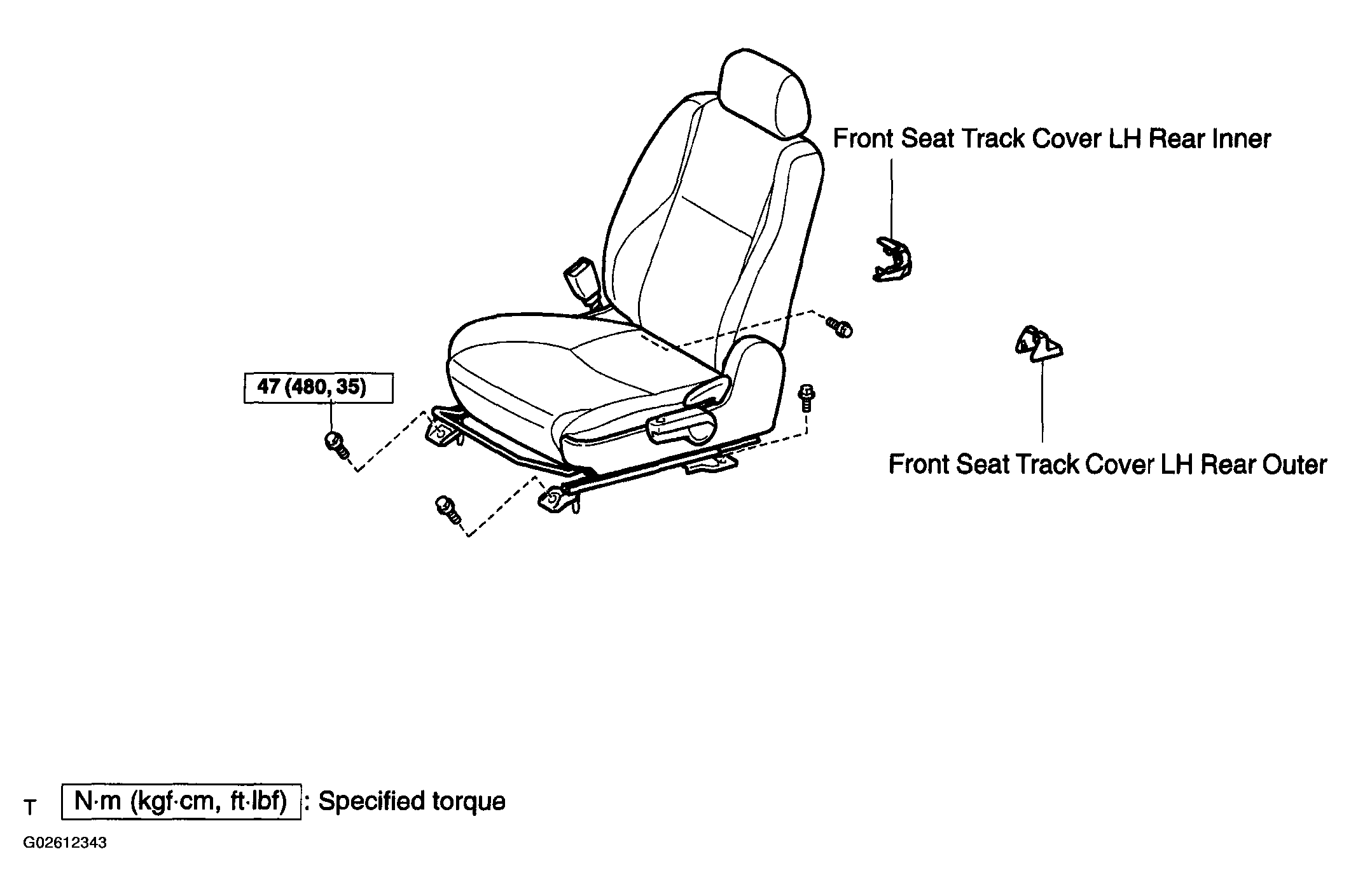

Fig 2: Identifying Front Seat Components (2 Of 2)
G02612343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
