Cruise Control for 1ZZ-FE: Notes

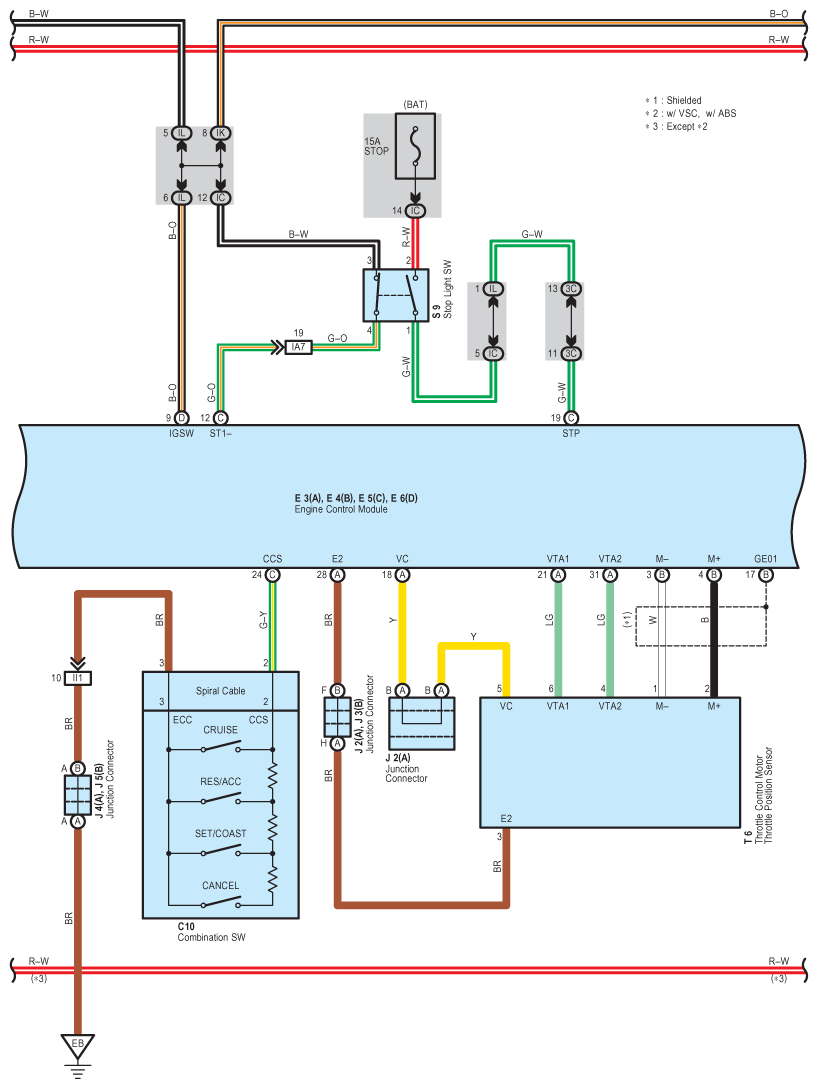

Fig 1: Cruise Control System (For 1ZZ-FE) Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

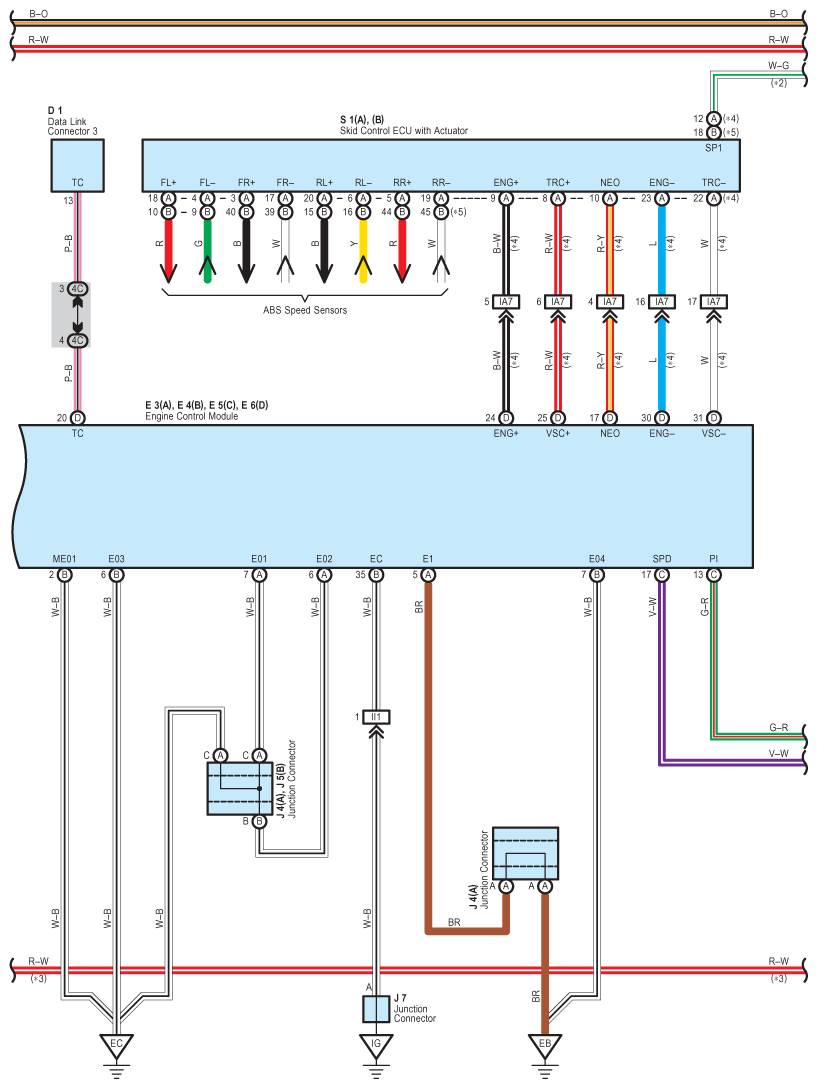

Fig 2: Cruise Control System (For 1ZZ-FE) Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

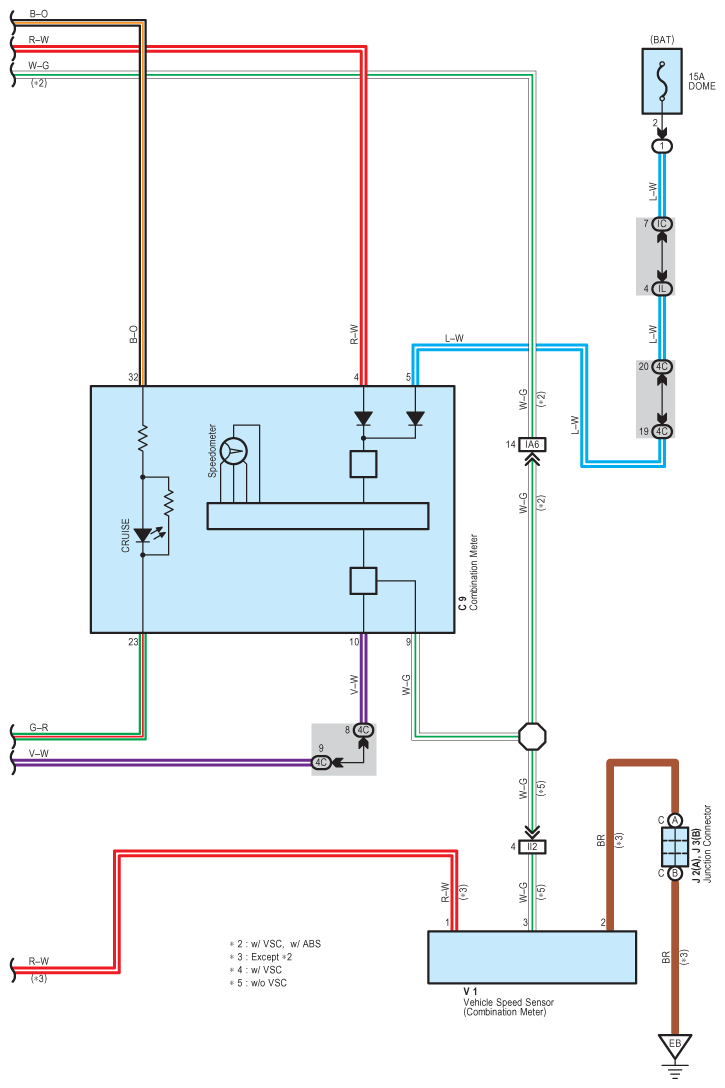

Fig 3: Cruise Control System (For 1ZZ-FE) Wiring Diagram (3 Of 4)

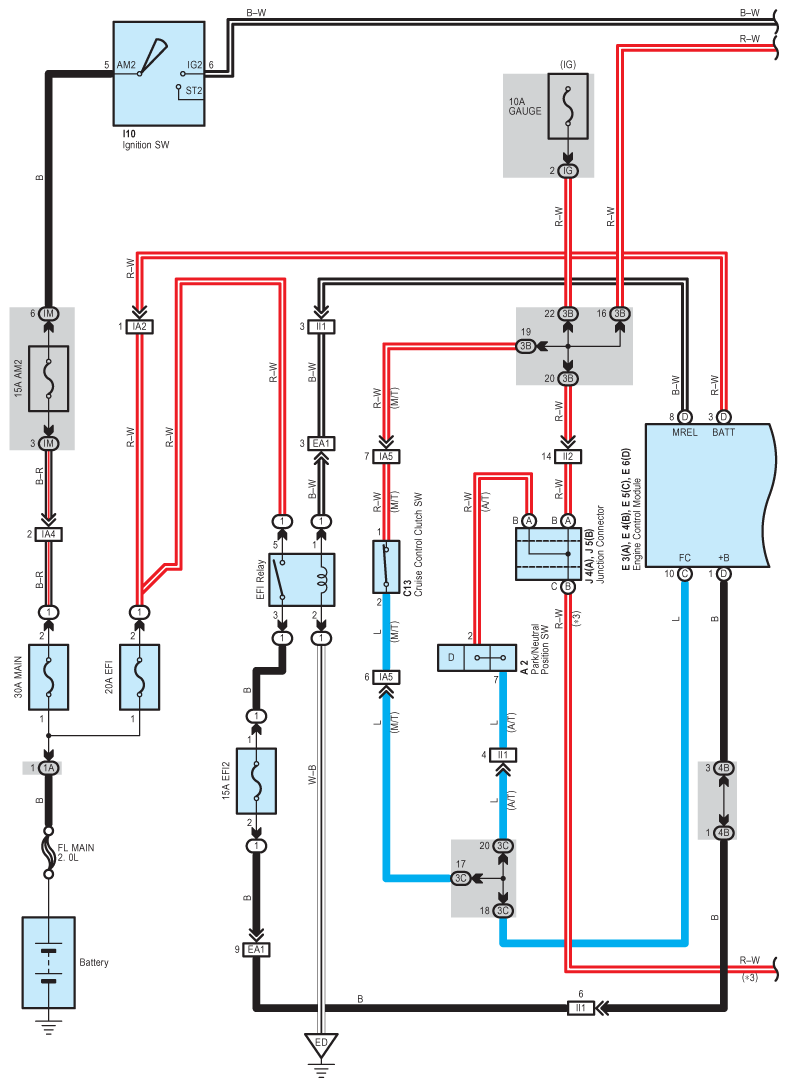

Fig 4: Cruise Control System (For 1ZZ-FE) Wiring Diagram (4 Of 4)
