ABS and Tire Pressure Warning System without VSC: Notes

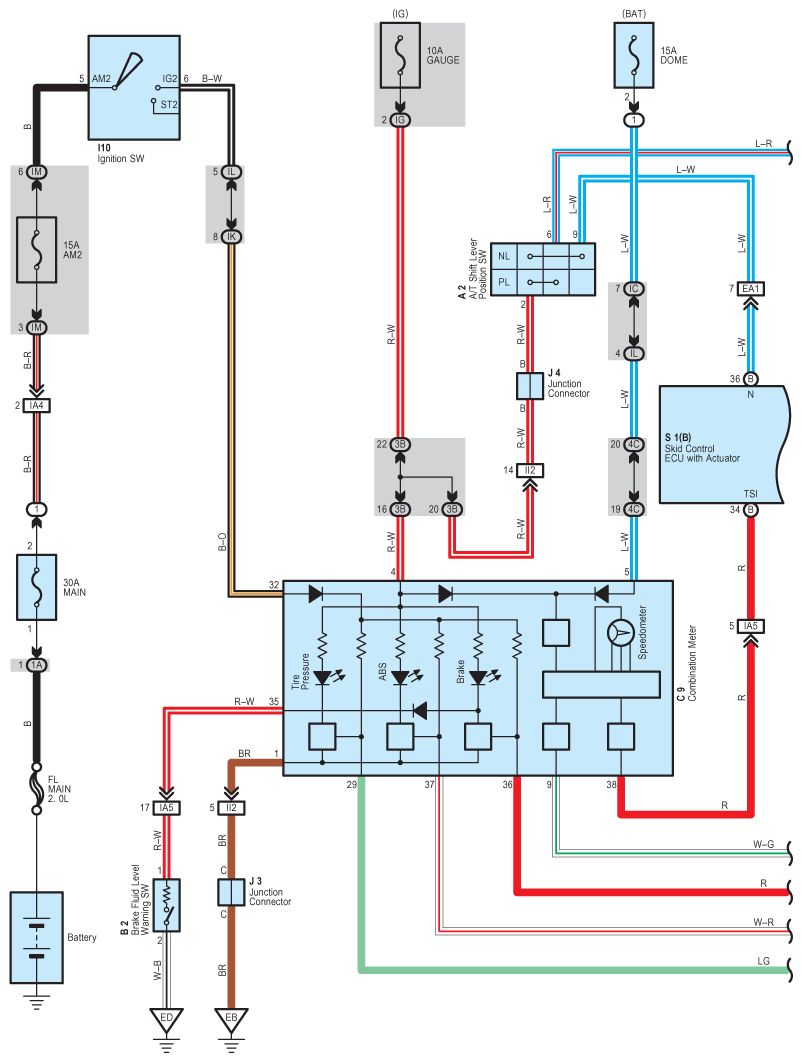

Fig 1: ABS And Tire Pressure Warning System (Without VSC System) Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

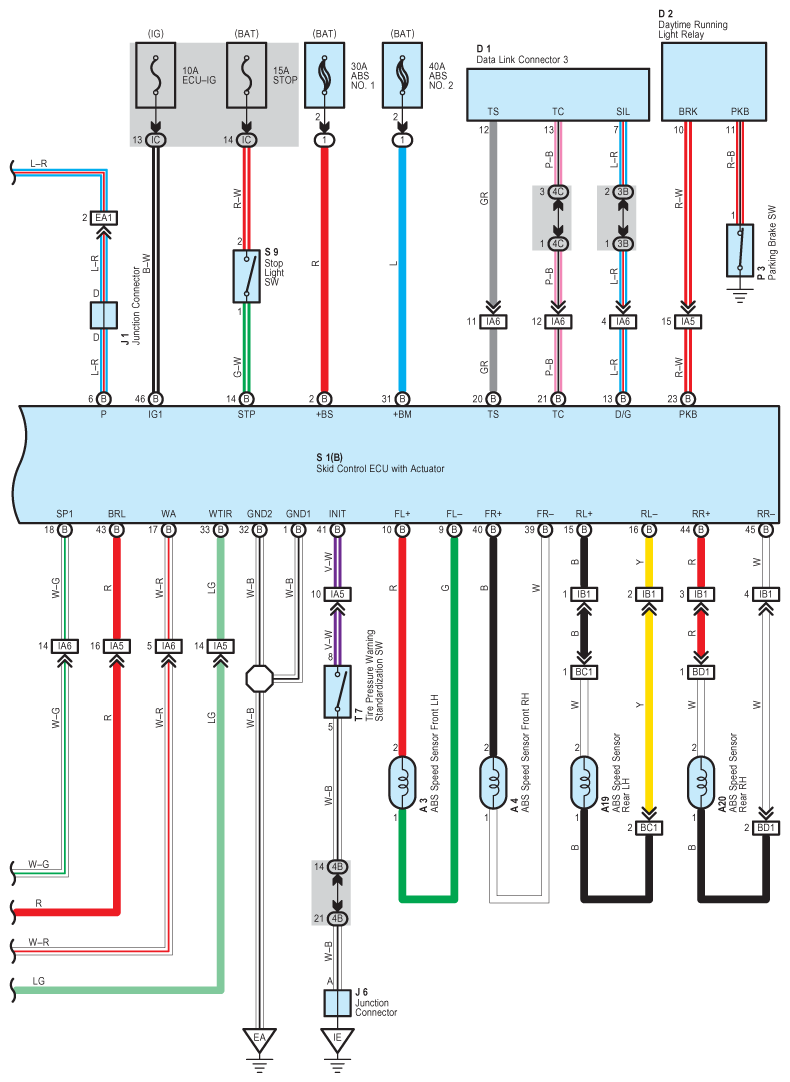

Fig 2: ABS And Tire Pressure Warning System (Without VSC System) Wiring Diagram (2 Of 2)
