Camshaft Position Sensor: Installation

INSTALL CAMSHAFT POSITION SENSOR
1. Apply a light coat of engine oil to a new O-ring. Install the O-ring onto the sensor.
2. Install the sensor with the bolt.
  Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)
INSTALL AIR CLEANER ASSEMBLY (See INSTALLATION )

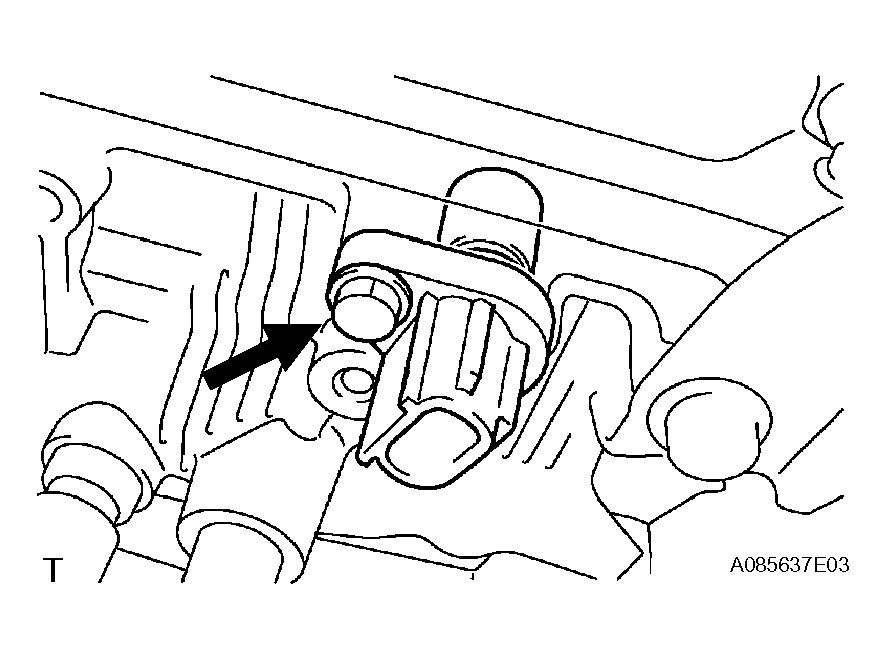

Fig 1: Installing Sensor With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
