Crankshaft Position Sensor: Installation

  1. INSTALL CRANKSHAFT POSITION SENSOR
    1. Install the sensor and clamp with the bolt.

      Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)

    2. Connect the sensor connector.
  2. INSTALL FRONT FENDER APRON SEAL RH
    1. Install the clip, 2 bolts and apron seal.
  3. INSTALL ENGINE UNDER COVER NO.1
    1. Install the 6 screws, 2 clips and under cover.

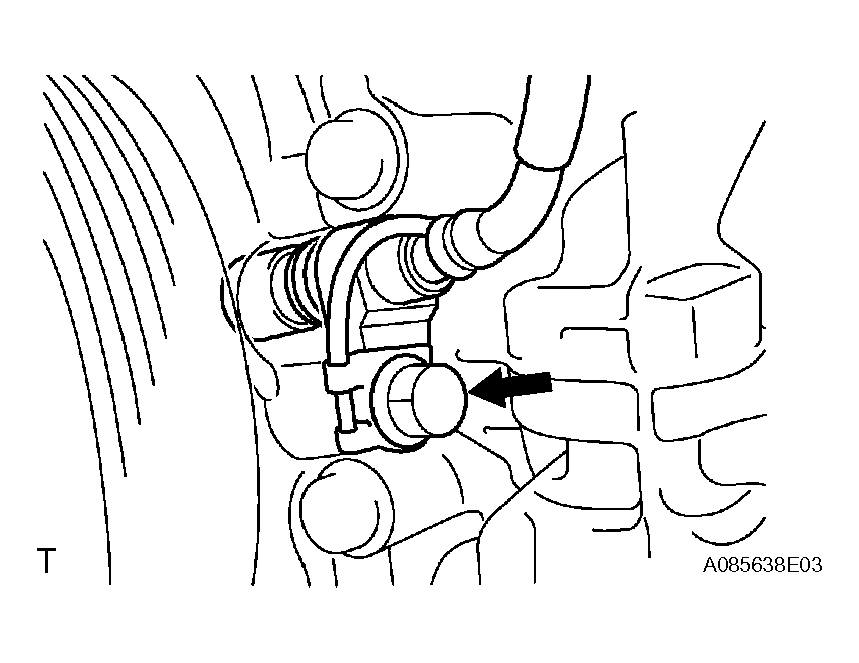

      Fig 1: Installing Crankshaft Position Sensor
      G04424188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
