Toyota
›
2006
›
Highlander Base, 2.4 D, AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System (2AZ-FE) (Except Hybrid)
›
SFI System
›
System Diagram
System Diagram
The engine control system is controlled by the ECM based on signals from various sensors.

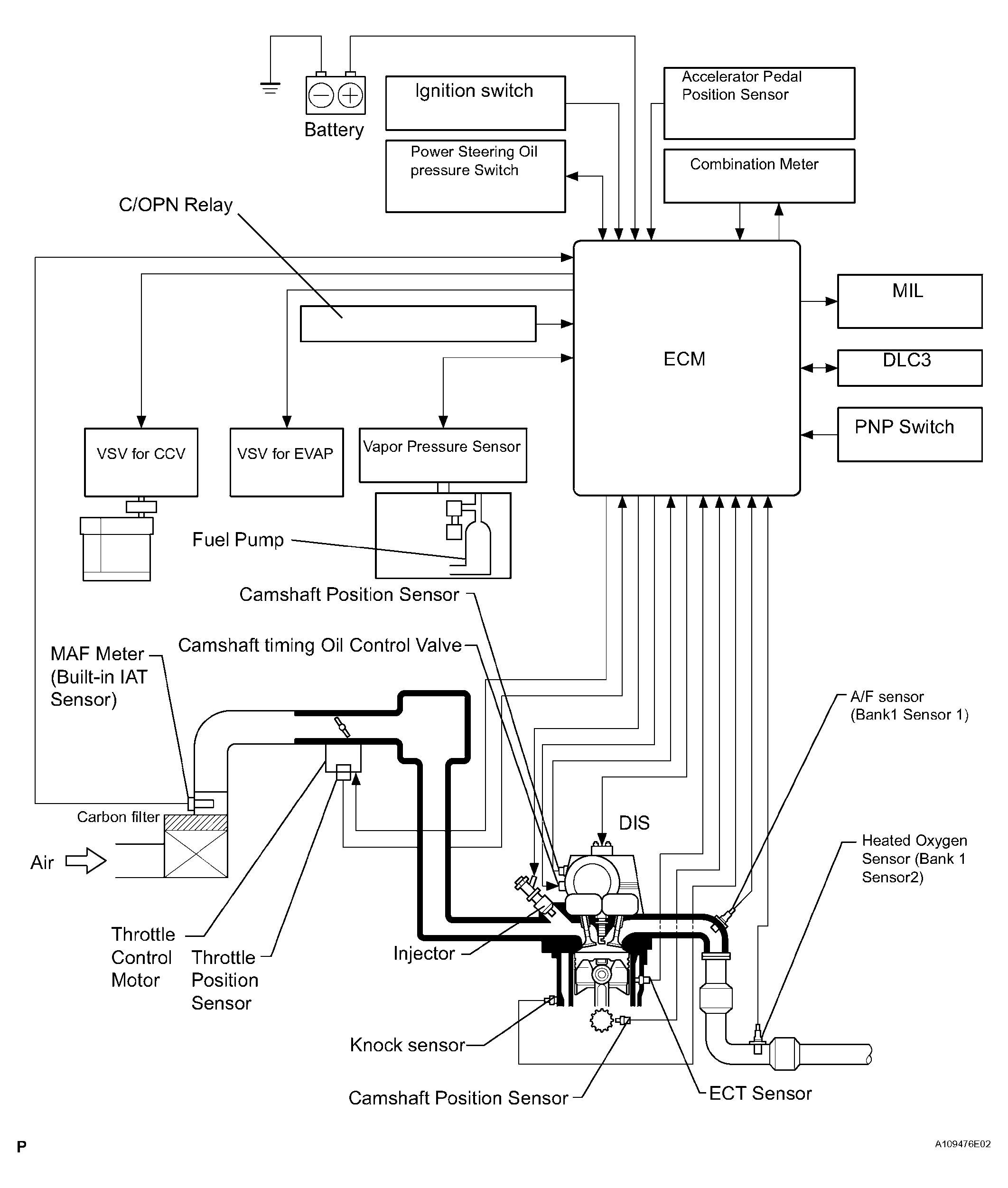

Fig 1: SFI System Diagram
