Engine Control System (3MZ-FE) (Hybrid)
›
Crankshaft Position Sensor
›
Components
Crankshaft Position Sensor: Components

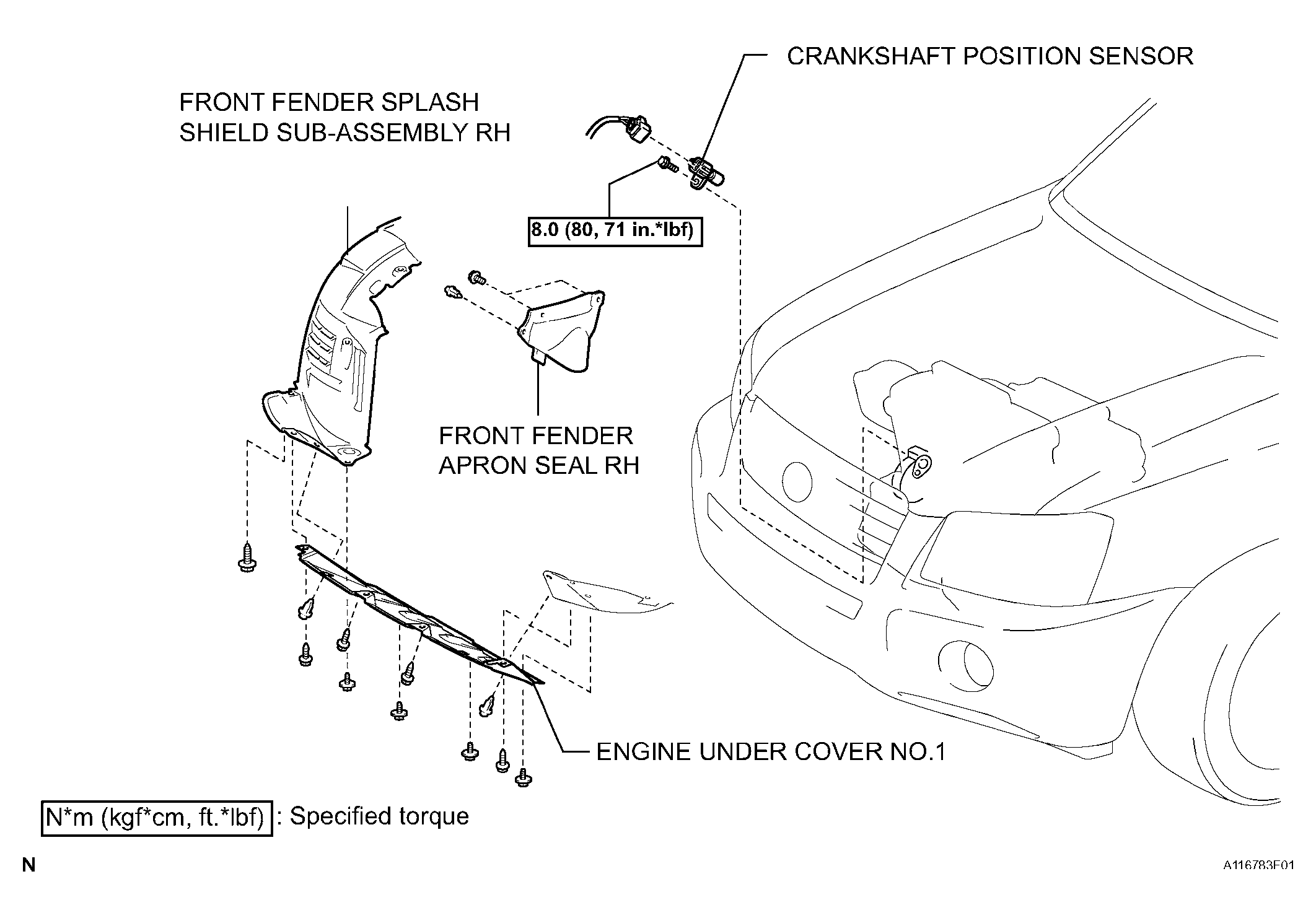

Fig 1: Identifying Crankshaft Position Sensor Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
