Accelerator Pedal Rod: Installation

INSTALL ACCELERATOR PEDAL ROD ASSEMBLY
1. Install the pedal rod with the 2 bolts.
  Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)
2. Connect the accelerator pedal position sensor connector.

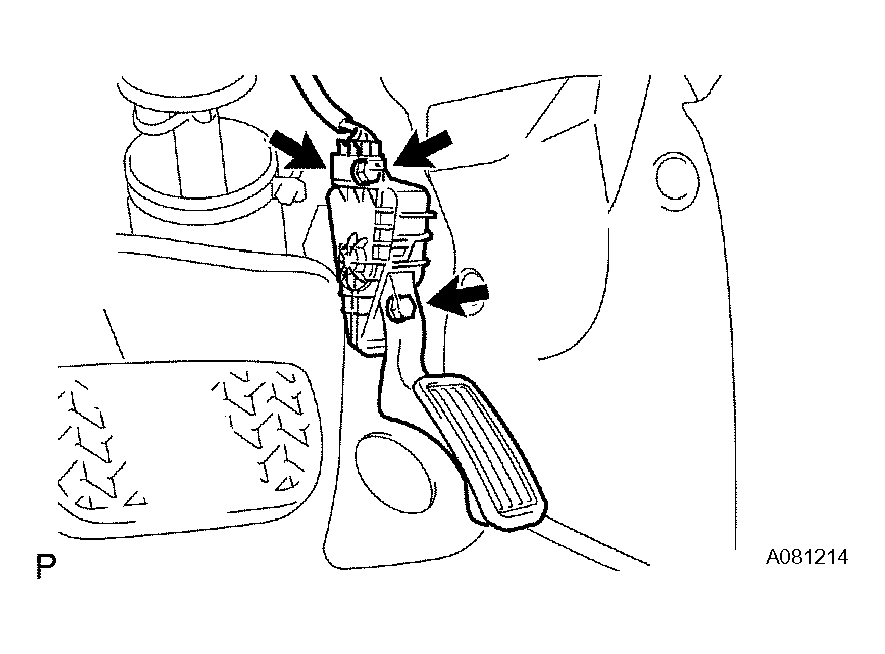

  Fig 1: Installing Pedal Rod With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
