Crankshaft Position Sensor: Removal

HINT:

A bolt without a torque specification is shown in the standard bolt chart (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE ENGINE UNDER COVER NO.1
   1. Remove the 6 screws, 2 clips and under cover.

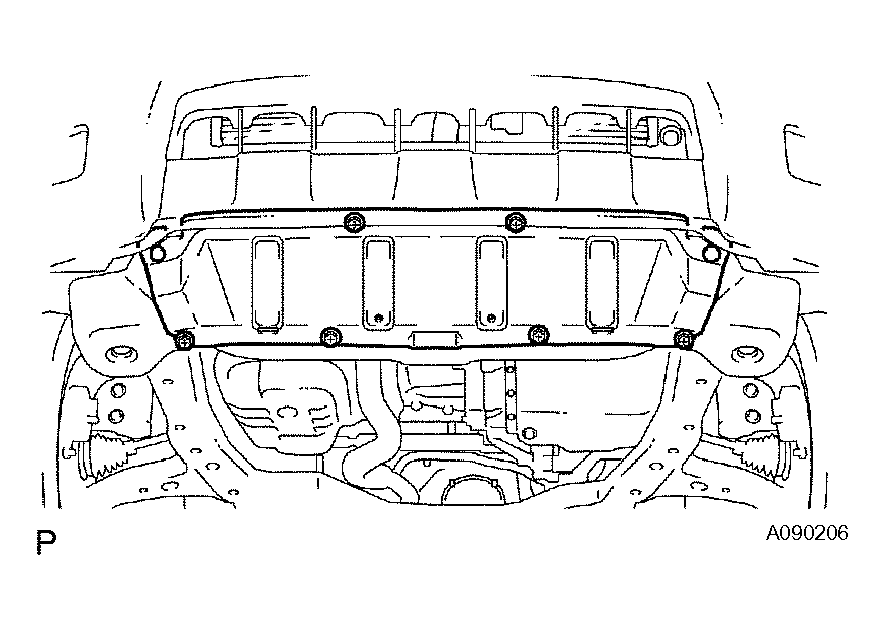

      Fig 1: Removing Screws, Clips And Under Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE FRONT FENDER APRON SEAL RH
   1. Remove the clip, 2 bolts and apron seal.
      Fig 2: Removing Clip, Bolts And Apron Seal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE CRANKSHAFT POSITION SENSOR
   1. Disconnect the sensor connector.
   2. Remove the bolt and sensor.

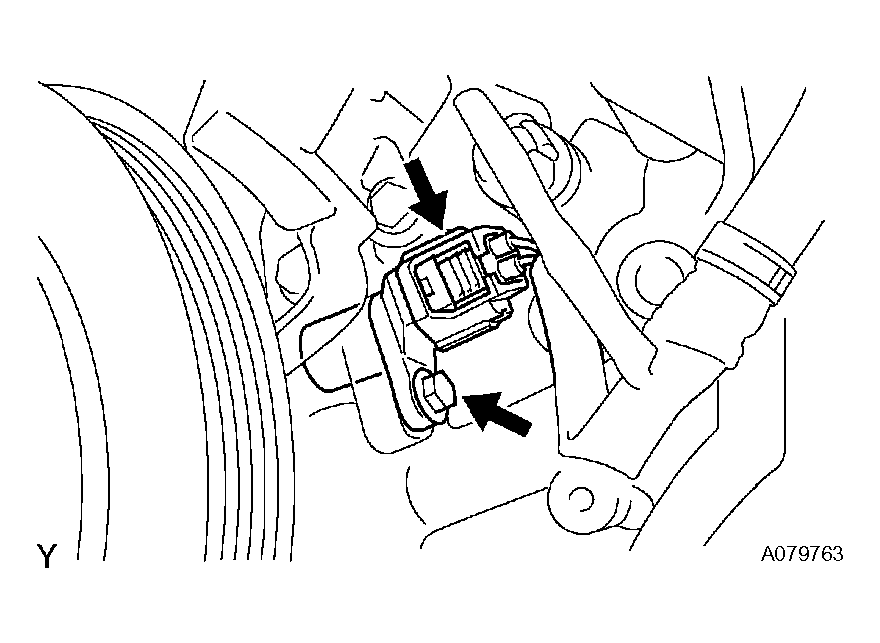

      Fig 3: Removing Bolt And Sensor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
