ACIS Control Circuit: Wiring Diagram

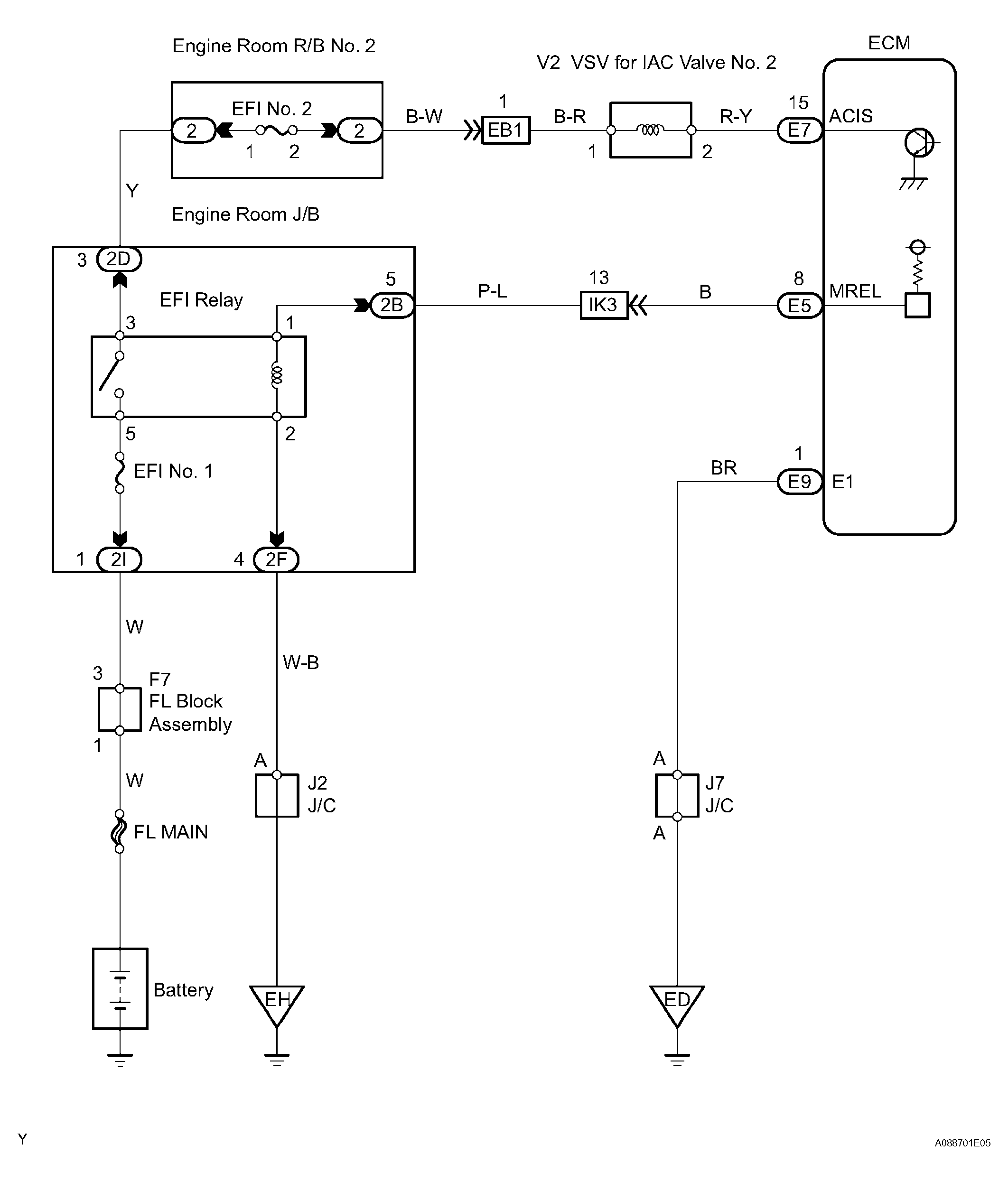

Fig 1: Engine Room J/B - Wiring Diagram
G04427377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
