DTC B1231: Jam Protection Limit Switch Circuit on Driver Door: Wiring Diagram

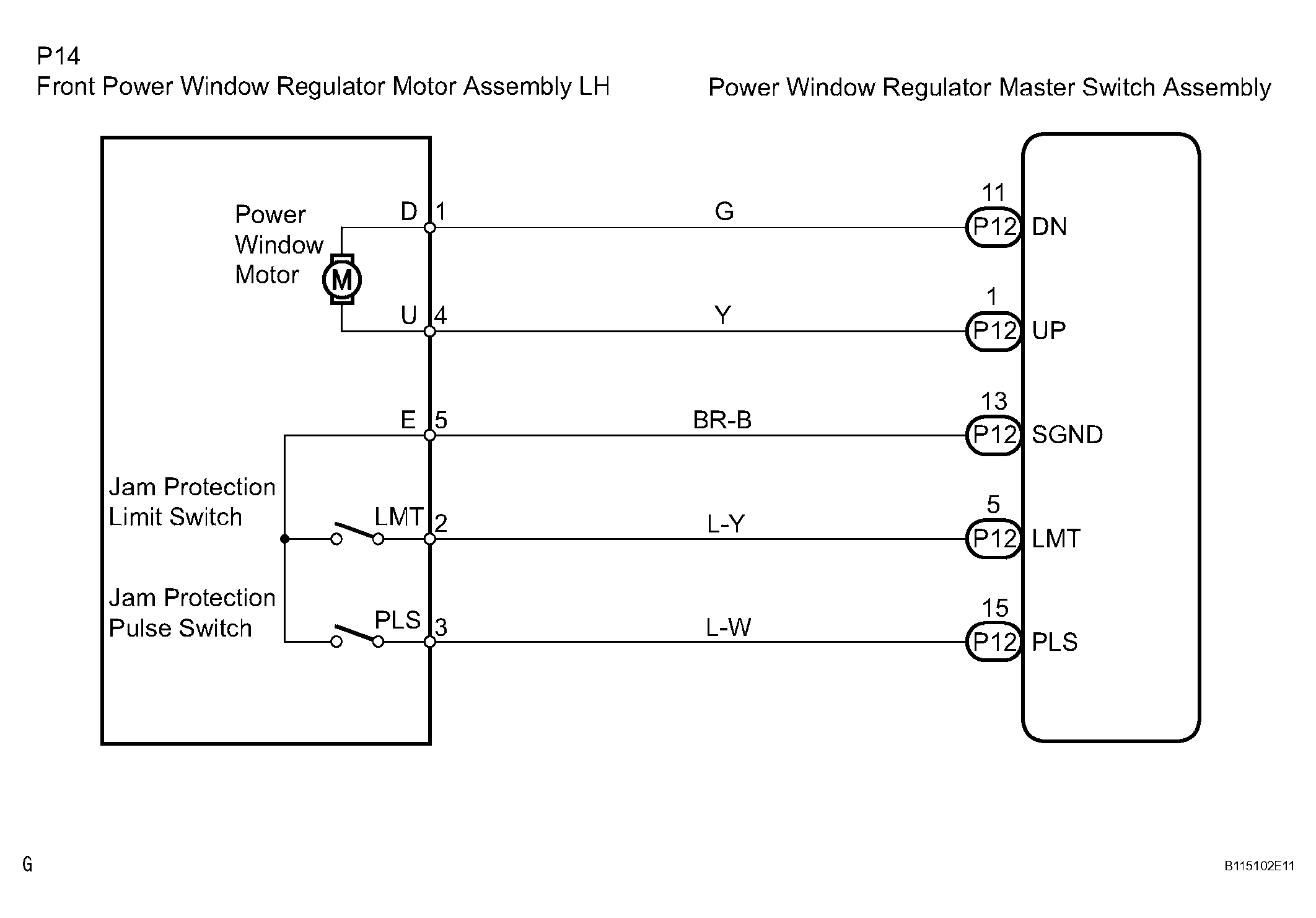

Fig 1: Jam Protection Limit Switch Circuit On Driver Door Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
