Front Passenger Side Jam Protection Limit/Pulse Switch Circuit: Wiring Diagram

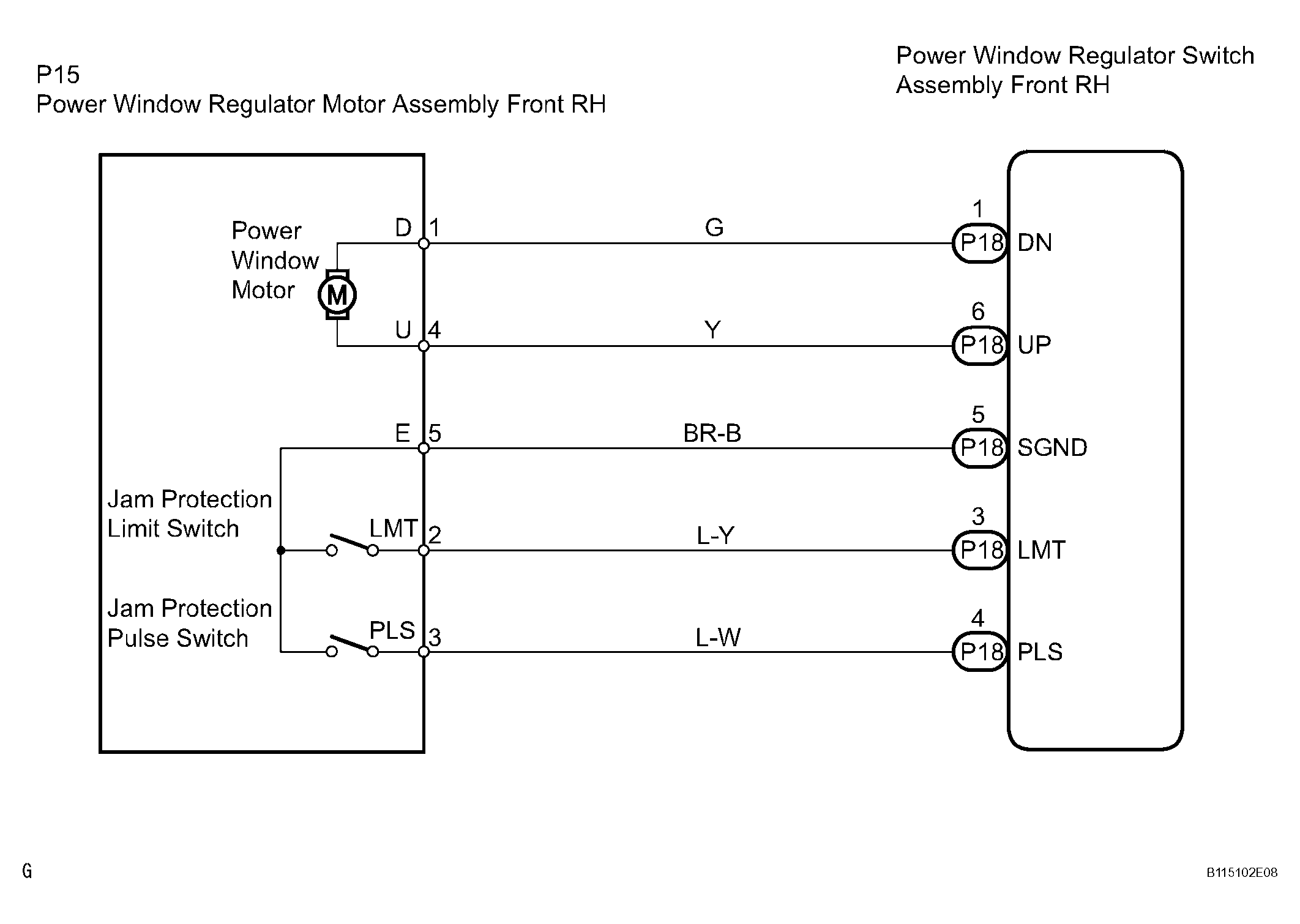

Fig 1: Front Passenger Side Jam Protection Limit/Pulse Switch Circuit Wiring Diagram
G04443750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
