Auto Antenna: Notes

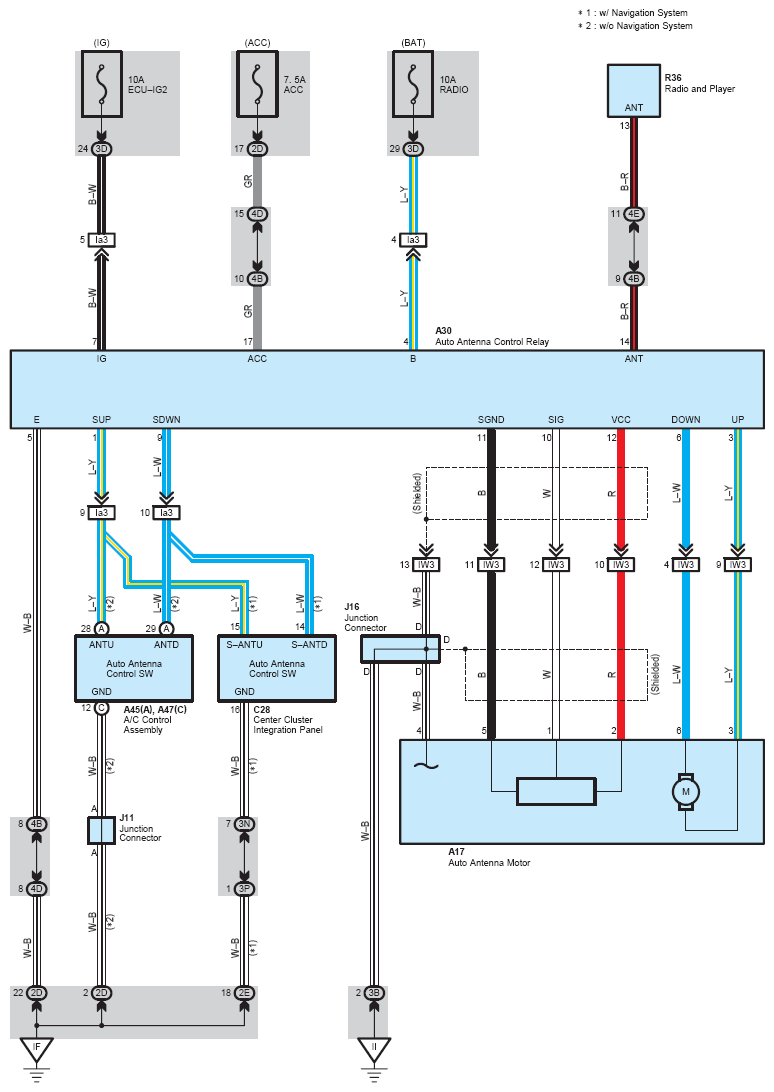

Fig 1: Auto Antenna System Wiring Diagram
G08794046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
