OEM System Circuits: Charging: Notes

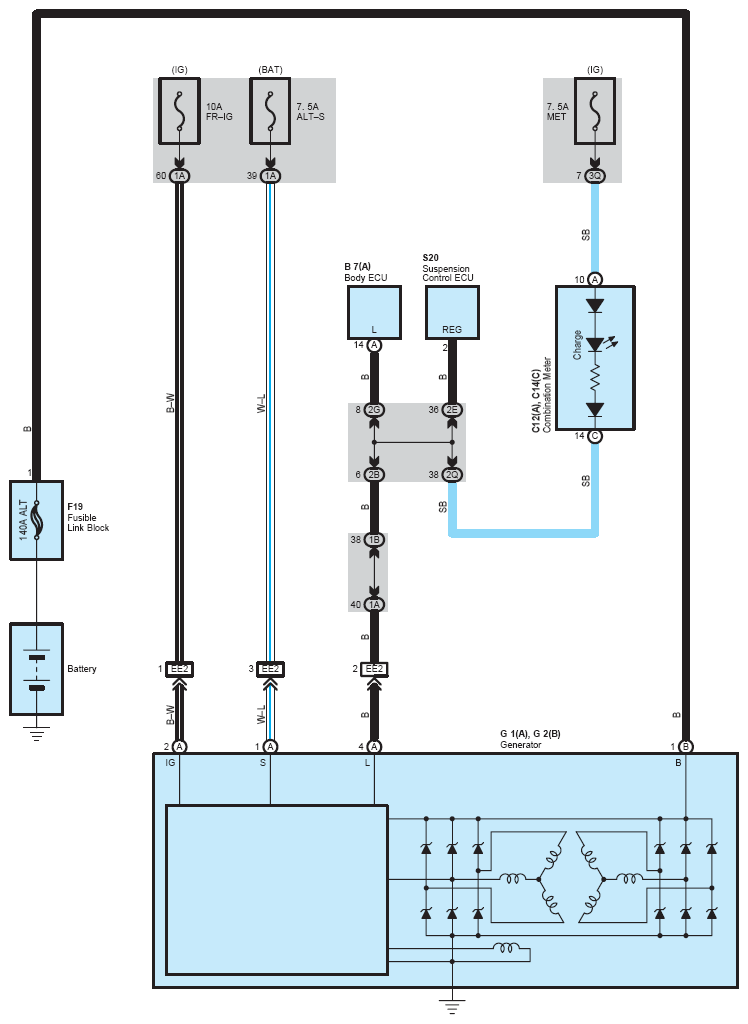

Fig 1: Charging System Wiring Diagram
G08793899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
