Mirror Heater: Notes

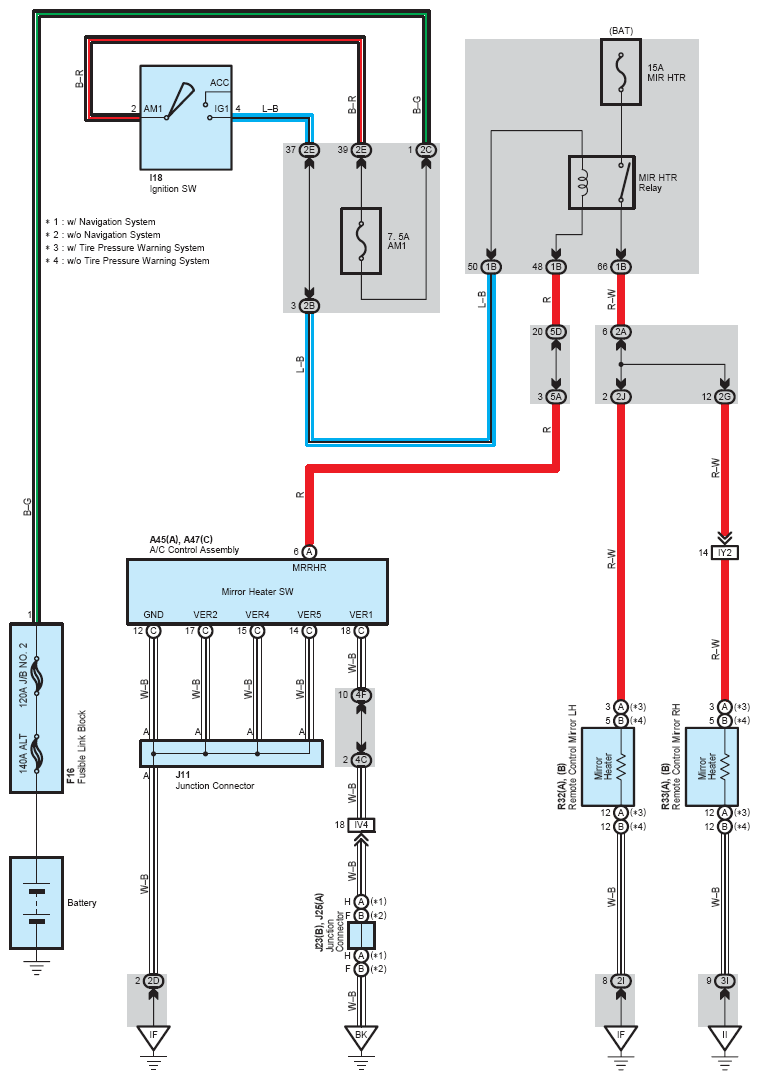

Fig 1: Mirror Heater System Wiring Diagram
G08794039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
