Moon Roof: Notes

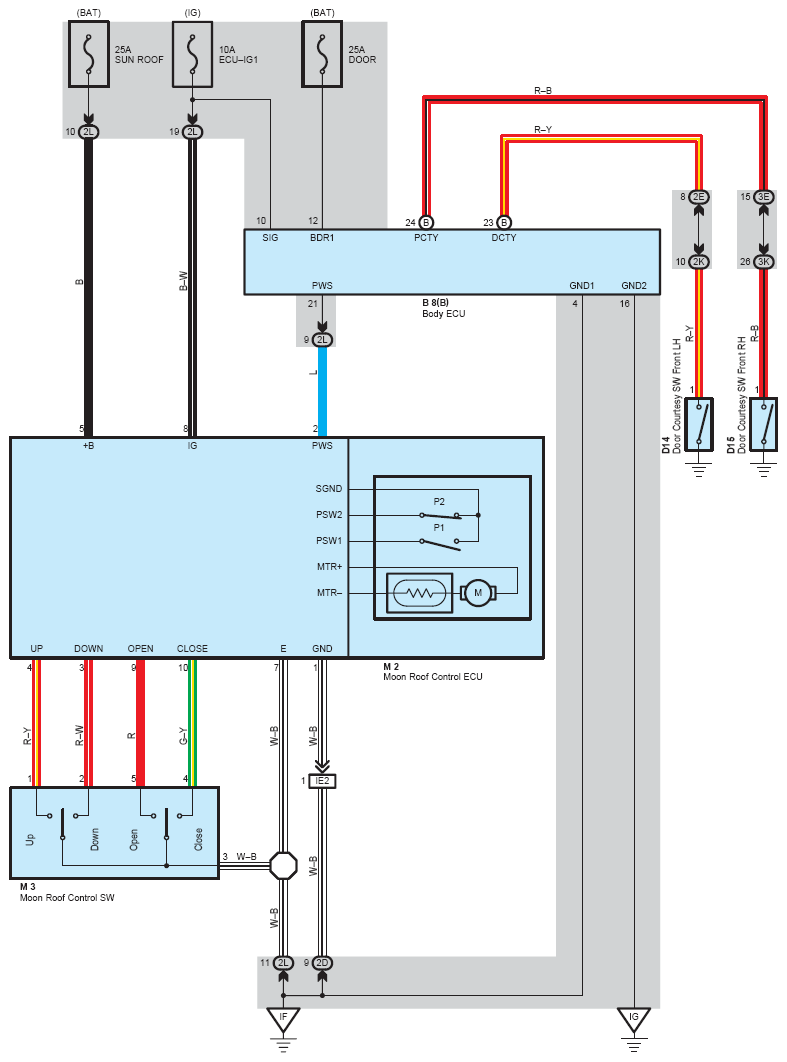

Fig 1: Moon Roof System Wiring Diagram
G08794006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
