Multi-Display without Navigation System
›
Notes
Multi-Display without Navigation System: Notes

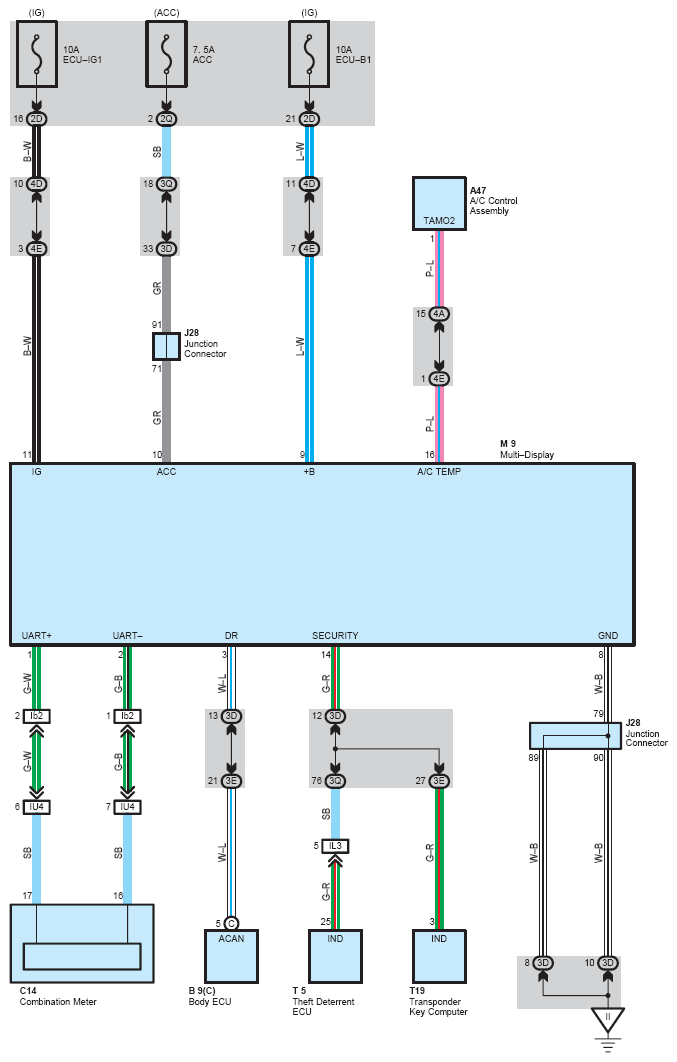

Fig 1: Multi-Display (Without Navigation) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
